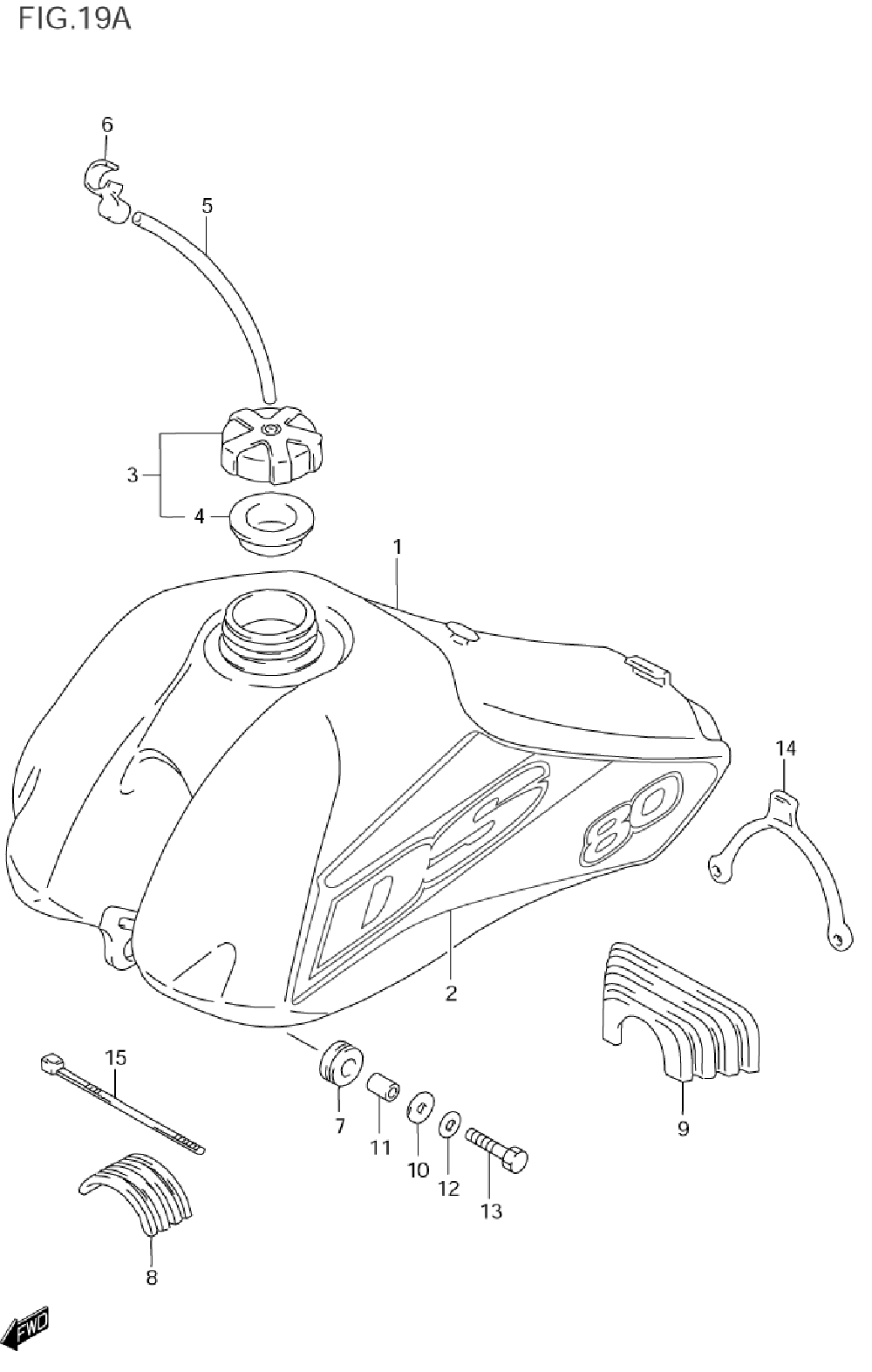

FUEL TANK для Suzuki DS80Y - 2000 года выпуска
-
№АртикулНазвание
-
144110-03400-25Y TANK ASSY, FUEL (YELLOW)TANK ASSY, FUEL (YELLOW)
-
268120-03470-N8J EMBLEM, FUEL TANKEMBLEM, FUEL TANK
-
344200-40821 CAP, FUEL TANKCAP, FUEL TANK
-
444248-05210 ...GASKET, FUEL TANK CAP...GASKET, FUEL TANK CAP
-
509352-50823-600 HOSE (L:600->150)HOSE (L:600->150)
-
644486-03400 CLAMPCLAMP
-
709320-10025 CUSHION, FRONTCUSHION, FRONT
-
844541-14300 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
944542-03400 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1009160-06501 WASHERWASHER
-
1109180-06292 SPACERSPACER
-
1208321-01063 LOCK WASHERLOCK WASHER
-
1301500-06253 BOLTBOLT
-
1444561-03400 BAND, REARBAND, REAR
-
1509407-25402 CLAMPCLAMP
