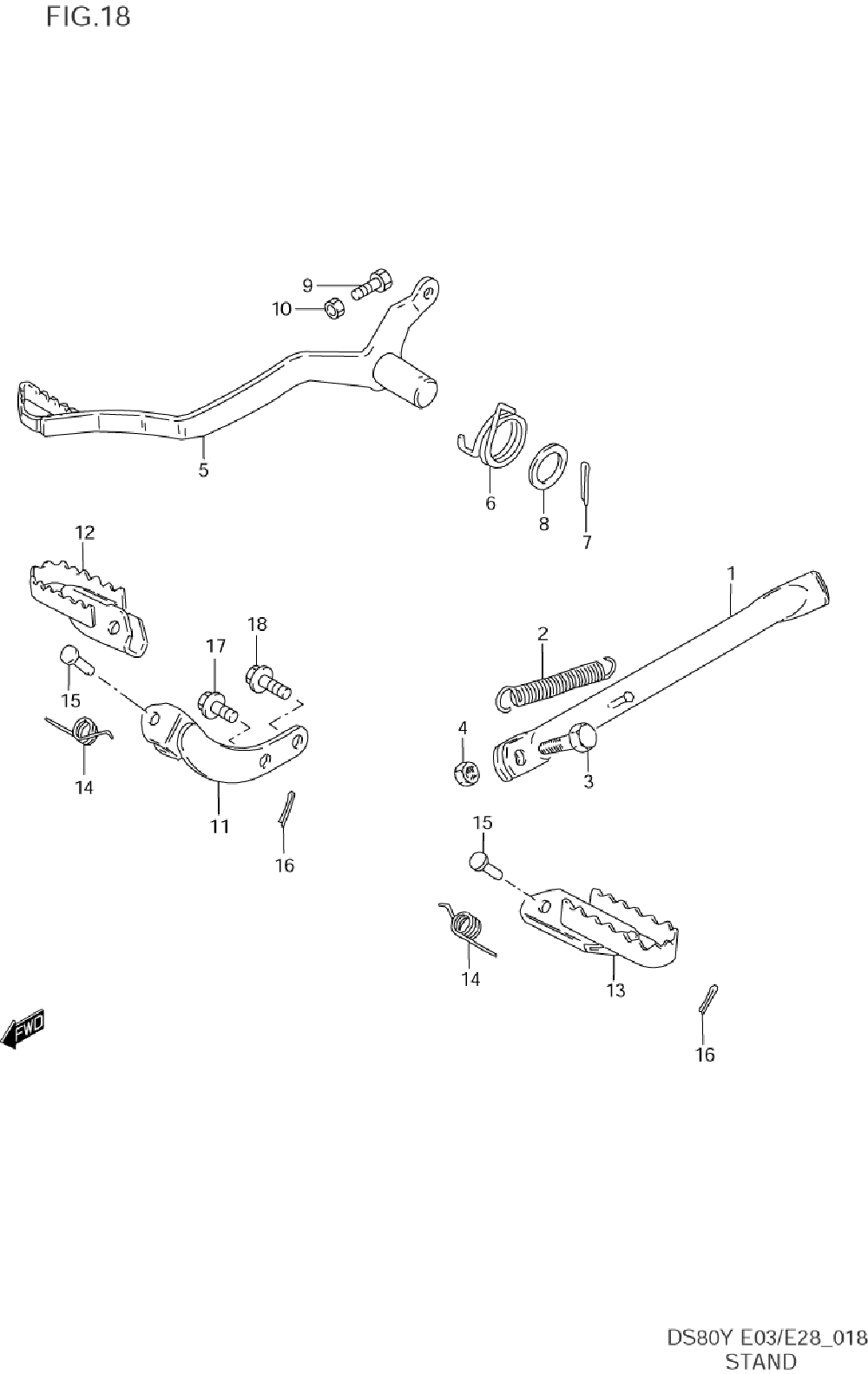

BRAKE PEDAL W/ STAND AND FOOTREST для Suzuki DS80Y - 2000 года выпуска`
-
№АртикулНазвание
-
142310-03400-019 STAND, PROP (BLACK)STAND, PROP (BLACK)
-
209443-14017 SPRINGSPRING
-
309100-10287 BOLTBOLT
-
409140-10043 NUTNUT
-
543110-03401 PEDAL, BRAKEPEDAL, BRAKE
-
609448-25007 SPRINGSPRING
-
704111-30308 COTTER PINCOTTER PIN
-
809160-15002 WASHERWASHER
-
909100-06009 BOLTBOLT
-
1008310-00063 NUTNUT
-
1143510-03401-019 HOLDER, FOOTREST (FRONT/BLACK)HOLDER, FOOTREST (FRONT/BLACK)
-
1243550-46000-019 FOOTREST (FRONT/RIGHT/BLACK)FOOTREST (FRONT/RIGHT/BLACK)
-
1343560-46000-019 FOOTREST (FRONT/LEFT/BLACK)FOOTREST (FRONT/LEFT/BLACK)
-
1409448-14012 SPRINGSPRING
-
1509200-08002 PINPIN
-
1604111-20158 COTTER PINCOTTER PIN
-
1701550-10253 BOLT, NO.1BOLT, NO.1
-
1809103-08505 BOLT, NO.2BOLT, NO.2
