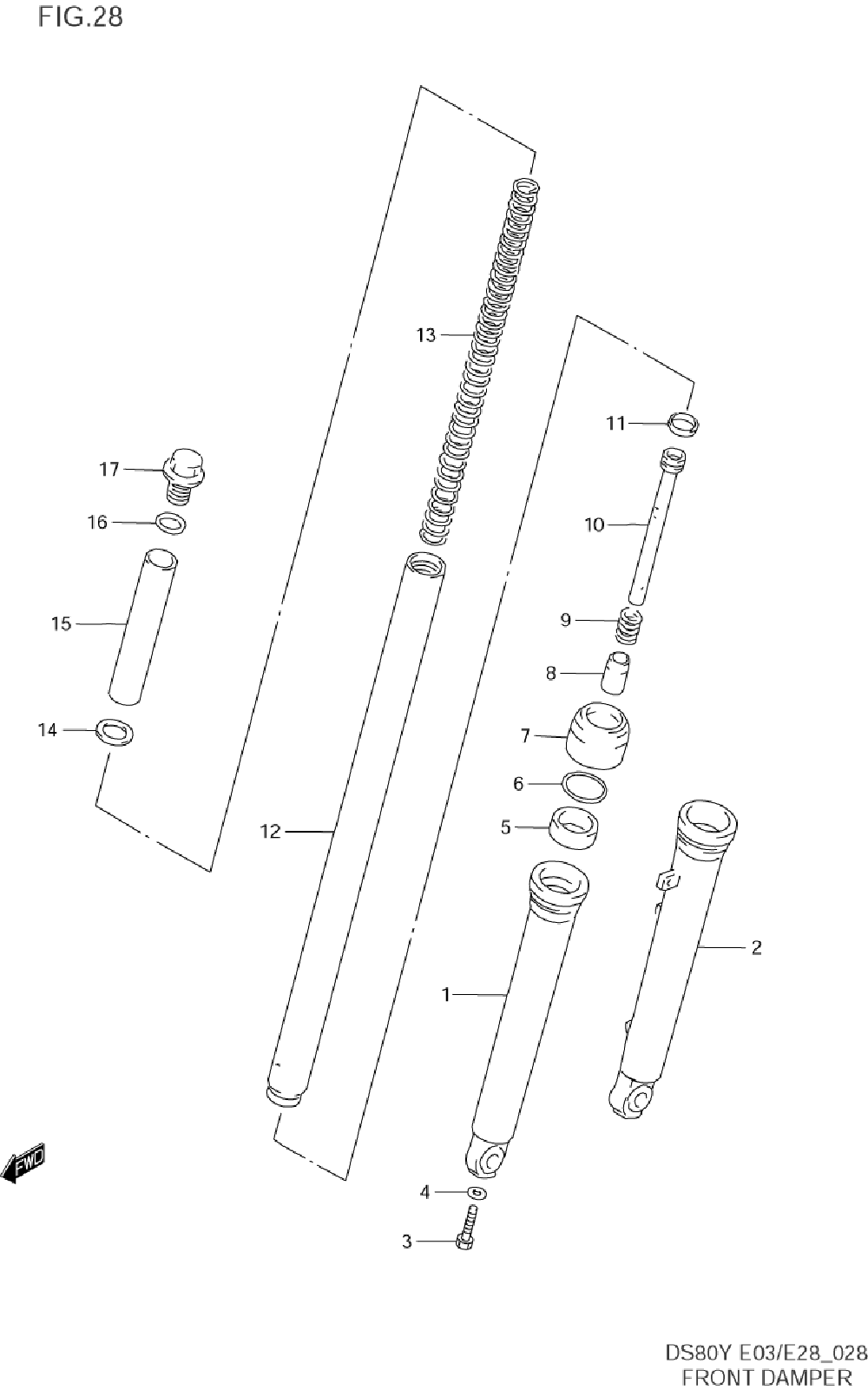

SUSPENSION - FRONT FORK для Suzuki DS80Y - 2000 года выпуска
-
№АртикулНазвание
-
51103-03431 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
51104-03431 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151131-03431 ...TUBE (OUTER RIGHT)...TUBE (OUTER RIGHT)
-
251141-03431 ...TUBE (OUTER LEFT)...TUBE (OUTER LEFT)
-
351147-48130 ...BOLT...BOLT
-
451148-36011 ...GASKET...GASKET
-
551153-03400 ...OIL SEAL...OIL SEAL
-
651156-48130 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
751571-46100 ...DUST SEAL...DUST SEAL
-
851195-46684 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
951177-46100 ...SPRING...SPRING
-
1051146-03400 ...CYLINDER...CYLINDER
-
1151196-46100 ...RING, PISTON...RING, PISTON
-
1251110-46450 ...TUBE (INNER)...TUBE (INNER)
-
1351171-03400 ...SPRING...SPRING
-
1451192-46100 ...SEAT, SPRING...SEAT, SPRING
-
1551176-46100 ...SPACER, SPRING...SPACER, SPRING
-
1609280-18004 ...O RING...O RING
-
1751351-46190 ...BOLT...BOLT
