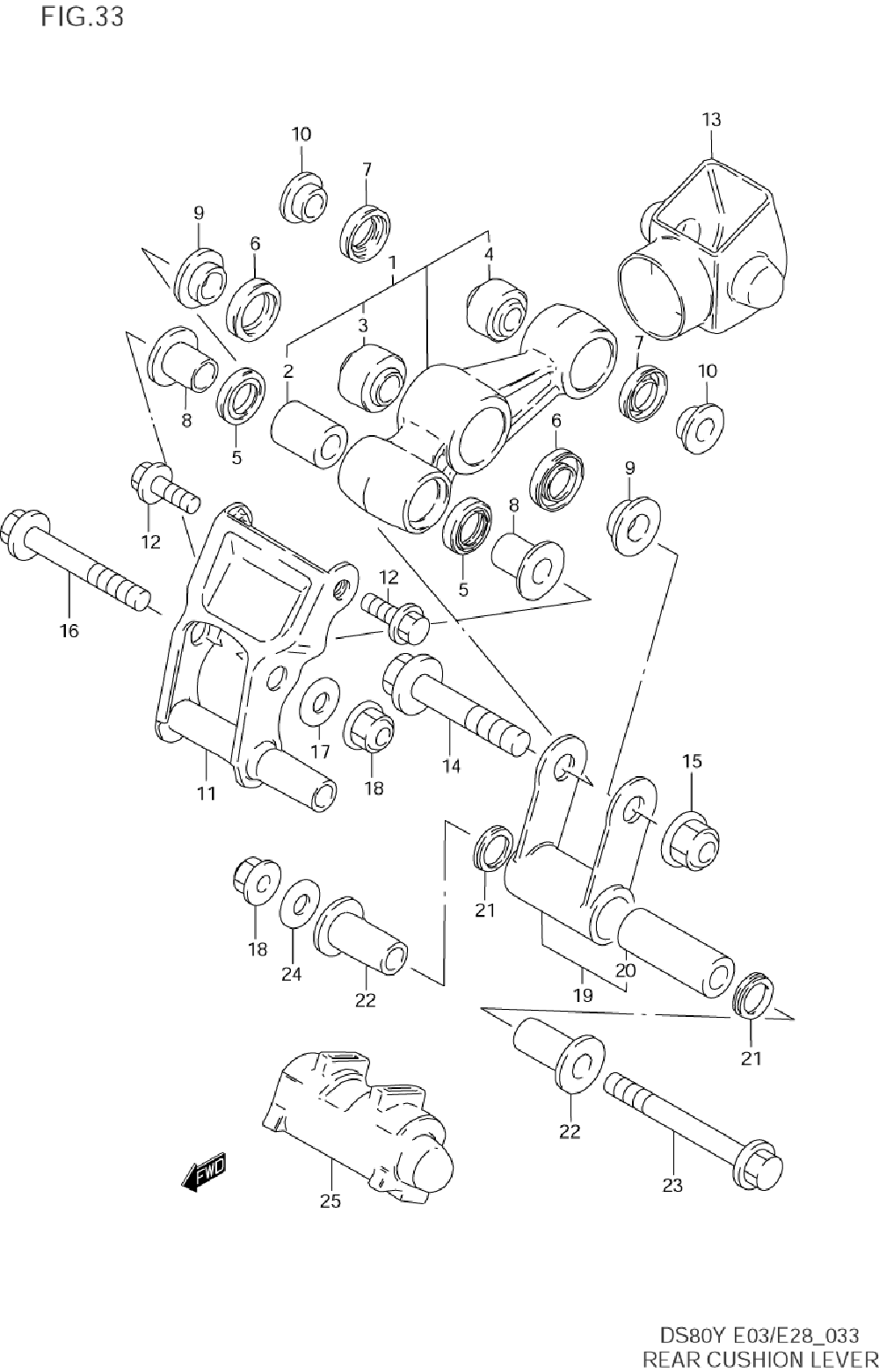

SUSPENSION - CUSHION LEVER для Suzuki DS80Y - 2000 года выпуска`
-
№АртикулНазвание
-
162600-03812 LEVER SET, CUSHIONLEVER SET, CUSHION
-
262682-04701 ...BUSH (FRONT) (15X20X31)...BUSH (FRONT) (15X20X31)
-
309269-12002 ...BEARING (CENTER) (12X26X16)...BEARING (CENTER) (12X26X16)
-
409269-10003 ...BEARING (REAR) (10X24X14.5)...BEARING (REAR) (10X24X14.5)
-
562683-13600 DUST SEAL (FRONT)DUST SEAL (FRONT)
-
662683-04700 DUST SEAL (CENTER)DUST SEAL (CENTER)
-
762683-43400 DUST SEAL (REAR)DUST SEAL (REAR)
-
862684-03400 SPACER (FRONT)SPACER (FRONT)
-
962684-04701 SPACER (CENTER)SPACER (CENTER)
-
1062684-43401 SPACER (REAR)SPACER (REAR)
-
1162690-03400 HOLDER, CUSHION LEVERHOLDER, CUSHION LEVER
-
1262313-04701 BOLT, HOLDER (8X16)BOLT, HOLDER (8X16)
-
1362689-03411 BOOT, LEVER REARBOOT, LEVER REAR
-
1409103-12007 BOLT (CENTER) (12X55)BOLT (CENTER) (12X55)
-
1508319-31128 NUTNUT
-
1609103-10058 BOLT (FRONT) (10X65)BOLT (FRONT) (10X65)
-
1709160-10119 WASHER (FRONT)WASHER (FRONT)
-
1808319-31107 NUTNUT
-
1962600-03820 ROD, CUSHION LEVERROD, CUSHION LEVER
-
2062642-03400 ...BUSH (LOWER) (15X20X54)...BUSH (LOWER) (15X20X54)
-
2162683-20400 DUST SEAL (LOWER)DUST SEAL (LOWER)
-
2262316-03400 SPACER (LOWER)SPACER (LOWER)
-
2362315-03400 BOLT (LOWER) (10X69)BOLT (LOWER) (10X69)
-
2409160-10119 WASHERWASHER
-
2562689-03401 BOOT, ROD (LOWER)BOOT, ROD (LOWER)
