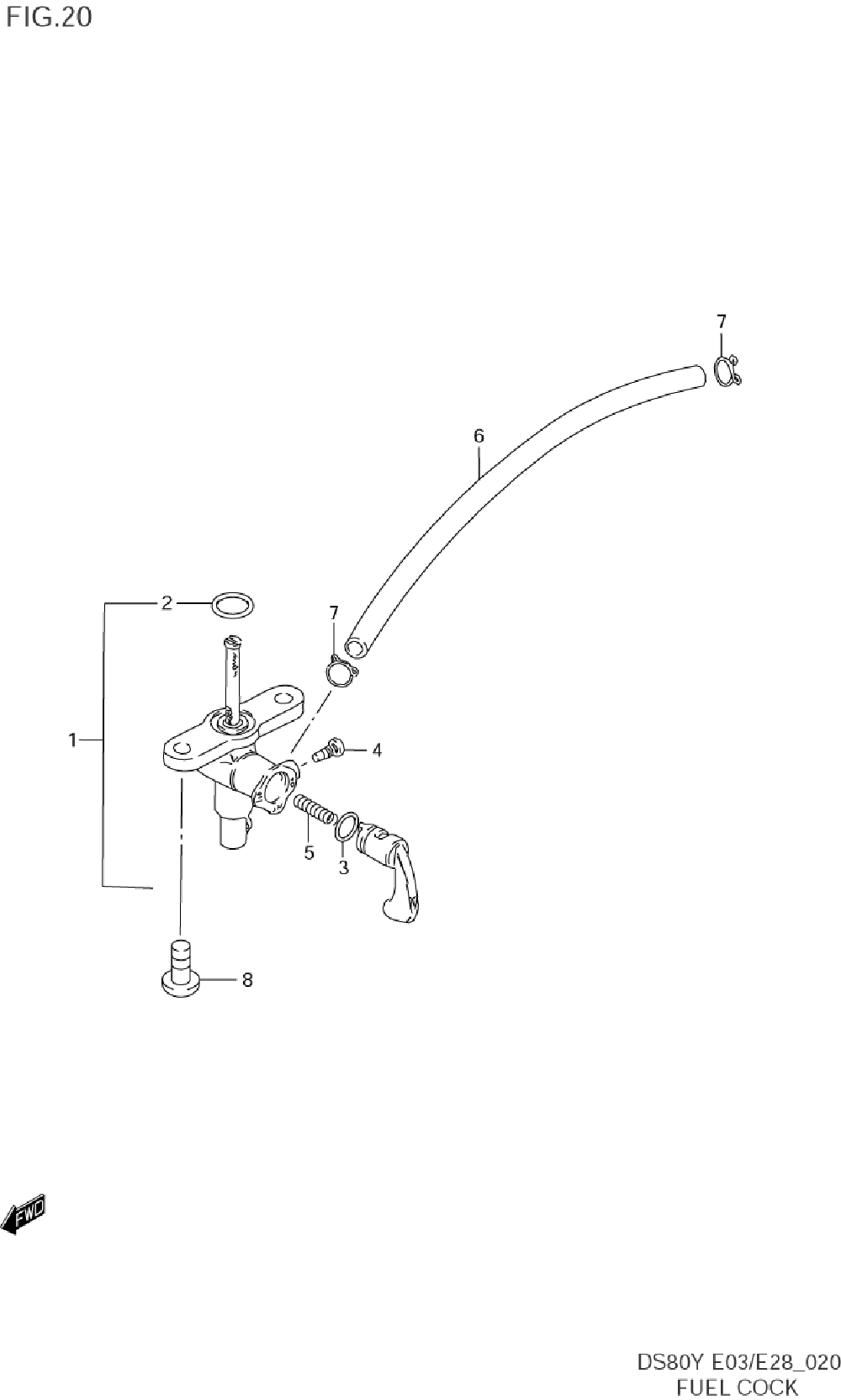

FUEL COCK для Suzuki DS80Y - 2000 года выпуска`
-
№АртикулНазвание
-
144300-03400 COCK ASSY, FUELCOCK ASSY, FUEL
-
244348-41370 ...O RING, JOINT...O RING, JOINT
-
344353-41370 ...O RING, LEVER...O RING, LEVER
-
444343-41370 ...SCREW...SCREW
-
5-244357-32470 ...SPRING...SPRING
-
609352-50823-600 HOSE, FUEL (L:600->180)HOSE, FUEL (L:600->180)
-
709401-08401 CLIPCLIP
-
802112-36163 SCREWSCREW
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE PEDAL W/ STAND AND FOOTREST
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTONS
- CYLINDER
- ELECTRICAL - WIRING HARNESS
- FENDER - REAR
- FRAME
- • FUEL COCK
- FUEL TANK
- GEAR SHIFTING
- HANDLEBAR - LEVERS
- HANDLEBAR W/ CABLES
- HEADLIGHT ASSY.
- HEADLIGHT COVER
- MAGNETO
- MUFFLER
- OIL PUMP
- OIL TANK
- OPTIONAL EQUIPMENT
- SEAT ASSY.
- SIDE COVER
- STARTER - KICK
- STEERING STEM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
