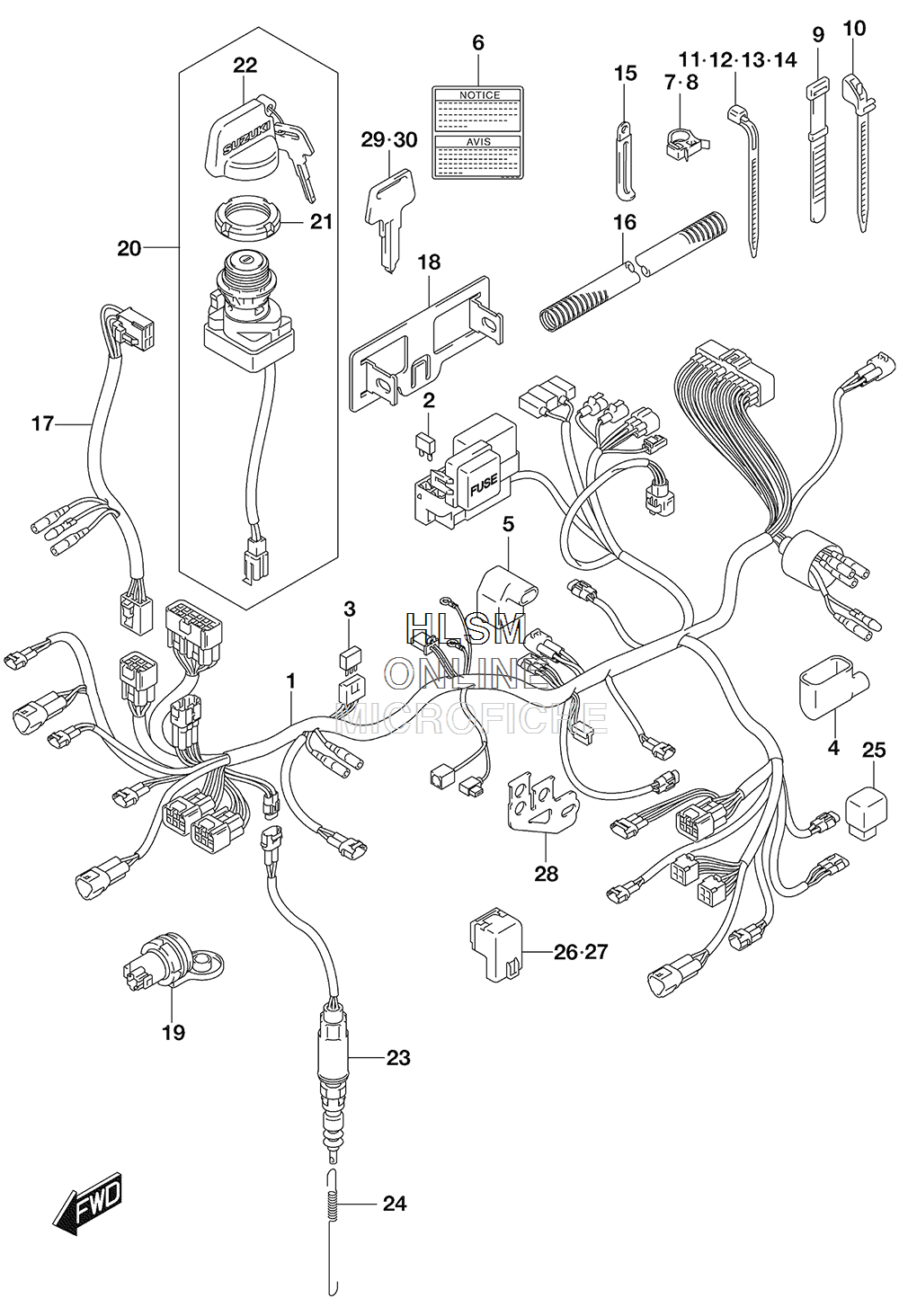

WIRING HARNESS (P28) для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска`
-
№АртикулНазвание
-
136610-27HH0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 FUSE (10A)FUSE (10A)
-
336611-38A00 DIODEDIODE
-
436618-25H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
536618-27H00 BOOT, CONNECTORBOOT, CONNECTOR
-
638852-03G20 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
709403-20403 CLAMPCLAMP
-
809403-30403 CLAMPCLAMP
-
909407-12402 CLAMP (L:120)CLAMP (L:120)
-
1009407-12407 CLAMPCLAMP
-
1109407-14403 CLAMP (L:125)CLAMP (L:125)
-
1209407-18402 CLAMP (L:165)CLAMP (L:165)
-
1309407-25401 CLAMP (L:235)CLAMP (L:235)
-
1409407-11401 CLAMP (L:95)CLAMP (L:95)
-
1509404-08205 CLAMP (L:45,T:0.6)CLAMP (L:45,T:0.6)
-
1636619-27H00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
1736855-27H00 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1836744-38F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1938850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
2037110-38F00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
2137112-24500 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
2237142-19B00 MASCOT, KEYMASCOT, KEY
-
2337740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2409443-06016 SPRINGSPRING
-
2538730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2638740-31G10 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2738740-31G10 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2838741-27H20 BRACKET, RELAYBRACKET, RELAY
-
2937146-19B00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
3037146-19B10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
