GASKET SET для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска

  • №
    Артикул
    Название
  • 1

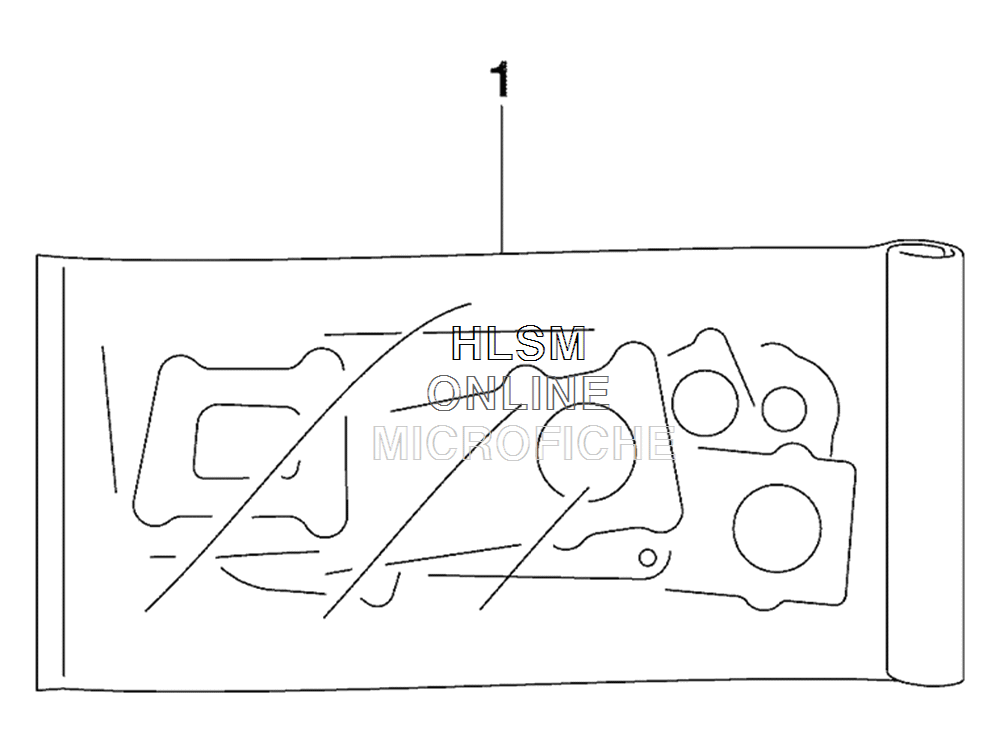

    11401-38830 GASKET SET (OPT)
    GASKET SET (OPT)
  • 2
    11141-38F00 GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
    GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
  • 3
    11177-14D01 O RING, INSPECTION CAP (NOT ILLUSTRATED)
    O RING, INSPECTION CAP (NOT ILLUSTRATED)
  • 4
    11241-38F00 GASKET, CYLINDER (NOT ILLUSTRATED)
    GASKET, CYLINDER (NOT ILLUSTRATED)
  • 5
    11482-38F10 GASKET, CLUTCH COVER (NOT ILLUSTRATED)
    GASKET, CLUTCH COVER (NOT ILLUSTRATED)
  • 6
    11483-38F10 GASKET, MAGNETO COVER (NOT ILLUSTRATED)
    GASKET, MAGNETO COVER (NOT ILLUSTRATED)
  • 7
    12837-14D00 GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
    GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
  • 8
    14181-18C00 GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
    GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
  • 9
    16528-24500 O RING, OIL STRAINER CAP (NOT ILLUSTRATED)
    O RING, OIL STRAINER CAP (NOT ILLUSTRATED)
