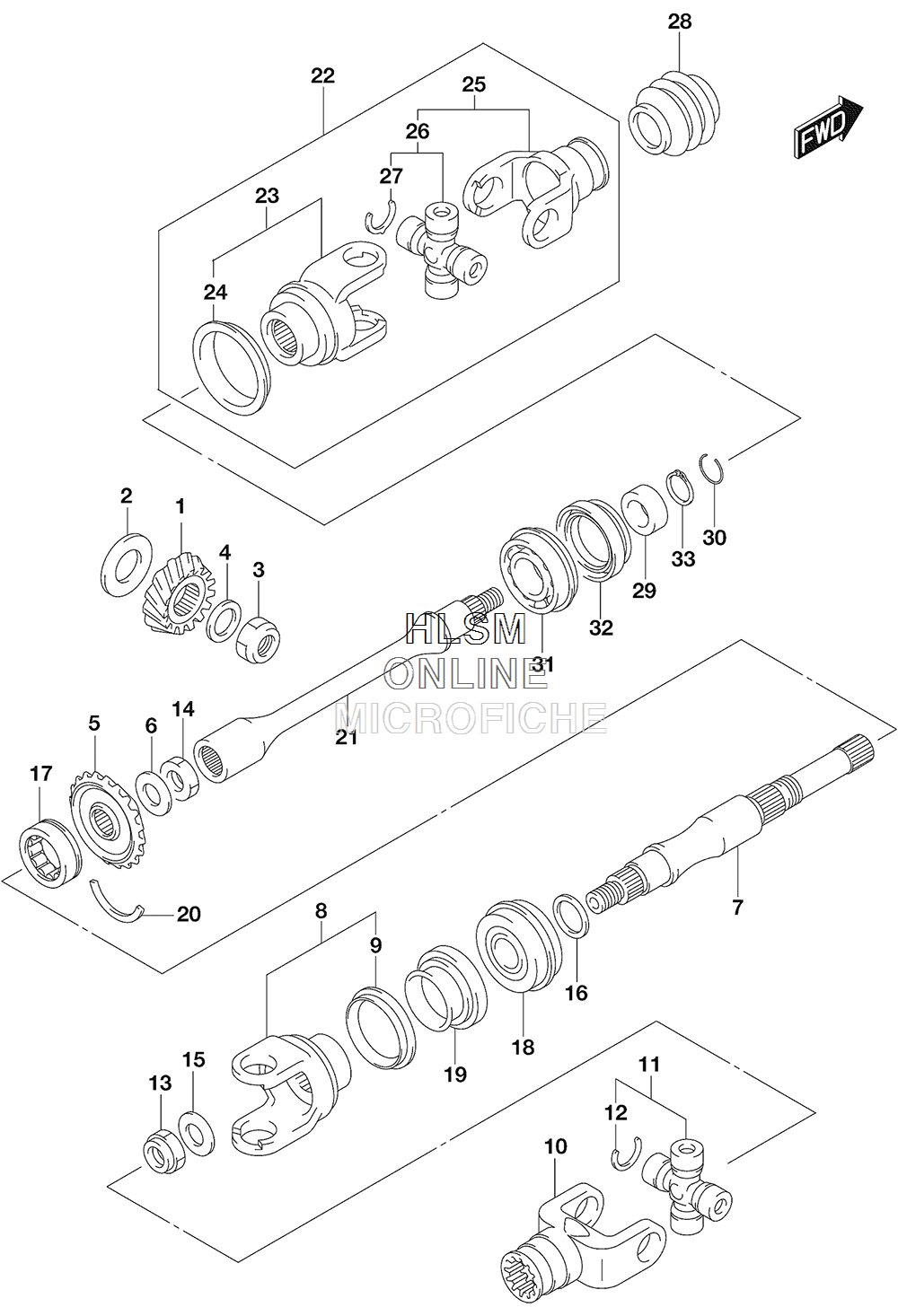

SECONDARY DRIVE для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
124911-44D11 GEAR, SEC DRIVE BEVEL (NT:15)GEAR, SEC DRIVE BEVEL (NT:15)
-
224935-03811 SHIM SET, SEC DRIVE BEVEL GEAR (SEE NOTE 1)SHIM SET, SEC DRIVE BEVEL GEAR (SEE NOTE 1)
-
309140-20012 NUTNUT
-
409181-20223 SHIM (20X32X1)SHIM (20X32X1)
-
524921-44D10 GEAR, SEC DRIVEN BEVEL (NT:17)GEAR, SEC DRIVEN BEVEL (NT:17)
-
608211-22362 WASHERWASHER
-
724971-38F50 SHAFT, SEC DRIVEN OUTPUT REARSHAFT, SEC DRIVEN OUTPUT REAR
-
827130-03G00 YOKE, REAR DRIVE OUTPUTYOKE, REAR DRIVE OUTPUT
-
927592-38F00 PLATE, OUTPUTPLATE, OUTPUT
-
1027140-27H01 YOKE, PROP SHAFT JOINT REARYOKE, PROP SHAFT JOINT REAR
-
1127200-19810 JOINT SET, UNIVERSALJOINT SET, UNIVERSAL
-
1209380-20016 CIRCLIPCIRCLIP
-
1309159-16003 NUTNUT
-
1409159-22005 NUTNUT
-
1509160-16026 WASHER (16X30X3)WASHER (16X30X3)
-
1624945-03811 SHIM SET, SEC DRIVEN (SEE NOTE 2)SHIM SET, SEC DRIVEN (SEE NOTE 2)
-
1709263-30050 BEARING (30X50X17)BEARING (30X50X17)
-
1809267-25014 BEARING (25X52X20.6)BEARING (25X52X20.6)
-
1909283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
-
2009390-50002 C RINGC RING
-
2124961-27H50 SHAFT, SEC DRIVEN OUTPUT, FRSHAFT, SEC DRIVEN OUTPUT, FR
-
2227100-27H01 YOKE ASSY, UNIVERSAL JOINTYOKE ASSY, UNIVERSAL JOINT
-
2327130-27H01 YOKE, FR DRIVE OUTPUTYOKE, FR DRIVE OUTPUT
-
2427592-38F00 PLATE, OUTPUTPLATE, OUTPUT
-
2527140-27H01 YOKE, PROP SFT JOINT, FRYOKE, PROP SFT JOINT, FR
-
2627200-19810 JOINT ASSY, UNIVERSALJOINT ASSY, UNIVERSAL
-
2709380-20016 CIRCLIPCIRCLIP
-
2827153-27H10 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
2927591-27H00 COLLAR, FRONT DRIVE OUTPUTCOLLAR, FRONT DRIVE OUTPUT
-
3009381-19005 CIRCLIPCIRCLIP
-
3108331-31229 CIRCLIPCIRCLIP
-
3209262-25131 BEARING (25X52X15)BEARING (25X52X15)
-
3309283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
