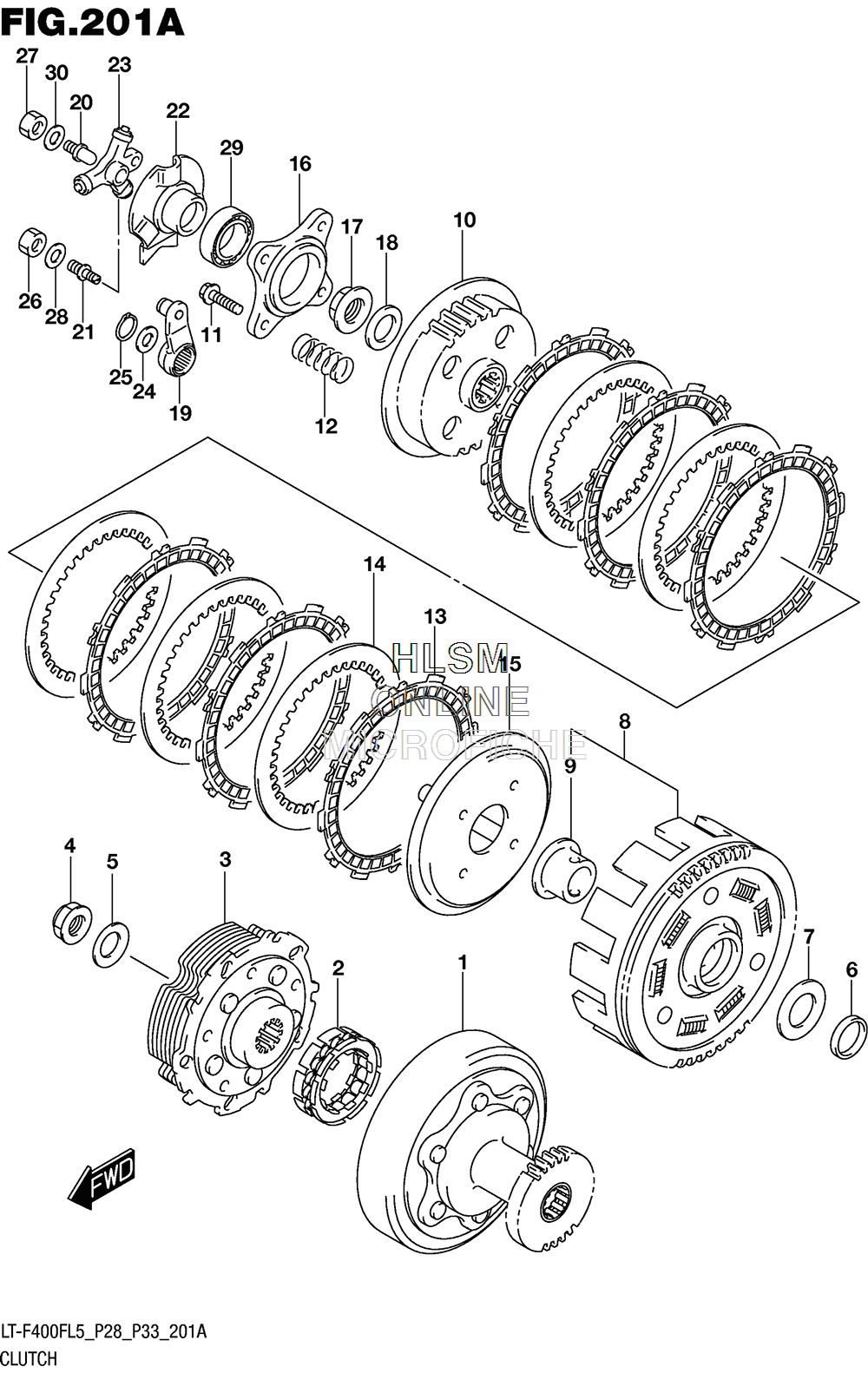

CLUTCH для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
121120-27H50 HOUSING, STARTER CLUTCH (NT:28)HOUSING, STARTER CLUTCH (NT:28)
-
221273-44D00 CLUTCH, PRI DRIVE ONE WAYCLUTCH, PRI DRIVE ONE WAY
-
321500-27H50 SHOE, STARTER CLUTCHSHOE, STARTER CLUTCH
-
421518-44D00 NUT, STARTER CLUTCH SHOENUT, STARTER CLUTCH SHOE
-
509164-20007 WASHERWASHER
-
609180-22045 SPACER (22X28X3.5)SPACER (22X28X3.5)
-
708211-22423 WASHERWASHER
-
821200-38850 GEAR ASSY, PRIMARY DRIVEN (NT:67)GEAR ASSY, PRIMARY DRIVEN (NT:67)
-
921251-44D00 SPACER, PRIMARY DRIVENSPACER, PRIMARY DRIVEN
-
1021411-44D00 HUB, CLUTCH SLEEVE (NT:37)HUB, CLUTCH SLEEVE (NT:37)
-
1109103-06099 BOLT (6X25)BOLT (6X25)
-
1221413-38F50 SPRING, CLUTCHSPRING, CLUTCH
-
1321441-44D00 PLATE, CLUTCH DRIVE (T:3.0)PLATE, CLUTCH DRIVE (T:3.0)
-
1421451-44D00 PLATE, CLUTCH DRIVEN (T:1.6)PLATE, CLUTCH DRIVEN (T:1.6)
-
1521462-44D00 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
1621465-44D00 PLATE, CLUTCH RELEASE (T:12.0)PLATE, CLUTCH RELEASE (T:12.0)
-
1721414-44D00 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1809164-20007 WASHERWASHER
-
1923220-03G50 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2023223-44D11 BOLT, CLUTCH RLSE ADJ NO.1BOLT, CLUTCH RLSE ADJ NO.1
-
2123224-44D00 BOLT, CLUTCH RLSE ADJ NO.2BOLT, CLUTCH RLSE ADJ NO.2
-
2223230-03G50 GUIDE, CL RELEASE ROLLERGUIDE, CL RELEASE ROLLER
-
2323250-03G50 ROLLER ASSY, CLUTCH RELEASEROLLER ASSY, CLUTCH RELEASE
-
2408211-10242 WASHERWASHER
-
2508331-3114A CIRCLIPCIRCLIP
-
2609140-06023 NUTNUT
-
2709140-08017 NUTNUT
-
2809160-06079 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
2908113-69050 BEARINGBEARING
-
3009160-08103 WASHER (8X20X1)WASHER (8X20X1)
