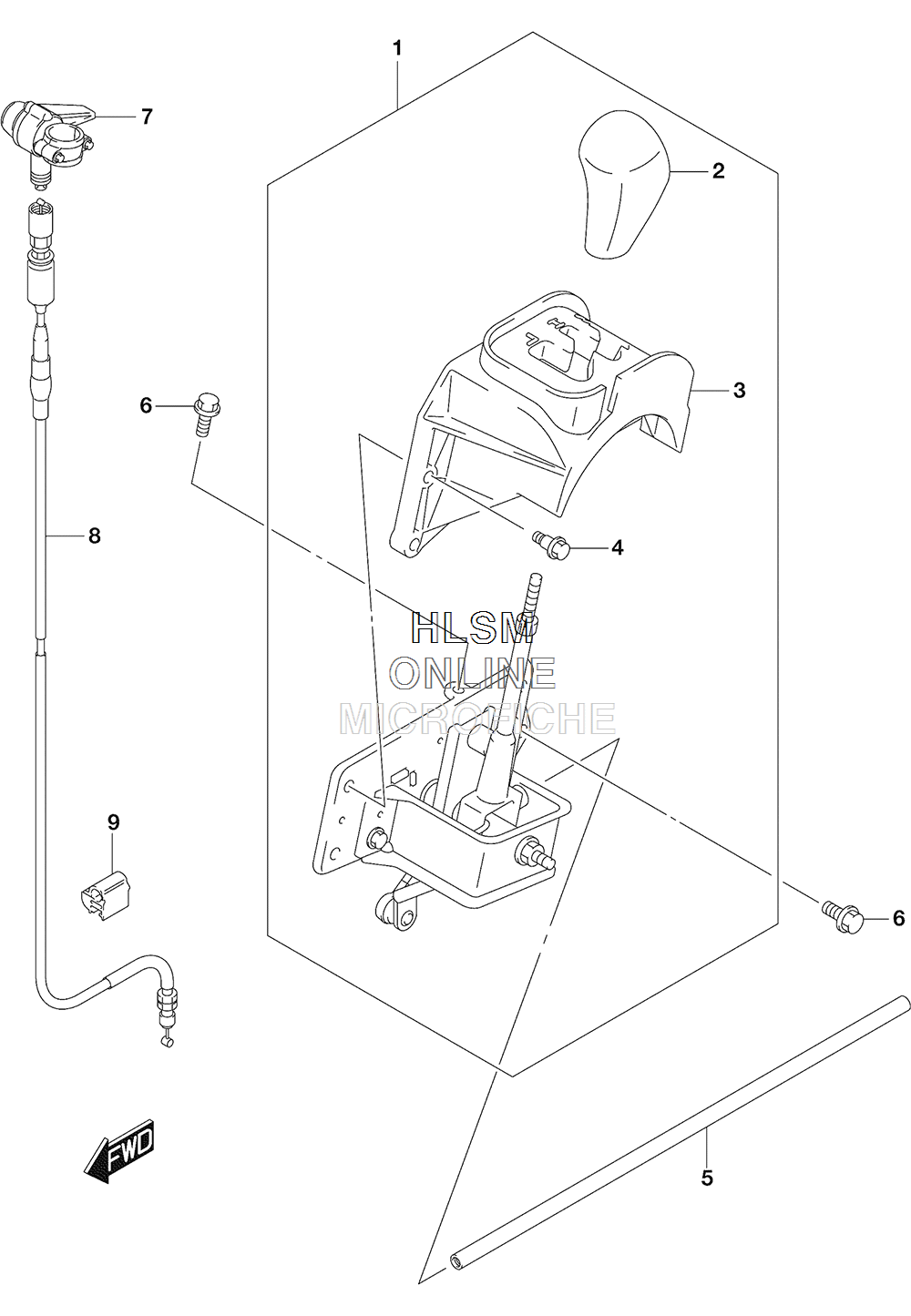

SHIFT LEVER для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
157800-27H20 LEVER ASSY, TRANSMISSIONLEVER ASSY, TRANSMISSION
-
257830-27H00 KNOB, T/M LEVERKNOB, T/M LEVER
-
357941-27H00 COVER, T/M LEVER GATECOVER, T/M LEVER GATE
-
409111-06079 BOLT (6X20.6)BOLT (6X20.6)
-
557960-03G10 SWITCH ASSY, REVERSESWITCH ASSY, REVERSE
-
609407-17403 CLAMP (L:154)CLAMP (L:154)
-
702112-7310A SCREWSCREW
-
857911-27H00 ROD, T/M LEVERROD, T/M LEVER
-
901550-0830A BOLTBOLT
-
1057920-38F20 LEVER, TRANSFERLEVER, TRANSFER
-
1158690-27H00 CABLE, TRANSFER SHIFTCABLE, TRANSFER SHIFT
-
1209403-10405 CLAMPCLAMP
