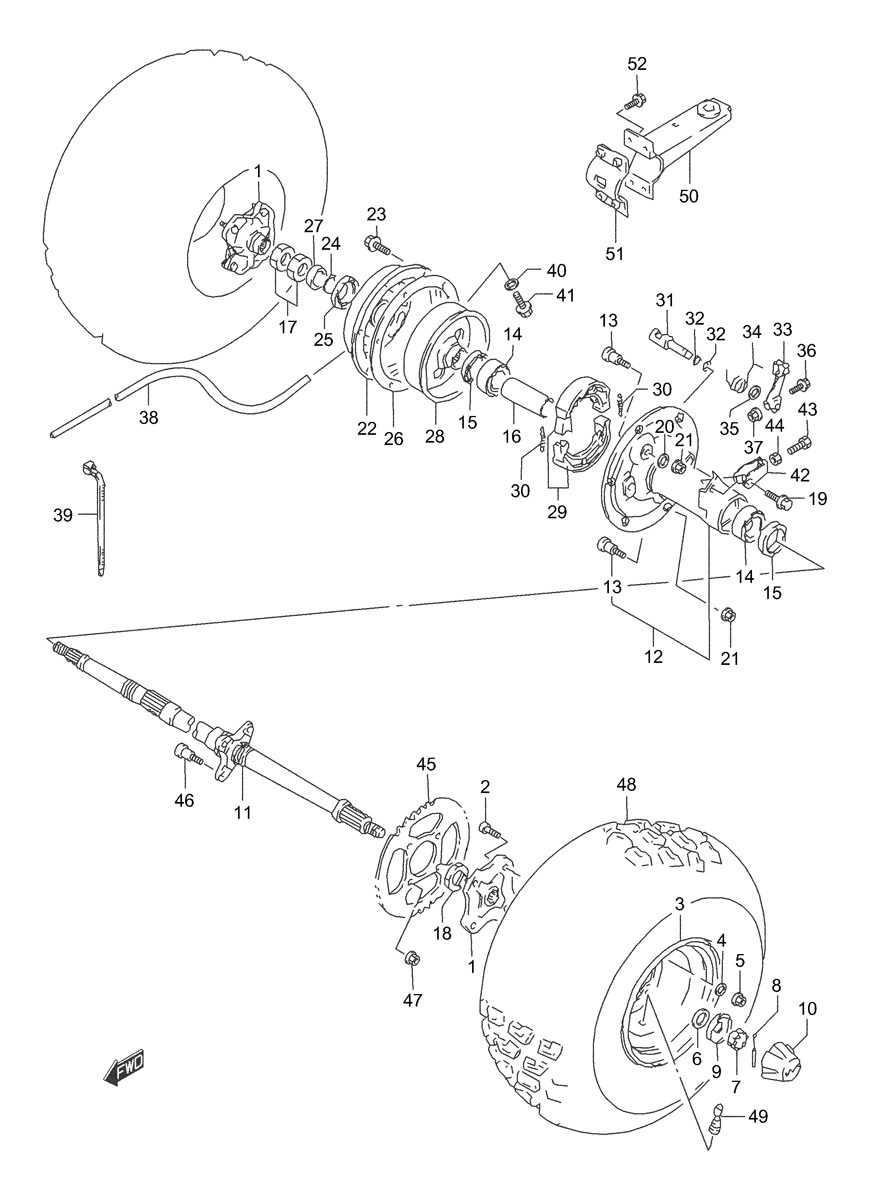

WHEEL - REAR W/ AXLE - BRAKE для Suzuki LT160 QUADRUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
164110-02C00 HUB, REARHUB, REAR
-
209119-10048 BOLT (10X23)BOLT (10X23)
-
365310-02C00-13L RIM, REAR WHEEL (8X8.0AT) (SILVER)RIM, REAR WHEEL (8X8.0AT) (SILVER)
-
408322-01103 WASHERWASHER
-
508316-10103 NUTNUT
-
609164-18004 WASHER, HUBWASHER, HUB
-
709141-18008 NUTNUT
-
804111-40408 PIN COTTERPIN COTTER
-
964726-19B00 HOLDER, CAPHOLDER, CAP
-
1054725-39D00 CAP, CENTERCAP, CENTER
-
1164710-02C00 AXLE, REARAXLE, REAR
-
1264720-02C01-13L HOUSING, REAR AXLE (SILVER)HOUSING, REAR AXLE (SILVER)
-
1309119-12021 BOLTBOLT
-
1409262-35032 BEARING (35X62X14)BEARING (35X62X14)
-
1509283-42011 SEAL, DUST (42X62X7)SEAL, DUST (42X62X7)
-
1664731-02C00 SPACER, BEARING (36.3X42.7X140)SPACER, BEARING (36.3X42.7X140)
-
1709159-32002 NUT, RIGHT HANDNUT, RIGHT HAND
-
1809140-32001 NUT, LEFT HANDNUT, LEFT HAND
-
1909103-120D9 BOLT, HOUSING SET LEFT HAND (12X28)BOLT, HOUSING SET LEFT HAND (12X28)
-
2009160-12017 WASHER, UPPER, RIGHT HANDWASHER, UPPER, RIGHT HAND
-
2108319-31128 NUT, RIGHT HANDNUT, RIGHT HAND
-
2264130-02C00-13L COVER, BRAKE DRUM (SILVER)COVER, BRAKE DRUM (SILVER)
-
2301550-06123 BOLT, COVERBOLT, COVER
-
2409280-32007 O RING, COVER (D:2.4,ID:31.7)O RING, COVER (D:2.4,ID:31.7)
-
2564135-02C00 SEAL, COVER OUTER (42X59X10.2)SEAL, COVER OUTER (42X59X10.2)
-
2664160-24400 PACKING, COVERPACKING, COVER
-
2764214-02C00 COLLAR, COVERCOLLAR, COVER
-
2864120-24401 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
2964400-02830 SHOE SET, REAR BRAKESHOE SET, REAR BRAKE
-
3055420-02C00 SPRING, SHOESPRING, SHOE
-
3164440-24402 CAM, REAR BRAKECAM, REAR BRAKE
-
3264443-24300 O RING (D:1.7,ID:14.8)O RING (D:1.7,ID:14.8)
-
3364451-02C00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
3464484-02C00 SPRING, LEVER RETURNSPRING, LEVER RETURN
-
3564492-02C00 PLATE, INDICATERPLATE, INDICATER
-
3609103-06108 BOLT, LEVER (6X35)BOLT, LEVER (6X35)
-
3708316-10063 NUTNUT
-
3864275-02C00 HOSE, BREATHER (6X10X980)HOSE, BREATHER (6X10X980)
-
3909407-14403 CLAMP, HOSECLAMP, HOSE
-
4009161-10007 WASHER, PLUGWASHER, PLUG
-
4109247-10009 PLUG, DRAINPLUG, DRAIN
-
4261410-35B00 ADJUSTER, CHAINADJUSTER, CHAIN
-
4309104-08034 BOLT (8X50)BOLT (8X50)
-
4408310-00083 NUTNUT
-
4564511-02C01 SPROCKET, REAR (NT:39)SPROCKET, REAR (NT:39)
-
4609119-10031 BOLT (10X25)BOLT (10X25)
-
4708319-31107 NUTNUT
-
4865100-02C30 TIRE, REAR (AT22X10-8) (GOLDEN BOY)TIRE, REAR (AT22X10-8) (GOLDEN BOY)
-
4943130-78030 VALVE ASSY, WHEEL RIM (TR413)VALVE ASSY, WHEEL RIM (TR413)
-
5095210-02C00 PLATE, TRLR TOWPLATE, TRLR TOW
-
5195220-02C00 PLATE, TRLR TOW JOINTPLATE, TRLR TOW JOINT
-
5201570-08253 BOLTBOLT
