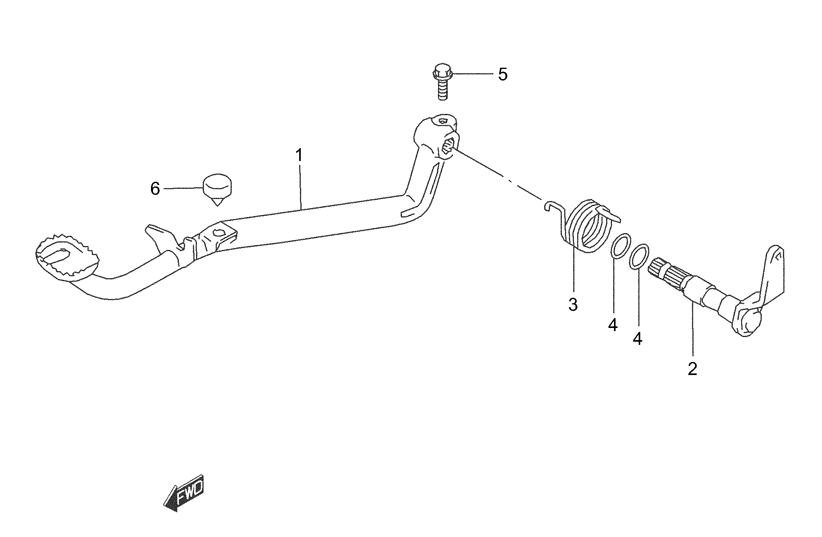

BRAKE - REAR PEDAL для Suzuki LT160 QUADRUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
143110-02C10-019 PEDAL, BRAKE (BLACK)PEDAL, BRAKE (BLACK)
-
243120-02C00 ARM, BRAKE PEDALARM, BRAKE PEDAL
-
343211-02C00 SPRING, RETURNSPRING, RETURN
-
409280-17004 O RING (D:1.9,ID:16.6)O RING (D:1.9,ID:16.6)
-
501550-08253 BOLTBOLT
-
609321-100B2 CUSHIONCUSHION
