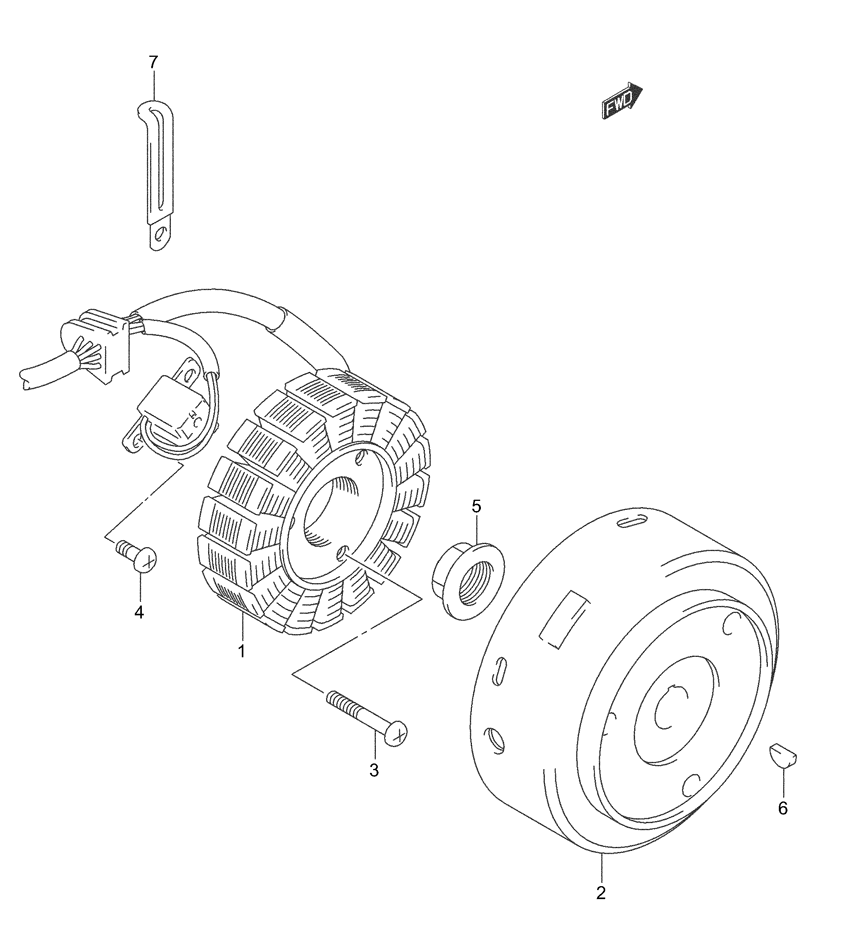

MAGNETO для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
132101-02C10 STATORSTATOR
-
232102-02C10 ROTORROTOR
-
309125-05130 SCREWSCREW
-
402112-05123 SCREW 5X12SCREW 5X12
-
531792-18A00 NUTNUT
-
608341-31039 3 MM WOODRUFF3 MM WOODRUFF
-
709404-06432 CLAMP (L:65)CLAMP (L:65)
