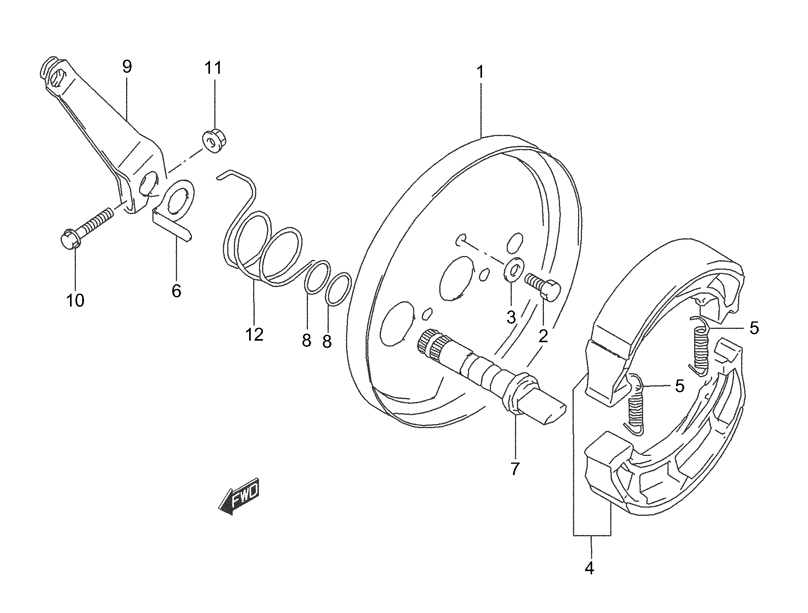

BRAKE - FRONT для Suzuki LT160 QUADRUNNER - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    54511-02C00 PLATE, FRONT BRAKE RIGHT HAND
    PLATE, FRONT BRAKE RIGHT HAND
  • 1
    54811-02C00 PLATE, FRONT BRAKE LEFT HAND
    PLATE, FRONT BRAKE LEFT HAND
  • 2
    09100-06157 BOLT, PLATE (6X8)
    BOLT, PLATE (6X8)
  • 3
    08321-01063 WASHER
    WASHER
  • 4
    54400-02810 SHOE SET, FRONT BRAKE
    SHOE SET, FRONT BRAKE
  • 5
    09443-07025 SPRING
    SPRING
  • 6
    54492-02C00 PLATE, LINING INDICATOR
    PLATE, LINING INDICATOR
  • 7
    54441-02C00 CAM, FRONT BRAKE
    CAM, FRONT BRAKE
  • 8
    09280-14004 O RING (D:1.9,ID:13.8)
    O RING (D:1.9,ID:13.8)
  • 9
    54451-02C00 LEVER, FRONT BRAKE CAM RIGHT HAND
    LEVER, FRONT BRAKE CAM RIGHT HAND
  • 9
    54461-02C00 LEVER, FRONT BRAKE CAM LEFT HAND
    LEVER, FRONT BRAKE CAM LEFT HAND
  • 10
    09103-06135 BOLT, CAM LEVER (6X32)
    BOLT, CAM LEVER (6X32)
  • 11
    08316-10063 NUT
    NUT
  • 12
    54484-02C00 SPRING, CAM LEVER RETURN RIGHT HAND
    SPRING, CAM LEVER RETURN RIGHT HAND
  • 12
    54494-02C00 SPRING, CAM LEVER RETURN LEFT HAND
    SPRING, CAM LEVER RETURN LEFT HAND
