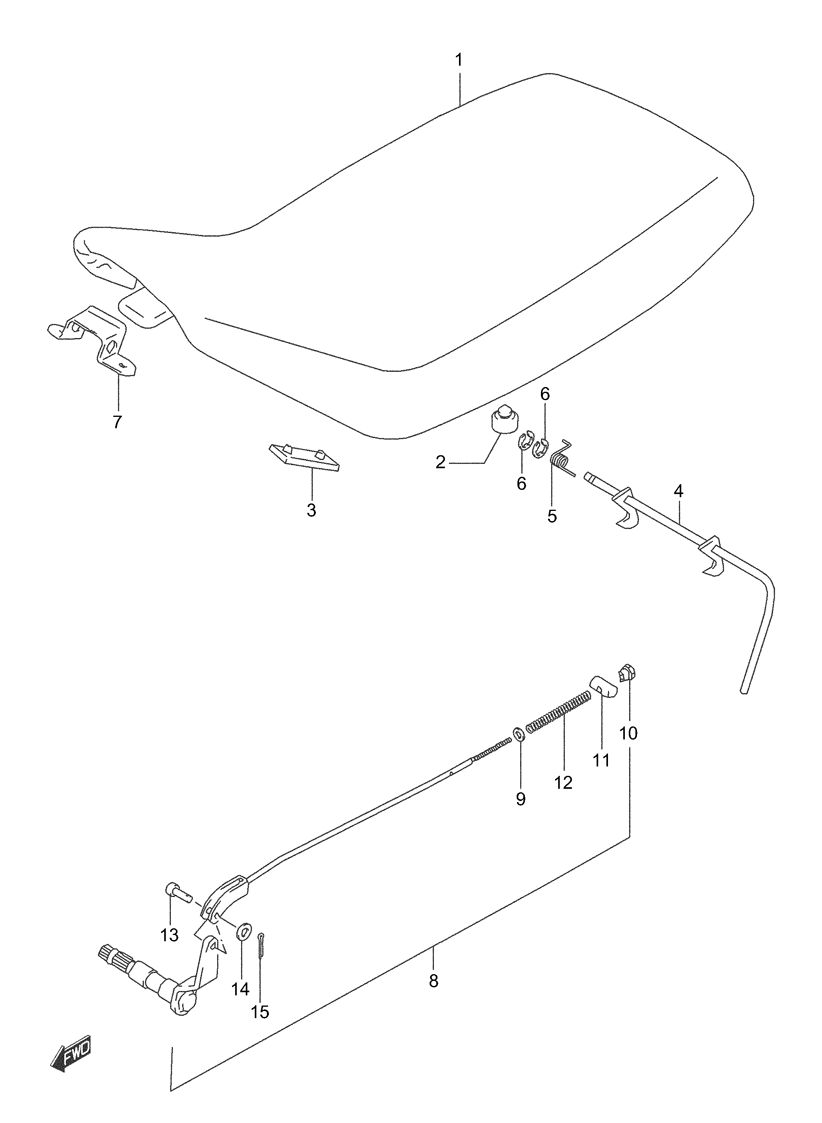

SEAT для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
145100-02C00-58P SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
209321-100B2 CUSHIONCUSHION
-
309321-08009 CUSHIONCUSHION
-
445210-02C00 CLAMP, SEATCLAMP, SEAT
-
545135-24301 SPRINGSPRING
-
608332-11063 E RINGE RING
-
745119-02C00 PLATE, SEAT REAR HOOKPLATE, SEAT REAR HOOK
-
843300-02C00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
908322-01063 WASHERWASHER
-
1009150-06014 NUTNUT
-
1109209-130A6 PINPIN
-
1209440-090B3 SPRINGSPRING
-
1309200-060B3 PINPIN
-
1408322-01063 WASHERWASHER
-
1504111-20208 COTTER PINCOTTER PIN
