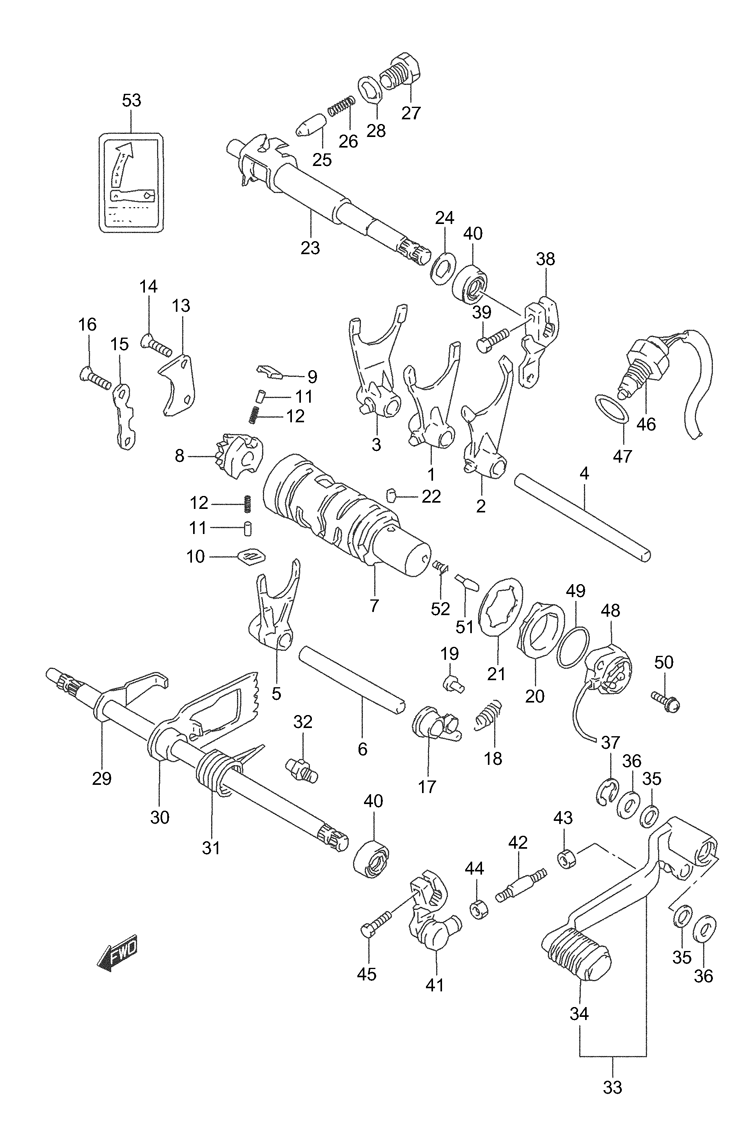

GEAR SHIFTING для Suzuki LT160 QUADRUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
125211-18A00 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
225221-18A00 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
325241-18A01 FORK, GEAR SHIFTING NO.4FORK, GEAR SHIFTING NO.4
-
425411-18900 SHAFT, NO.1 (L:126)SHAFT, NO.1 (L:126)
-
525231-18A01 FORK, GEAR SHIFTING NO.3FORK, GEAR SHIFTING NO.3
-
625411-14331 SHAFT, NO.2 (L:85)SHAFT, NO.2 (L:85)
-
725310-35B02 CAM, GEAR SHIFTINGCAM, GEAR SHIFTING
-
825322-31310 GEAR, CAM DRIVENGEAR, CAM DRIVEN
-
925323-34201 PAWL, NO.1PAWL, NO.1
-
1025324-34201 PAWL, NO.2PAWL, NO.2
-
1109261-05003 PINPIN
-
1209440-04003 SPRINGSPRING
-
1325331-37400 LIFTER, PAWLLIFTER, PAWL
-
1402122-06123 BOLT, BRAKE DRUMBOLT, BRAKE DRUM
-
1525341-40001 GUIDE, CAMGUIDE, CAM
-
1602122-06123 BOLT, BRAKE DRUMBOLT, BRAKE DRUM
-
1725350-18A00 STOPPER, CAMSTOPPER, CAM
-
1809443-10022 SPRINGSPRING
-
1909223-04001 HOOKHOOK
-
2025381-37401 PLATE, STOPPERPLATE, STOPPER
-
2109167-30007 WASHER (30X44X1.0)WASHER (30X44X1.0)
-
2204221-04069 PINPIN
-
2325320-18A04 CAM, REVERSE SHIFTINGCAM, REVERSE SHIFTING
-
2408211-12223 WASHERWASHER
-
2525351-11010 STOPPER, CAMSTOPPER, CAM
-
2609440-05007 SPRINGSPRING
-
2725352-11010 HOLDER, STOPPERHOLDER, STOPPER
-
2809168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2925510-18A01 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
3025540-24200 GEAR, CAM DRIVEGEAR, CAM DRIVE
-
3109444-26025 SPRINGSPRING
-
3225671-01011 STOPPER, ARMSTOPPER, ARM
-
3325600-02C00 LEVER ASSY, GEAR SHIFTINGLEVER ASSY, GEAR SHIFTING
-
3425652-24401 COVERCOVER
-
3509280-12006 O RING (D:2.2,ID:11.8)O RING (D:2.2,ID:11.8)
-
3609160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3708332-11106 E RINGE RING
-
3825621-02C00 LEVER, REVERSE SHIFTINGLEVER, REVERSE SHIFTING
-
3901500-06203 BOLTBOLT
-
4009285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
4125520-02C00 ARMARM
-
4225525-44110 ROD (L:59.5)ROD (L:59.5)
-
4309140-06011 NUTNUT
-
4408310-00067 NUTNUT
-
4501500-06203 BOLTBOLT
-
4637600-19B03 SWITCH ASSY, REVERSESWITCH ASSY, REVERSE
-
4709280-16008 O RING (D:3.2,ID:15.8)O RING (D:3.2,ID:15.8)
-
4837720-24502 SWITCH, GEAR SHIFTINGSWITCH, GEAR SHIFTING
-
4909280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
5002112-75203 SCREWSCREW
-
5109209-05011 CONTACTCONTACT
-
5209440-04010 SPRINGSPRING
-
5368392-24210 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
