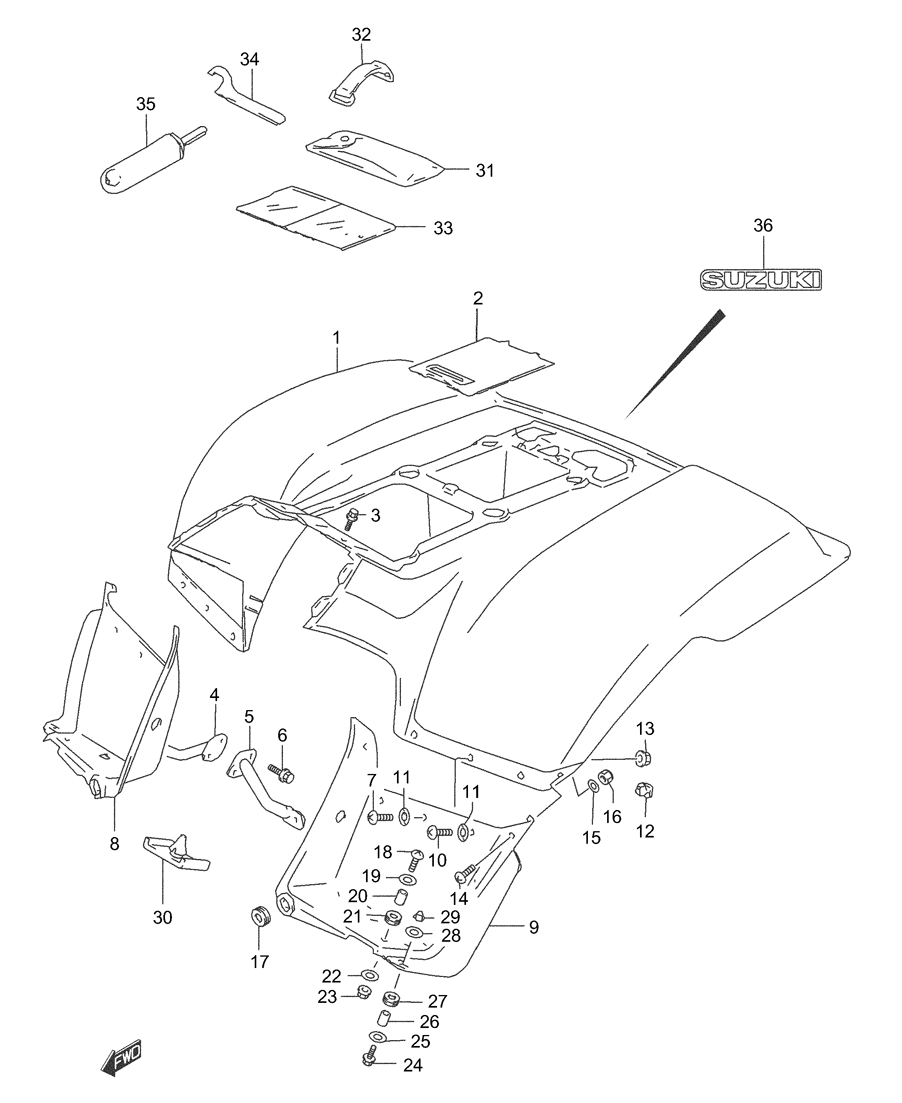

FENDER - REAR для Suzuki LT160 QUADRUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
163111-02C01-YU1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
263171-02C00-291 COVER, FENDER (BLACK)COVER, FENDER (BLACK)
-
309118-06017 BOLT 6X16BOLT 6X16
-
463140-02C00 REINFORCEMENT, RIGHT HANDREINFORCEMENT, RIGHT HAND
-
563150-02C00 REINFORCEMENT, LEFT HANDREINFORCEMENT, LEFT HAND
-
601550-06123 BOLTBOLT
-
702142-06203 SCREWSCREW
-
863330-02C10-291 BODY, MUD GUARD RIGHT HAND (BLACK)BODY, MUD GUARD RIGHT HAND (BLACK)
-
963340-02C10-291 BODY, MUD GUARD LEFT HAND (BLACK)BODY, MUD GUARD LEFT HAND (BLACK)
-
1009136-06004 SCREW 6X12 W/WASHERSCREW 6X12 W/WASHER
-
1109160-06109 WASHER, MUD GUARDWASHER, MUD GUARD
-
1209146-06003 NUTNUT
-
1308319-31067 NUT, CENTERNUT, CENTER
-
1402142-05123 SCREW 5X12SCREW 5X12
-
1508322-01053 WASHERWASHER
-
1608319-31053 NUTNUT
-
1709320-08021 CUSHIONCUSHION
-
1802142-05203 SCREW 5 X 20SCREW 5 X 20
-
1909160-05037 WASHERWASHER
-
2009180-06248 SPACERSPACER
-
2109320-08013 CUSHIONCUSHION
-
2209160-05501 WASHERWASHER
-
2308319-31053 NUTNUT
-
2401550-05163 BOLTBOLT
-
2509160-05501 WASHERWASHER
-
2609180-06248 SPACERSPACER
-
2709320-08013 CUSHIONCUSHION
-
2809160-05037 WASHERWASHER
-
2908313-10053 NUTNUT
-
3063191-02C00 CUSHIONCUSHION
-
3109800-21019 TOOL ASSYTOOL ASSY
-
3209462-000E6 BANDBAND
-
3394980-01C01 BAG, MANUAL (150X296)BAG, MANUAL (150X296)
-
3409822-00004 CLAMP, WRENCHCLAMP, WRENCH
-
3596200-18A02 GUAGE, AIRGUAGE, AIR
-
3668111-19B30-GY8 EMBLEM,"SUZUKI"EMBLEM,"SUZUKI"
