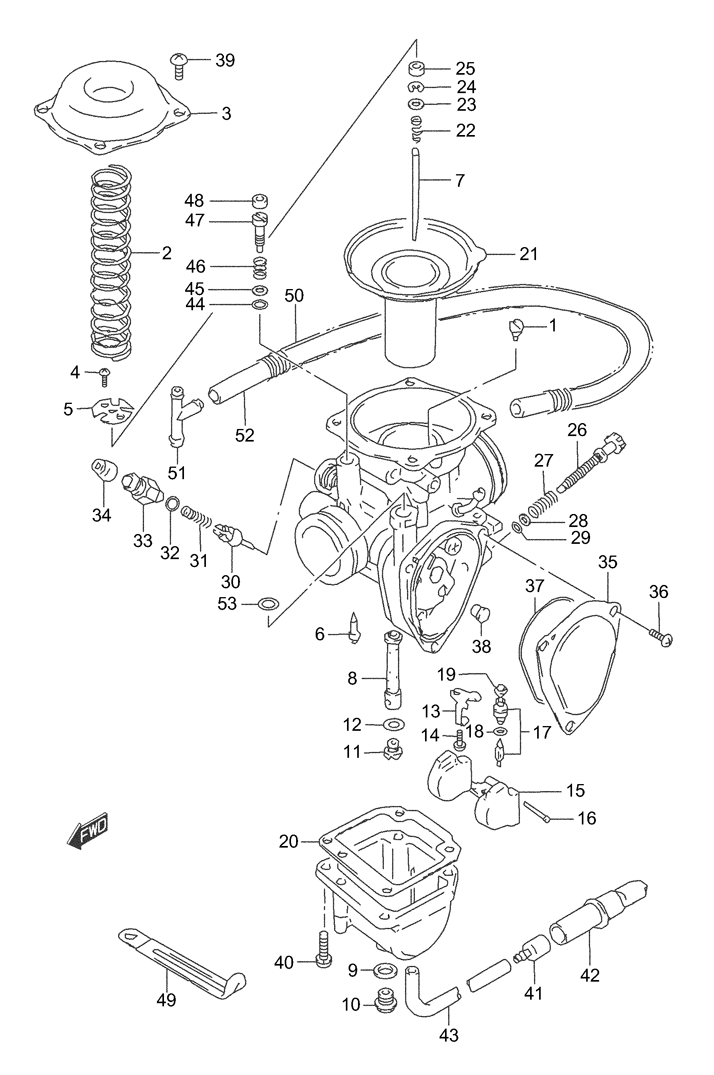

CARBURETOR (CALIF. ONLY) для Suzuki LT160 QUADRUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
-13200-02C10 CARBURETOR ASSYCARBURETOR ASSY
-
109491-34007 JET, PILOT AIR (170)JET, PILOT AIR (170)
-
213503-05350 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
313502-33210 COVERCOVER
-
402112-03063 SCREW 3X6SCREW 3X6
-
513389-37400 PLATEPLATE
-
609492-32006 JET, PILOT (32.5)JET, PILOT (32.5)
-
713383-02C10 NEEDLE, JET (4DZ42)NEEDLE, JET (4DZ42)
-
809494-00903 JET, NEEDLE (P-2)JET, NEEDLE (P-2)
-
913246-44080 GASKETGASKET
-
1013247-44080 SCREW, DRAINSCREW, DRAIN
-
1109491-26011 JET, MAIN (130.0)JET, MAIN (130.0)
-
1213382-03110 WASHERWASHER
-
1313373-11400 PLATEPLATE
-
1402112-04063 SCREWSCREW
-
1513250-05300 FLOATFLOAT
-
1613254-92311 PINPIN
-
1713370-44500 VALVE ASSY, NEEDLE (2.0)VALVE ASSY, NEEDLE (2.0)
-
1813374-35C00 O RINGO RING
-
1913376-19F00 NETNET
-
2013251-20E20 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
2113500-053D0 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
2213388-44030 SPRINGSPRING
-
2313382-44030 WASHERWASHER
-
2413394-40D20 E RINGE RING
-
2513387-47010 RINGRING
-
2613267-13D01 ADJUSTERADJUSTER
-
2713268-37420 SPRINGSPRING
-
2813615-02C10 WASHERWASHER
-
2913295-02C10 O RINGO RING
-
3013411-01400 PLUNGER ASSYPLUNGER ASSY
-
3113417-01010 SPRINGSPRING
-
3213278-02330 O RINGO RING
-
3313418-43200 HOLDER, GUIDEHOLDER, GUIDE
-
3413681-04010 CAPCAP
-
3513502-02C10 COVER, THROTTLECOVER, THROTTLE
-
3613602-48B00 SCREWSCREW
-
3713673-02C10 O RINGO RING
-
3813591-19B50 GUIDE, CABLEGUIDE, CABLE
-
3902112-05087 SCREWSCREW
-
4013601-04148 SCREWSCREW
-
4113520-02C01 VALVE ASSY, CHECKVALVE ASSY, CHECK
-
4213680-19B01 CAPCAP
-
4313684-02C30 HOSEHOSE
-
4413295-29900 O RINGO RING
-
4513291-29900 WASHERWASHER
-
4613268-47070 SPRINGSPRING
-
4713279-45400 SCREW, PILOT (2,1/4)SCREW, PILOT (2,1/4)
-
4813281-05A00 PLUGPLUG
-
4909404-06432 CLAMP, CARB OVERFLOW HOSECLAMP, CARB OVERFLOW HOSE
-
5009440-13051 SPRING, AIR VENT HOSESPRING, AIR VENT HOSE
-
5109367-08004 UNION, 3 WAYUNION, 3 WAY
-
5209359-50823-600 HOSE, AIR VENT (5X8X600)HOSE, AIR VENT (5X8X600)
-
5309280-06008 O RING, THROTTLE CABLEO RING, THROTTLE CABLE
