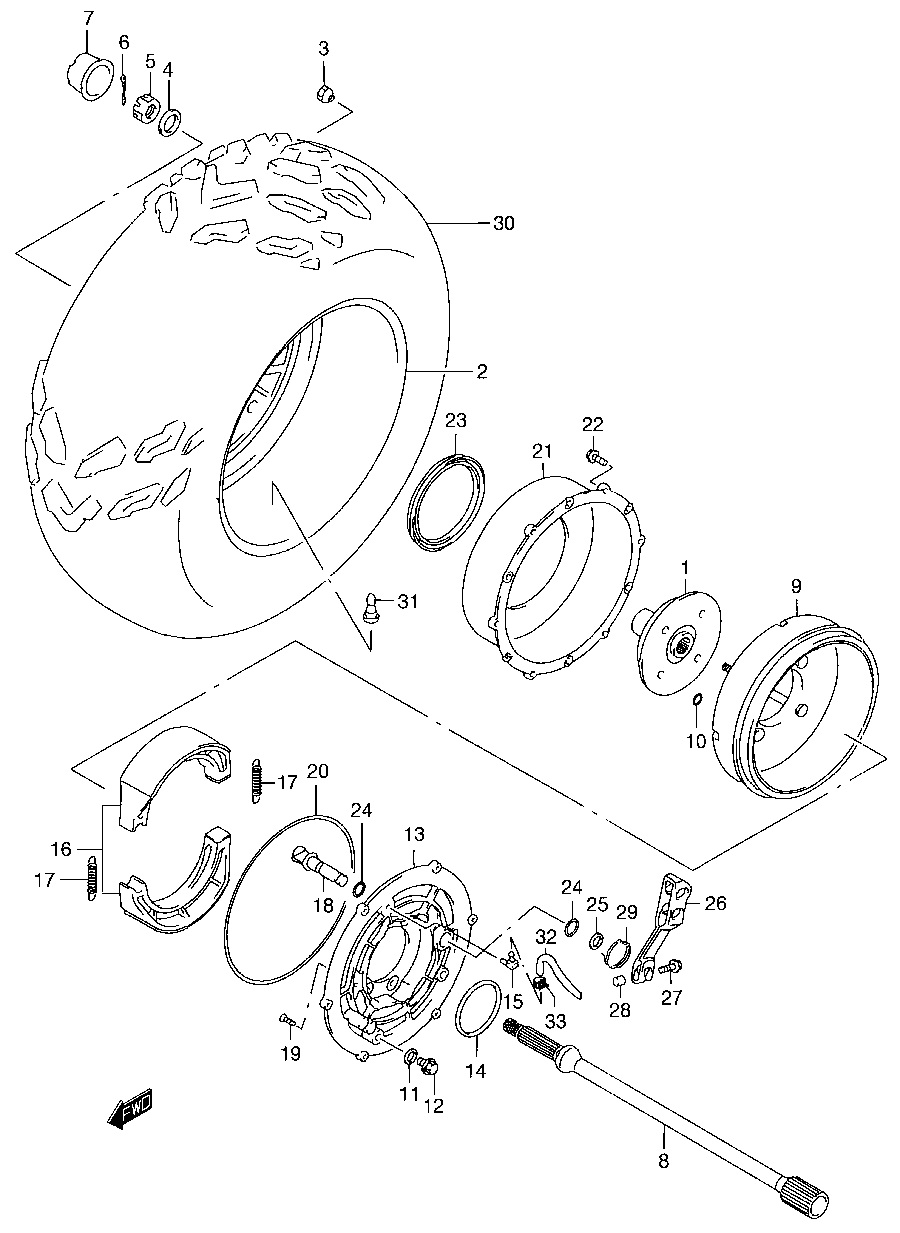

WHEEL - RIGHT REAR W/ AXLE - BRAKE для Suzuki LT-A500FY 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
164111-09F00 HUB, WHEEL (RIGHT) (REAR)HUB, WHEEL (RIGHT) (REAR)
-
265310-09F10-12Z RIM, WHEEL (12X8.0AT) (REAR) (SILVER)RIM, WHEEL (12X8.0AT) (REAR) (SILVER)
-
3-209140-10029 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18008 NUT, HUBNUT, HUB
-
604111-40408 COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
8-264711-09F10 AXLE (REAR) (LEFT)AXLE (REAR) (LEFT)
-
964120-39D10 DRUM, BRAKEDRUM, BRAKE
-
1009280-10016 O-RING (ID:9.8,D:1.90)O-RING (ID:9.8,D:1.90)
-
1109161-10007 WASHER, DRAIN PLUGWASHER, DRAIN PLUG
-
1209247-10008 PLUG, DRAINPLUG, DRAIN
-
1364210-09F00 PANEL, BRAKE ANCHORPANEL, BRAKE ANCHOR
-
1409280-70010 O-RING, PANEL (ID:69.5,D:2.00)O-RING, PANEL (ID:69.5,D:2.00)
-
1516910-09401 UNION, PANELUNION, PANEL
-
1664400-41810 SHOE SET, BRAKESHOE SET, BRAKE
-
1755420-30000 SPRING, SHOESPRING, SHOE
-
1864440-09F00 CAM, BRAKE (REAR)CAM, BRAKE (REAR)
-
1909120-08015 BOLT, PANEL (8X18)BOLT, PANEL (8X18)
-
2064124-39D10 O-RING, PANEL (ID:210,D:4.0)O-RING, PANEL (ID:210,D:4.0)
-
2164123-39D00 COVER, BRAKE (REAR)COVER, BRAKE (REAR)
-
2201550-06163 BOLTBOLT
-
2364124-39D01 DUST SEAL, DRUM COVER (108X130X13)DUST SEAL, DRUM COVER (108X130X13)
-
2464443-18A00 O-RING, CAM (15.9X19.7X2)O-RING, CAM (15.9X19.7X2)
-
2509160-16033 WASHERWASHER
-
2664451-09F00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
2701550-06353 BOLTBOLT
-
2808316-10063 NUTNUT
-
2964484-09F00 SPRING, CAM LEVERSPRING, CAM LEVER
-
3065110-09F00 TIRE (REAR) (AT25X10-12) (DUNLOP)TIRE (REAR) (AT25X10-12) (DUNLOP)
-
3143130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
3209352-50823-00B HOSE, BREATHER (L:2000?1170) (5X8.2X2000)HOSE, BREATHER (L:2000?1170) (5X8.2X2000)
-
3309401-07403 CLIP, HOSECLIP, HOSE
