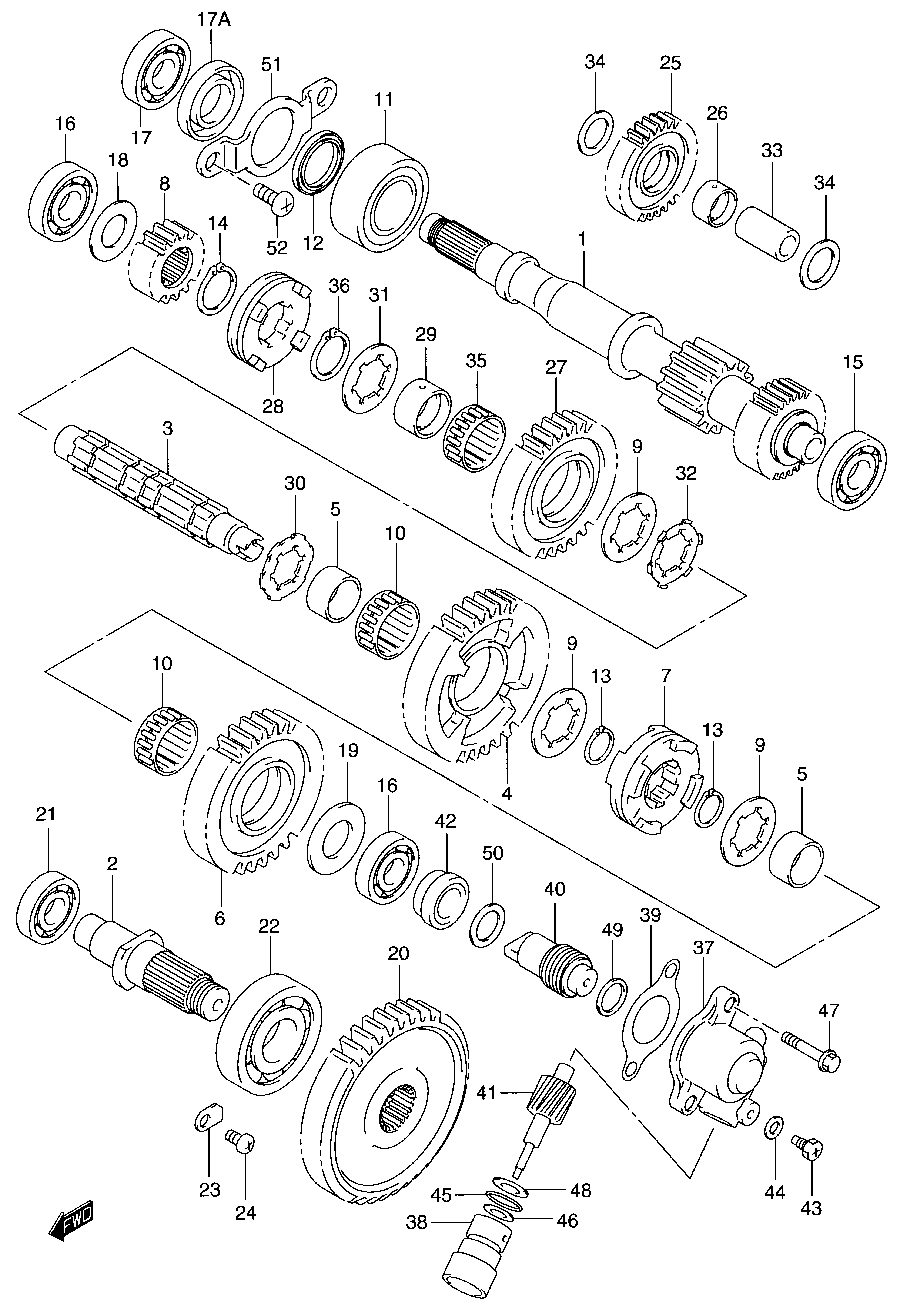

TRANSMISSION (2) для Suzuki LT-A500FY 4X4 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    29111-09F60 SHAFT, DRIVE (NT:16/24)
    SHAFT, DRIVE (NT:16/24)
  • 2
    29121-09F50 SHAFT, SUB T/M OUTPUT
    SHAFT, SUB T/M OUTPUT
  • 3
    29131-09F50 SHAFT, SUB T/M COUNTER
    SHAFT, SUB T/M COUNTER
  • 4
    29311-09F50 GEAR, SUB T/M DRIVEN LOW (NT:40)
    GEAR, SUB T/M DRIVEN LOW (NT:40)
  • 5
    29315-09F51 BUSH, SUB T/M DRIVEN
    BUSH, SUB T/M DRIVEN
  • 6
    29321-09F51 GEAR, SUB T/M DRIVEN HI (NT:33)
    GEAR, SUB T/M DRIVEN HI (NT:33)
  • 7
    29331-09F60 DOG, SLIDING
    DOG, SLIDING
  • 8
    29411-09F50 GEAR, SUB T/M DRIVE NO.2 (NT:16)
    GEAR, SUB T/M DRIVE NO.2 (NT:16)
  • 9
    09167-25017 WASHER, DRIVEN GEAR
    WASHER, DRIVEN GEAR
  • 10
    09263-30018 BEARING, SUB T/M GEAR (30X35X12)
    BEARING, SUB T/M GEAR (30X35X12)
  • 11
    09267-30005 BEARING, DRIVE SHAFT (RIGHT) (30X62X23.8)
    BEARING, DRIVE SHAFT (RIGHT) (30X62X23.8)
  • 12
    29112-09F50 SEAL, DRIVE SHAFT (30X44X7)
    SEAL, DRIVE SHAFT (30X44X7)
  • 13
    09380-25003 CIRCLIP, DRIVEN GEAR
    CIRCLIP, DRIVEN GEAR
  • 14
    09380-25003 CIRCLIP, SUB T/M GEAR
    CIRCLIP, SUB T/M GEAR
  • 15
    09262-20069 BEARING, DRIVE SHAFT (LEFT) (20X47X14)
    BEARING, DRIVE SHAFT (LEFT) (20X47X14)
  • 16
    09262-20073 BEARING, COUNTER SHAFT (20X52X15)
    BEARING, COUNTER SHAFT (20X52X15)
  • 17
    09262-17048 BEARING, DRIVE SHAFT
    BEARING, DRIVE SHAFT
  • 17A
    24754-09F50 SEAL, DRIVE SHAFT (RIGHT)
    SEAL, DRIVE SHAFT (RIGHT)
  • 18
    08211-20361 WASHER, DRIVE GEAR (RIGHT)
    WASHER, DRIVE GEAR (RIGHT)
  • 19
    08211-20401 WASHER, DRIVE GEAR
    WASHER, DRIVE GEAR
  • 20
    29421-09F61 GEAR, SUB T/M DRIVEN NO.2 (NT:41)
    GEAR, SUB T/M DRIVEN NO.2 (NT:41)
  • 21
    09262-20073 BEARING, OUTPUT SHAFT (20X52X15)
    BEARING, OUTPUT SHAFT (20X52X15)
  • 22
    09262-25127 BEARING, OUTPUT SHAFT
    BEARING, OUTPUT SHAFT
  • 23
    24741-21A00 RETAINER, BEARING
    RETAINER, BEARING
  • 24
    02112-06123 SCREW, RETAINER
    SCREW, RETAINER
  • 25
    24561-09F50 GEAR, REVERSE IDLE
    GEAR, REVERSE IDLE
  • 26
    24562-09F50 BUSH, REV IDLE GEAR
    BUSH, REV IDLE GEAR
  • 27
    24571-09F60 GEAR, REVERSE DRIVEN (NT:32)
    GEAR, REVERSE DRIVEN (NT:32)
  • 28
    24581-09F60 DOG, REVERSE GEAR
    DOG, REVERSE GEAR
  • 29
    29315-09F51 BUSH, REV DRIVEN GEAR
    BUSH, REV DRIVEN GEAR
  • 30
    09167-25013 WASHER, LOCK
    WASHER, LOCK
  • 31
    09167-25017 WASHER, REV DRIVEN GEAR
    WASHER, REV DRIVEN GEAR
  • 32
    09169-25001 WASHER, LOCK
    WASHER, LOCK
  • 33
    09180-14014 SHAFT, REVERSE IDLE (14X20X34)
    SHAFT, REVERSE IDLE (14X20X34)
  • 34
    09181-20195 WASHER, REV IDLE GEAR (20X30X1.0)
    WASHER, REV IDLE GEAR (20X30X1.0)
  • 35
    09263-30018 BEARING, REV DRIVEN GEAR (30X35X12.8)
    BEARING, REV DRIVEN GEAR (30X35X12.8)
  • 36
    09380-25003 CIRCLIP, REV DRIVEN GEAR
    CIRCLIP, REV DRIVEN GEAR
  • 37
    26441-19B01 HOUSING, ODOMETER GEAR
    HOUSING, ODOMETER GEAR
  • 38
    26442-19B00 SLEEVE
    SLEEVE
  • 39
    26451-19B12 GASKET
    GASKET
  • 40
    26461-09F50 GEAR, DRIVE (NT:4)
    GEAR, DRIVE (NT:4)
  • 41
    26471-09F50 GEAR, DRIVEN (NT:15)
    GEAR, DRIVEN (NT:15)
  • 42
    26481-19B00 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 43
    09135-06013 BOLT, GEAR
    BOLT, GEAR
  • 44
    09168-06004 WASHER, DRIVEN (6.2X11X1.2)
    WASHER, DRIVEN (6.2X11X1.2)
  • 45
    09280-17004 O-RING (D:1.9,ID:16.6)
    O-RING (D:1.9,ID:16.6)
  • 46
    09289-05002 SEAL, DRIVEN GEAR 95X12X8)
    SEAL, DRIVEN GEAR 95X12X8)
  • 47
    09103-06201 BOLT, GEAR SLEEVE
    BOLT, GEAR SLEEVE
  • 48
    08211-08151 WASHER, DRIVEN GEAR
    WASHER, DRIVEN GEAR
  • 49
    08211-15201 WASHER, DRIVE GEAR
    WASHER, DRIVE GEAR
  • 50
    08211-17241 WASHER, DRIVE GEAR (RIGHT)
    WASHER, DRIVE GEAR (RIGHT)
  • 51
    24751-09F60 RETAINER, DRIVE SHAFT BEARING (RIGHT)
    RETAINER, DRIVE SHAFT BEARING (RIGHT)
  • 52
    09126-06011 SCREW, RETAINER
    SCREW, RETAINER
