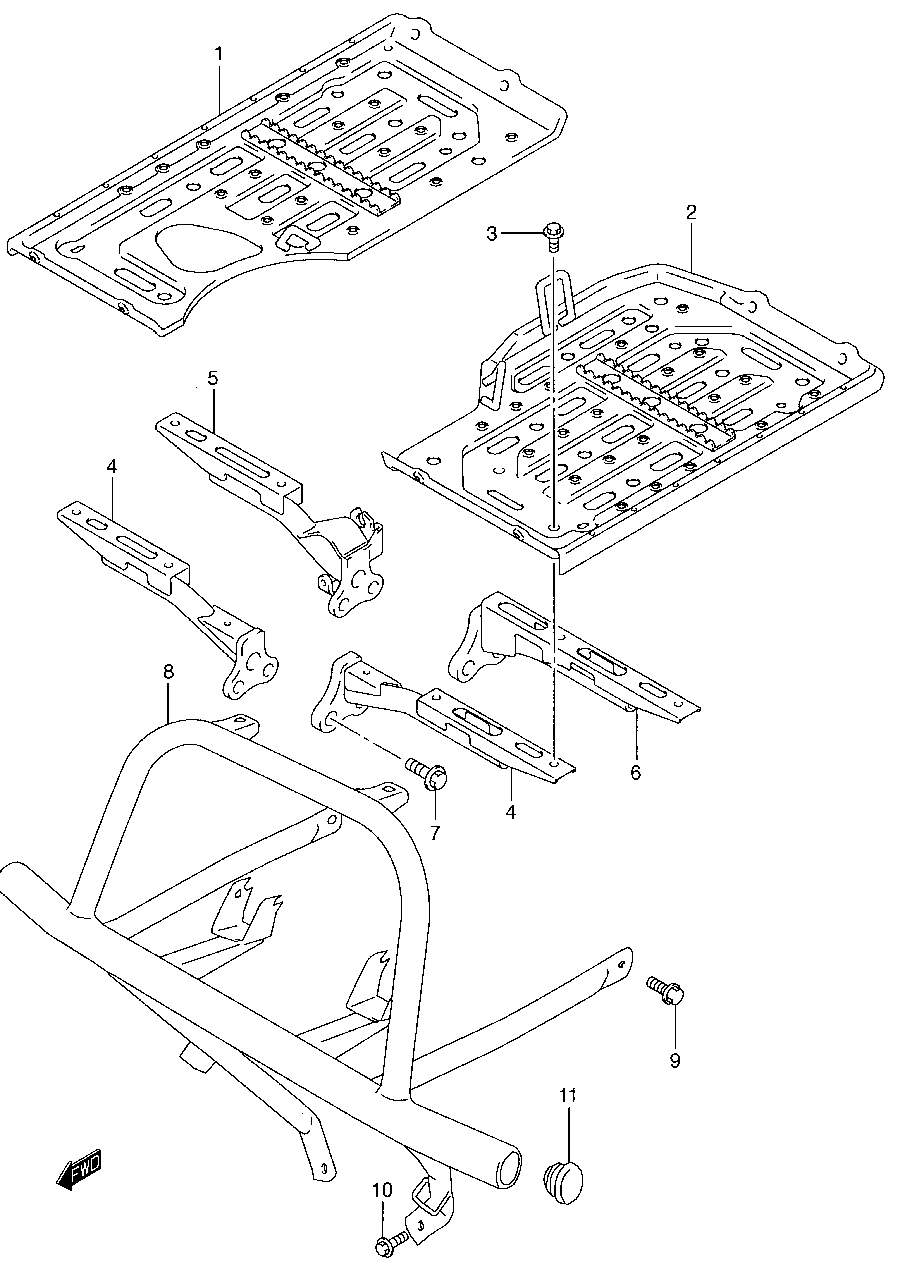

FOOTREST W/ BUMBER для Suzuki LT-A500FY 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
143510-09FA0 FOOTREST (FRONT) (RIGHT)FOOTREST (FRONT) (RIGHT)
-
243520-09FA0 FOOTREST (FRONT) (LEFT)FOOTREST (FRONT) (LEFT)
-
309118-06110 BOLT, PLATEBOLT, PLATE
-
443530-09FA0 BRACKET (FRONT)BRACKET (FRONT)
-
543550-09FA0 BRACKET (REAR) (RIGHT)BRACKET (REAR) (RIGHT)
-
643560-09FA0 BRACKET (REAR) (LEFT)BRACKET (REAR) (LEFT)
-
7-209103-10310 BOLT, BRACKETBOLT, BRACKET
-
8-243990-09F30-019 GRIP (FRONT) (BLACK)GRIP (FRONT) (BLACK)
-
901550-08203 BOLT (UPPER)BOLT (UPPER)
-
1009103-08266 BOLT (LOWER)BOLT (LOWER)
-
1143978-09F00 CAPCAP
