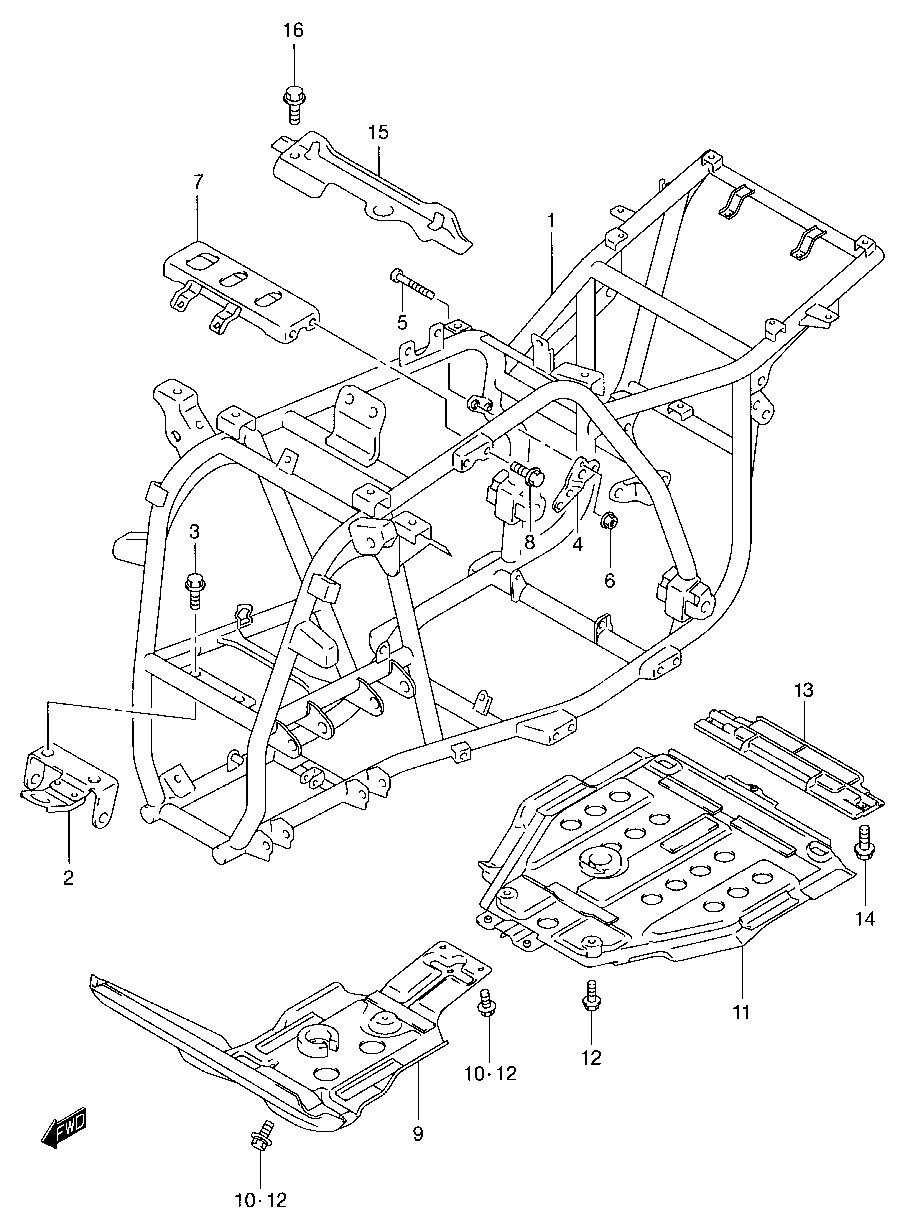

FRAME для Suzuki LT-A500FY 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
1-241100-09FC0-019 FRAME (BLACK)FRAME (BLACK)
-
241950-09FA0 PLATE, DIFFERENTIAL CASEPLATE, DIFFERENTIAL CASE
-
301550-10163 BOLTBOLT
-
441981-09FB0 PLATE, ENGINE MOUNT (RIGHT)PLATE, ENGINE MOUNT (RIGHT)
-
507130-08503 BOLTBOLT
-
608316-10063 NUTNUT
-
741990-09FA0 BRACKET, ENGINE MOUNT (UPPER)BRACKET, ENGINE MOUNT (UPPER)
-
801550-08163 BOLTBOLT
-
9-242521-09F40 PROTECTOR (FRONT)PROTECTOR (FRONT)
-
1009111-06063 BOLTBOLT
-
1142510-09FB0 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
12-209118-06110 BOLTBOLT
-
1342531-09F00 COVER, ENGINE (REAR)COVER, ENGINE (REAR)
-
14-209116-06151 BOLTBOLT
-
1541560-09F00 PLATE, BATTERYPLATE, BATTERY
-
1601550-08163 BOLTBOLT
