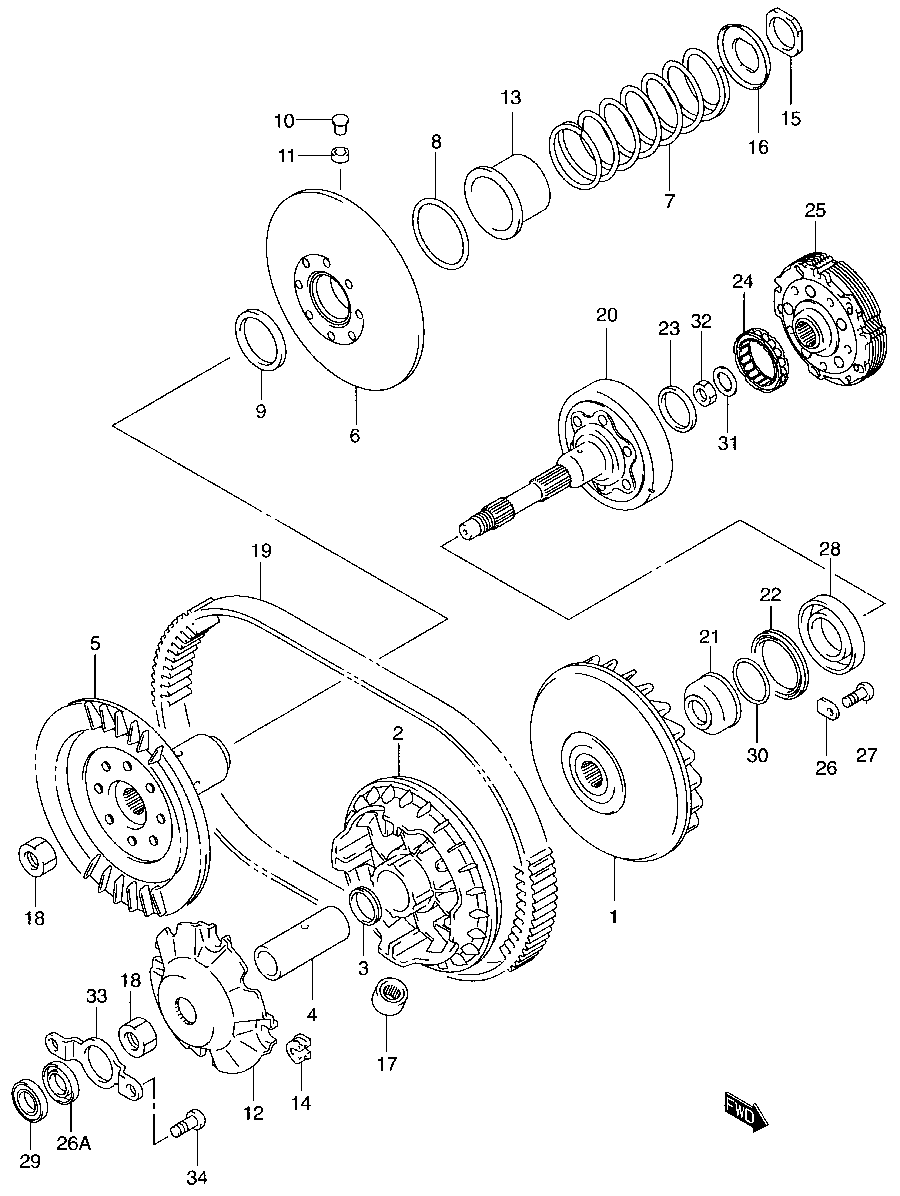

TRANSMISSION (1) для Suzuki LT-A500FY 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
121110-09F60 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221120-09F60 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
321124-09F50 SEAL, MOVABLE DRIVESEAL, MOVABLE DRIVE
-
421125-09F50 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521210-09F60 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
621240-09F60 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
721243-09F52 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
821245-15F00 O-RING, MOVABLE DRIVENO-RING, MOVABLE DRIVEN
-
921247-15F00 SEAL, MOVABLE DRIVENSEAL, MOVABLE DRIVEN
-
1021248-15F01 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-15F00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221431-09F50 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1321471-09F52 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1421481-14F00 DAMPER, MOVABLE DRIVEDAMPER, MOVABLE DRIVE
-
1521518-09F50 NUT, DRIVEN PULLYNUT, DRIVEN PULLY
-
1621519-09F52 HOLDER, MOVABLE DRIVENHOLDER, MOVABLE DRIVEN
-
1721650-09F60 ROLLER, MOVABLE DRIVEROLLER, MOVABLE DRIVE
-
1809140-20017 NUT, FACENUT, FACE
-
1927601-09F60 V BELT, DRIVEV BELT, DRIVE
-
2021100-09F60 HOUSING, CLUTCHHOUSING, CLUTCH
-
2121102-09F51 SPACER, FIXED DRIVE (LEFT)SPACER, FIXED DRIVE (LEFT)
-
2221104-09F52 SEAL, CLUTCH HOUSINGSEAL, CLUTCH HOUSING
-
2321105-09F50 SEAL, CLUTCH HOUSINGSEAL, CLUTCH HOUSING
-
2421273-44D00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
2521500-09F50 CLUTCH ASSY., SHOECLUTCH ASSY., SHOE
-
2624741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
26A24754-09F50 SEAL, CLUTCH HOUSING (RIGHT)SEAL, CLUTCH HOUSING (RIGHT)
-
2702112-06123 SCREW, RETAINERSCREW, RETAINER
-
2809262-40009 BEARINGBEARING
-
2909262-17048 BEARINGBEARING
-
3009280-40010 O-RING (D:2.4,ID:39.7)O-RING (D:2.4,ID:39.7)
-
3109160-18033 WASHER (18X30X2.5)WASHER (18X30X2.5)
-
3209140-18004 NUTNUT
-
3324751-09F60 RETAINER, BEARINGRETAINER, BEARING
-
3409126-06011 SCREWSCREW
