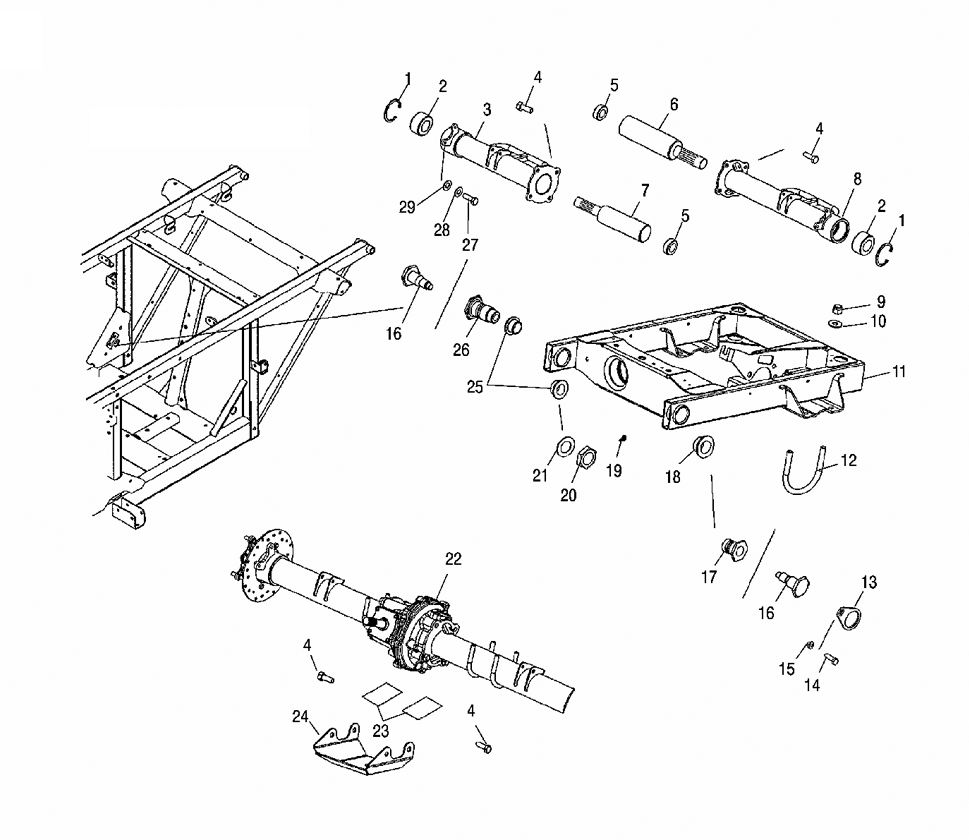

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска`
-
№АртикулНазвание
-
17710440 RING, RETAININGRING, RETAINING
-
23585502 BEARINGBEARING
-
31013293-067 TUBE AXLE, RIGHT HAND, BLACKTUBE AXLE, RIGHT HAND, BLACK
-
47517585 BOLT-1/2-13X1 1/4 HXHD GR5-ZBOLT-1/2-13X1 1/4 HXHD GR5-Z
-
55410772 O-RINGO-RING
-
61380213 ASM-DRIVESHAFT, AXLE, LEFT HANDASM-DRIVESHAFT, AXLE, LEFT HAND
-
71380214 ASM-DRIVESHAFT, AXLE, RIGHT HANDASM-DRIVESHAFT, AXLE, RIGHT HAND
-
81013292-067 TUBE AXLE, LEFT HAND, BLACKTUBE AXLE, LEFT HAND, BLACK
-
97542525 NUT, NYLOKNUT, NYLOK
-
107555984 WASHER, FLATWASHER, FLAT
-
111014992-067 WELD-SWING ARM, BLACKWELD-SWING ARM, BLACK
-
125245127 U-BOLT, RNDBND, 7/16X3.62X3.12X1U-BOLT, RNDBND, 7/16X3.62X3.12X1
-
135246229 KIT-BOLT, SWINGARMKIT-BOLT, SWINGARM
-
147512490 SCREWSCREW
-
157547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
165131697 BOLT, SWINGARM PIVOTBOLT, SWINGARM PIVOT
-
175133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
185434545 BUSHING-LEFT HAND, HYBRID, BLACKBUSHING-LEFT HAND, HYBRID, BLACK
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
207547082 NUT, HEX, JAMNUT, HEX, JAM
-
217556035 WASHER, FLATWASHER, FLAT
-
235811716 PAD-RUBBERPAD-RUBBER
-
245245665-067 PLATE-DIFFERENTIAL, SKID, BLACKPLATE-DIFFERENTIAL, SKID, BLACK
-
255434546 BUSHING-RIGHT HAND, HYBRID, BLACKBUSHING-RIGHT HAND, HYBRID, BLACK
-
265133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
277517445 SCREW [REAR CALIPER ATTACH]SCREW [REAR CALIPER ATTACH]
-
287552901 WASHER, SPRING LOCK [REAR CALIPER ATTACH]WASHER, SPRING LOCK [REAR CALIPER ATTACH]
-
297558402 WASHER, FLAT [REAR CALIPER ATTACH]WASHER, FLAT [REAR CALIPER ATTACH]
