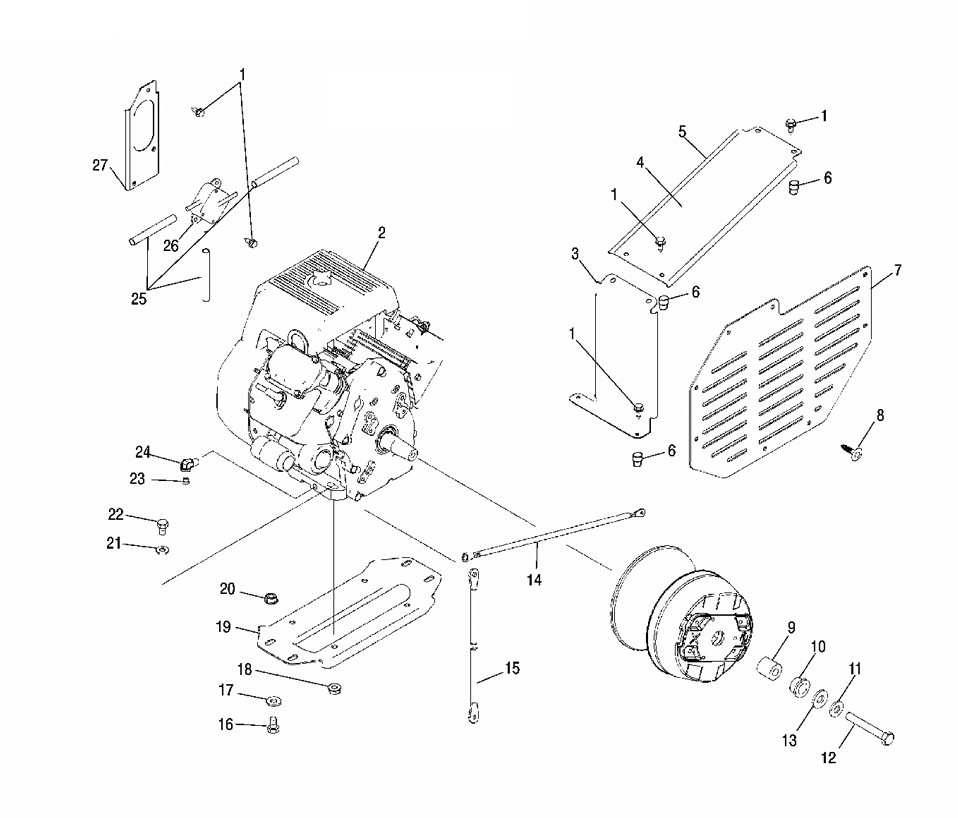

MOUNTING - ENGINE для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512232 BOLT
    BOLT
  • 2
    1203116 COVER
    COVER
  • 3
    5247212-067 SHIELD-CLUTCH/EXH, FRT, BLACK
    SHIELD-CLUTCH/EXH, FRT, BLACK
  • 4
    7172563 SHIELD
    SHIELD
  • 5
    5247211 SHIELD-CLUTCH/EXH, TOP
    SHIELD-CLUTCH/EXH, TOP
  • 6
    7542143 INSERT,
    INSERT,
  • 7
    5812491 GUARD-CLUTCH, SIDE
    GUARD-CLUTCH, SIDE
  • 8
    7517916 SCR-1/4-20X3/4-TR/TX/TAP-M
    SCR-1/4-20X3/4-TR/TX/TAP-M
  • 9
    5430261 BUSHING
    BUSHING
  • 10
    5132441 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 11
    7575202 WASHER LOCK
    WASHER LOCK
  • 12
    7512566 BOLT
    BOLT
  • 13
    5210748 WASHER
    WASHER
  • 14
    4011127 CABLE-BATTERY, GROUND, 78'' [NEGATIVE]
    CABLE-BATTERY, GROUND, 78'' [NEGATIVE]
  • 15
    4011128 CABLE-SOL/STARTER, 72''
    CABLE-SOL/STARTER, 72''
  • 16
    7517289 SCREW
    SCREW
  • 17
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 18
    7547108 NUT
    NUT
  • 19
    5247203-067 BRKT-ENGINE, BLACK
    BRKT-ENGINE, BLACK
  • 20
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 21
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 22
    7515528 BOLT
    BOLT
  • 23
    7052115 PLUG
    PLUG
  • 24
    7052304 FITTING-M14X1.5X7/16-20, P-80
    FITTING-M14X1.5X7/16-20, P-80
  • 25
    8450103 FUEL HOSE-250 CM
    FUEL HOSE-250 CM
  • 27
    5248744-067 BRKT-FUEL PUMP, BLACK
    BRKT-FUEL PUMP, BLACK
