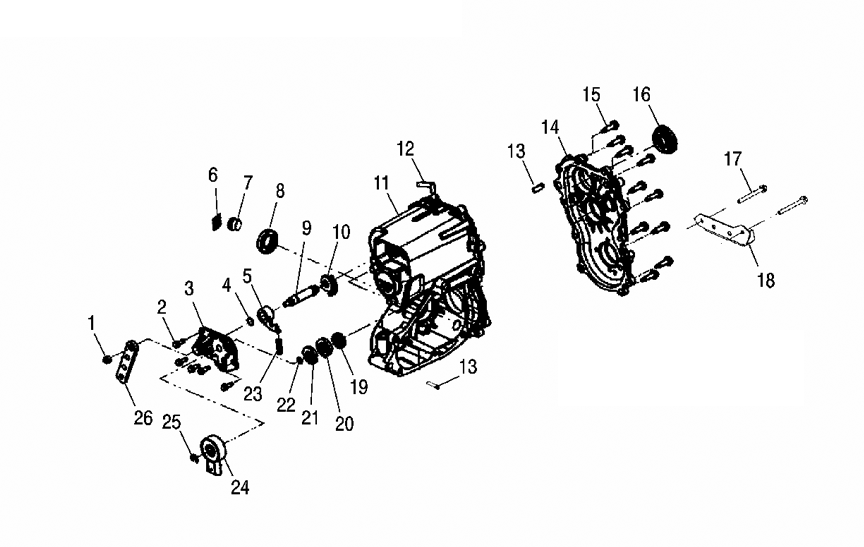

GEARCASE для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
13233961 NUT-LOCK HEX FLANGE NYLON 5/16NUT-LOCK HEX FLANGE NYLON 5/16
-
23233826 SCREWSCREW
-
33234188 COVER, GEARCASECOVER, GEARCASE
-
43233828 O-RINGO-RING
-
53233829 PAWL-DETENTPAWL-DETENT
-
63234143 LABEL-OIL FILL/LEVEL CHECKLABEL-OIL FILL/LEVEL CHECK
-
73233794 PLUG-HEX, HOLLOW, WITH O-RINGPLUG-HEX, HOLLOW, WITH O-RING
-
83233842 SEAL-VITON, TRIPLE LIPSEAL-VITON, TRIPLE LIP
-
93233831 SHAFT-SHIFTSHAFT-SHIFT
-
103233832 GEAR-SECTOR, 31T-CUT TO 11TGEAR-SECTOR, 31T-CUT TO 11T
-
113234129 GEARCASE-MAIN, MACHGEARCASE-MAIN, MACH
-
123234230 TUBE-VENT, 90-1/4'' HOSETUBE-VENT, 90-1/4'' HOSE
-
133233247 PIN, DOWELPIN, DOWEL
-
143234221 GEARCASE-LEFT HAND, MACHGEARCASE-LEFT HAND, MACH
-
153234114 SCR-TAPPING HEX WASHER HD 5/16SCR-TAPPING HEX WASHER HD 5/16
-
163233866 SEAL-VITON, DUAL LIPSEAL-VITON, DUAL LIP
-
173234042 SCREWSCREW
-
183234044 BRACKETBRACKET
-
193233839 GEAR-SECTOR, 16TGEAR-SECTOR, 16T
-
203233838 DISC-LOCKOUTDISC-LOCKOUT
-
213233837 DETENT-STARDETENT-STAR
-
223233836 O-RINGO-RING
-
233233830 SPRING-COMPRESSIONSPRING-COMPRESSION
-
243233835 SWITCH-ROTARY, 6 PINSWITCH-ROTARY, 6 PIN
-
253233834 RING-RETAININGRING-RETAINING
-
263233825 BELLCRANK-HLNRPBELLCRANK-HLNRP
-
1332352 ASM-GEARCASE, GEN 2, 4.71 H, 2X4ASM-GEARCASE, GEN 2, 4.71 H, 2X4
