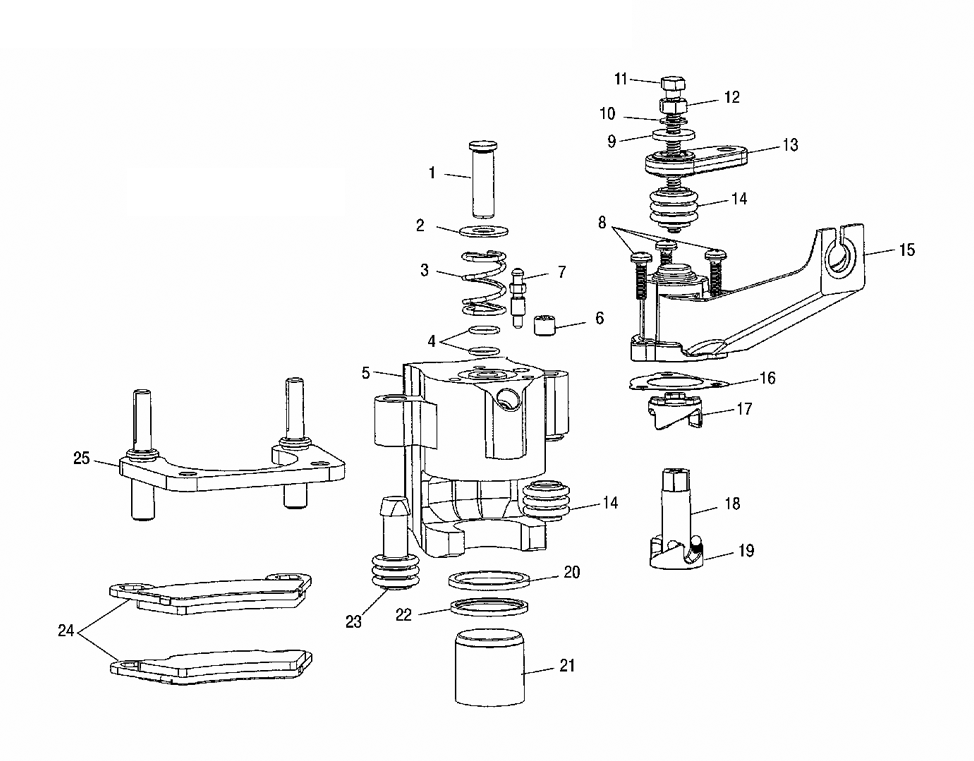

BRAKE CALIPERS - REAR для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5133195 PLUNGER-BRAKE
    PLUNGER-BRAKE
  • 2
    7556205 WSHR-FLAT, PLUNGER
    WSHR-FLAT, PLUNGER
  • 3
    1910581 SPRING-COMPRESSION
    SPRING-COMPRESSION
  • 4
    5412127 O-RING-1/16 C/SX3/8X1/2 OD
    O-RING-1/16 C/SX3/8X1/2 OD
  • 5
    1910860 ASM-CALIPER, BRAKE, 1.5, LEFT HAND, W/PB [INCL. 5-25]
    ASM-CALIPER, BRAKE, 1.5, LEFT HAND, W/PB [INCL. 5-25]
  • 5
    1910861 ASM-CALIPER, BRAKE, 1.5, RIGHT HAND, W/PB [INCL. 5-25]
    ASM-CALIPER, BRAKE, 1.5, RIGHT HAND, W/PB [INCL. 5-25]
  • 6
    7515489 SCR-3/8-24X5/16 SOC SET-Y
    SCR-3/8-24X5/16 SOC SET-Y
  • 7
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
  • 8
    7517963 SCR-10-32X.62 PHILLIPS SIMS
    SCR-10-32X.62 PHILLIPS SIMS
  • 9
    7556206 WSHR-1/4'' FLAT, .060 THK
    WSHR-1/4'' FLAT, .060 THK
  • 10
    7552605 WASHER
    WASHER
  • 11
    7517964 BOLT-1/4-20X2 1/2 LG HEX HEAD
    BOLT-1/4-20X2 1/2 LG HEX HEAD
  • 12
    7542105 NUT HEX
    NUT HEX
  • 13
    5133196 LEVER-BRAKE ACTUATOR
    LEVER-BRAKE ACTUATOR
  • 14
    5410494 BOOT-PIN SEAL [IF BUILT BEFORE 10/17/05]
    BOOT-PIN SEAL [IF BUILT BEFORE 10/17/05]
  • 14
    5412506 BOOT-PIN SEAL [IF BUILT AFTER 10/17/05]
    BOOT-PIN SEAL [IF BUILT AFTER 10/17/05]
  • 15
    5245793 BRKT-HOUSING, LEFT HAND
    BRKT-HOUSING, LEFT HAND
  • 15
    5245794 BRKT-HOUSING, RIGHT HAND
    BRKT-HOUSING, RIGHT HAND
  • 16
    5830214 GASKET-RAMP
    GASKET-RAMP
  • 17
    5133199 INSERT-BALL TRACK, LEFT HAND
    INSERT-BALL TRACK, LEFT HAND
  • 17
    5133201 INSERT-BALL TRACK, RIGHT HAND
    INSERT-BALL TRACK, RIGHT HAND
  • 18
    5133202 BRAKE-ACTUATOR, LEFT HAND
    BRAKE-ACTUATOR, LEFT HAND
  • 18
    5133203 BRAKE-ACTUATOR, RIGHT HAND
    BRAKE-ACTUATOR, RIGHT HAND
  • 19
    3514375 BALL-.187 STEEL
    BALL-.187 STEEL
  • 20
    5411596 SEAL-CALIPER, INNER, 1.25''
    SEAL-CALIPER, INNER, 1.25''
  • 21
    5132405 PISTON-CALIPER, 1.25
    PISTON-CALIPER, 1.25
  • 22
    5411597 SEAL-CALIPER, OUTER, 1.25''
    SEAL-CALIPER, OUTER, 1.25''
  • 23
    5410495 BOOT-PIN BUSHING [IF BUILT BEFORE 10/17/05]
    BOOT-PIN BUSHING [IF BUILT BEFORE 10/17/05]
  • 23
    5412505 BOOT-PIN BUSHING [IF BUILT AFTER 10/17/05]
    BOOT-PIN BUSHING [IF BUILT AFTER 10/17/05]
  • 24
    2202413 KIT-BRAKE PAD, ASM, 1.5
    KIT-BRAKE PAD, ASM, 1.5
  • 25
    1910802 ASM-CALIPER MOUNT
    ASM-CALIPER MOUNT
