STARTING MOTOR для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-

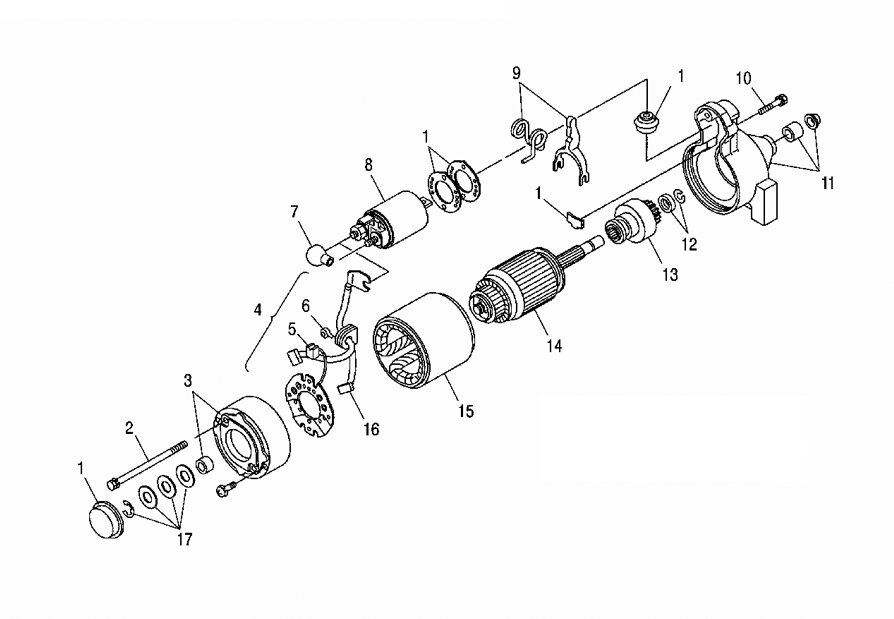

№АртикулНазвание
-
-3088464 ASM-STARTING MOTOR [INCL. ALL]ASM-STARTING MOTOR [INCL. ALL]
-
13088322 KIT-DUST COVERKIT-DUST COVER
-
23088277 BOLT, THROUGHBOLT, THROUGH
-
33088465 ASM-REAR COVERASM-REAR COVER
-
43088320 ASM-BRUSH HOLDER [INCL. 5, 6, 16]ASM-BRUSH HOLDER [INCL. 5, 6, 16]
-
53088295 BRUSH(-)BRUSH(-)
-
63088296 SPRING-BRUSHSPRING-BRUSH
-
73088278 CAP-RUBBERCAP-RUBBER
-
83088467 ASM-MAGNETIC SWITCHASM-MAGNETIC SWITCH
-
93088300 KIT-SHIFT LEVERKIT-SHIFT LEVER
-
103088469 BOLTBOLT
-
113088463 ASM-GEAR CASEASM-GEAR CASE
-
123088279 PINION-STOPPER SETPINION-STOPPER SET
-
133088319 ASM-PINIONASM-PINION
-
143088466 ASM-ARMATUREASM-ARMATURE
-
153088323 ASM-YOKEASM-YOKE
-
163088321 BRUSH-SETBRUSH-SET
-
173088468 KIT-THRUST WASHERKIT-THRUST WASHER
