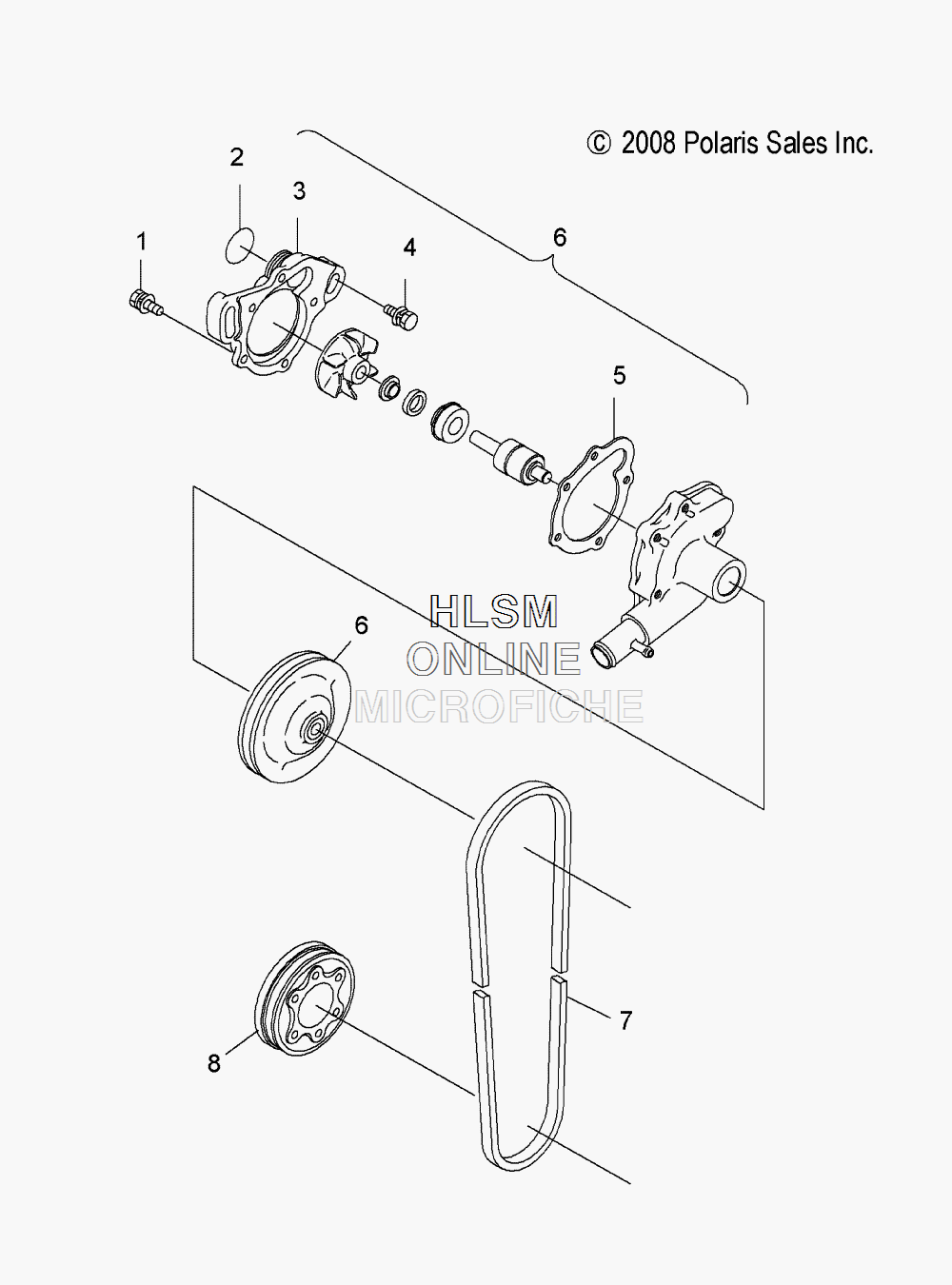

WATER PUMP для Polaris WIDETRAK LX INTL [S13SU4BEL] - 2013 года выпуска
-
№АртикулНазвание
-
13084221 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
23082746 O-RINGO-RING
-
33083683 PUMP CASING 2PUMP CASING 2
-
43083370 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
53083367 GASKET, WATER PUMPGASKET, WATER PUMP
-
63083471 ASM., WATER PUMP (INCL. 1-3,5)ASM., WATER PUMP (INCL. 1-3,5)
-
73082747 BELTBELT
-
83083371 PULLEY, DRIVEPULLEY, DRIVE
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR W/CHOKE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL TANK W/FUEL LINES
- GEARCASE ASSEMBLY (1 OF 2)
- GEARCASE ASSEMBLY (2 OF 2)
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD W/HINGE AND BRACE ASSEMBLY
- JACKSHAFT ASSEMBLY
- NOSEPAN W/FOIL ASSEMBLY
- NOSEPAN/BUMPER
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RACK ASSEMBLY W/SNOWFLAP
- SEAT ASSEMBLY
- SEAT RISER
- SHIFT LINKAGE ASSEMBLY 4X6
- SKI ASSEMBLY
- SPEEDOMETER W/INDICATOR LIGHTS
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR ASSEMBLY
- STEERING - LOWER
- SUSPENSION - COUPLER LINK
- SUSPENSION - EXTENSION
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- TOOL KIT W/OWNERS MANUAL
- TORQUE ARM - REAR W/ PIVOT ARM
- TUNNEL ASSEMBLY
- • WATER PUMP
- WIRE HARNESS W/COMPONENTS
