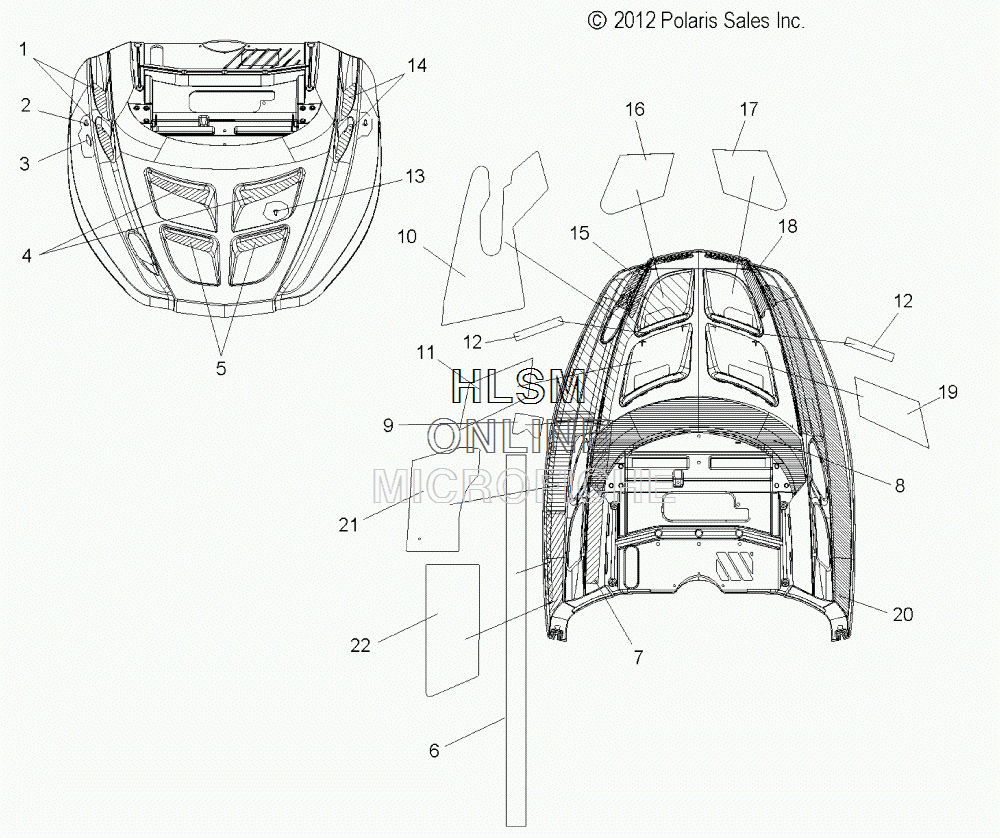

HOOD - FOAM/FOIL для Polaris WIDETRAK LX INTL [S13SU4BEL] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5242858-067 SCREEN, HOOD, RIGHT HAND
    SCREEN, HOOD, RIGHT HAND
  • 2
    7511864 SCREW
    SCREW
  • 3
    7670040 CLIP, U-TYPE
    CLIP, U-TYPE
  • 4
    5243108-067 SCREEN, HOOD, FRONT, UPPER, LEFT HAND
    SCREEN, HOOD, FRONT, UPPER, LEFT HAND
  • 4
    5243109-067 SCREEN, HOOD, FRONT, UPPER, RIGHT HAND
    SCREEN, HOOD, FRONT, UPPER, RIGHT HAND
  • 5
    5243110-067 SCREEN, HOOD, FRONT, LOWER, LEFT HAND
    SCREEN, HOOD, FRONT, LOWER, LEFT HAND
  • 5
    5243111-067 SCREEN, HOOD, FRONT, LOWER, RIGHT HAND
    SCREEN, HOOD, FRONT, LOWER, RIGHT HAND
  • 6
    5811612 FOIL, HOOD, RIGHT HAND
    FOIL, HOOD, RIGHT HAND
  • 7
    5811721 FOIL, HOOD, RIGHT HAND
    FOIL, HOOD, RIGHT HAND
  • 8
    5811609 FOAM, HOOD, CENTER
    FOAM, HOOD, CENTER
  • 9
    5811703 FOIL, HOOD TAB, REINFORCEMENT
    FOIL, HOOD TAB, REINFORCEMENT
  • 10
    5813462 FOIL, HEAT SHIELD, HOOD, FR, RIGHT HAND
    FOIL, HEAT SHIELD, HOOD, FR, RIGHT HAND
  • 11
    5811621 FOIL, TAPE, UPPER LOUVER, RIGHT HAND
    FOIL, TAPE, UPPER LOUVER, RIGHT HAND
  • 12
    5811750 FOIL, LOUVER EDGE, FRONT
    FOIL, LOUVER EDGE, FRONT
  • 13
    7621334 RIVET
    RIVET
  • 14
    5242857-067 SCREEN, HOOD, LEFT HAND
    SCREEN, HOOD, LEFT HAND
  • 15
    5811752 FOIL, HINGE MOUNT, RIGHT HAND
    FOIL, HINGE MOUNT, RIGHT HAND
  • 16
    5811616 FOIL, TAPE
    FOIL, TAPE
  • 17
    5811748 FOIL, TAPE, LOWER, LEFT HAND
    FOIL, TAPE, LOWER, LEFT HAND
  • 18
    5811751 FOIL, HINGE MOUNT, LEFT HAND
    FOIL, HINGE MOUNT, LEFT HAND
  • 19
    5811749 FOIL, TAPE, LOUVER, UPPER, LEFT HAND
    FOIL, TAPE, LOUVER, UPPER, LEFT HAND
  • 20
    5811607 FOAM, HOOD, LEFT HAND
    FOAM, HOOD, LEFT HAND
  • 21
    5813835 FOIL, HEAT SHIELD, HOOD, FR
    FOIL, HEAT SHIELD, HOOD, FR
  • 22
    5813836 FOIL, HEAT SHIELD, HOOD, RR
    FOIL, HEAT SHIELD, HOOD, RR
