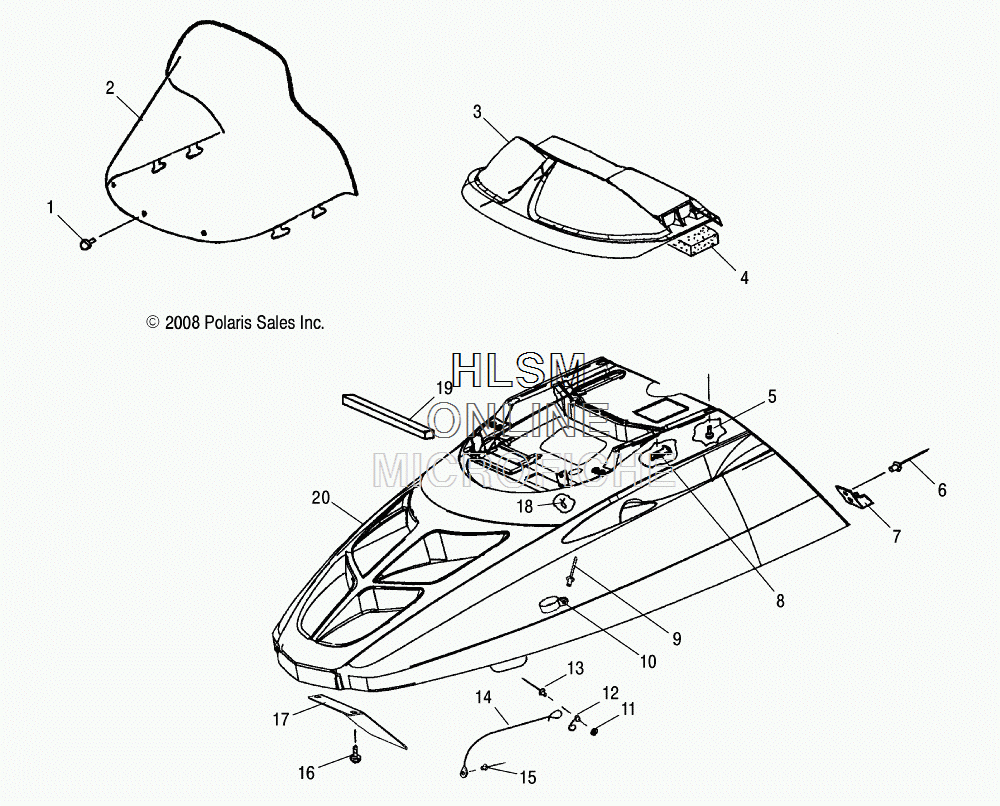

HOOD ASSEMBLY W/ WINDSHIELD для Polaris WIDETRAK LX INTL [S13SU4BEL] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET
    RIVET
  • 2
    5433168 WINDSHIELD, FLARED, CLEAR, 20 INCH
    WINDSHIELD, FLARED, CLEAR, 20 INCH
  • 3
    2632596 ASM., HOUSING, INSTRUMENT (INCL. WARNING DECALS)
    ASM., HOUSING, INSTRUMENT (INCL. WARNING DECALS)
  • 4
    5811625 FOAM, PRE-FILTER
    FOAM, PRE-FILTER
  • 5
    7517441 SCREW
    SCREW
  • 6
    7621334 RIVET
    RIVET
  • 7
    5430733 CUP, HOOD LATCH
    CUP, HOOD LATCH
  • 8
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 9
    7621485 RIVET
    RIVET
  • 10
    7080833 CLAMP
    CLAMP
  • 11
    7555904 WASHER
    WASHER
  • 12
    5242893 CLIP, PIGTAIL
    CLIP, PIGTAIL
  • 13
    7661084 RIVET
    RIVET
  • 14
    7081732 CABLE, HOOD
    CABLE, HOOD
  • 15
    7621402 RIVET
    RIVET
  • 16
    7512068 SCREW
    SCREW
  • 17
    5243393 DEFLECTOR, AIR
    DEFLECTOR, AIR
  • 18
    7080886 CLIP, ROSEBUD (GRAY)
    CLIP, ROSEBUD (GRAY)
  • 19
    5811687 FOAM, SEAL, HEADLIGHT
    FOAM, SEAL, HEADLIGHT
  • 20
    2633394-599 ASM. HOOD, SVC, WHITE LIGHTNING (INCL. FOAM/FOIL)
    ASM. HOOD, SVC, WHITE LIGHTNING (INCL. FOAM/FOIL)
