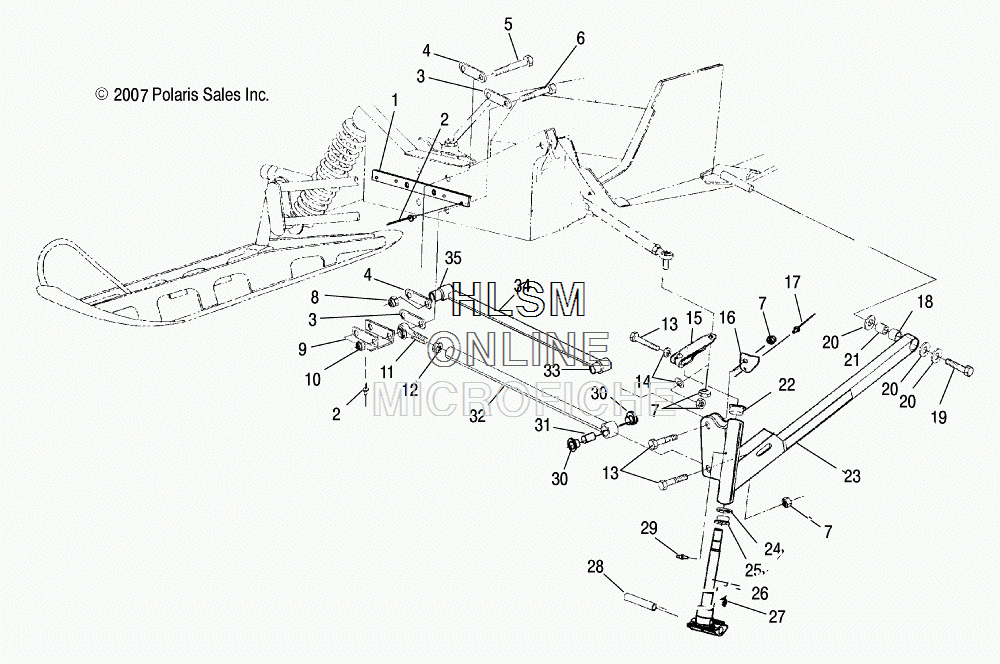

SUSPENSION - FRONT для Polaris WIDETRAK LX INTL [S13SU4BEL] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5240349-067 BRACE, BULKHEAD
    BRACE, BULKHEAD
  • 2
    7661637 RIVET
    RIVET
  • 3
    5211345 STRAP, SPACER, BOTTOM
    STRAP, SPACER, BOTTOM
  • 4
    5211344 STRAP, SPACER, TOP
    STRAP, SPACER, TOP
  • 5
    7512582 SCREW
    SCREW
  • 6
    7512678 BOLT
    BOLT
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7547066 NUT, NYLON
    NUT, NYLON
  • 9
    5242578 BRACKET, RADIUS ROD, BOTTOM
    BRACKET, RADIUS ROD, BOTTOM
  • 10
    7547065 NUT, NYLON
    NUT, NYLON
  • 11
    7061071 ROD END (RIGHT HAND)
    ROD END (RIGHT HAND)
  • 12
    7542711 NUT, JAM
    NUT, JAM
  • 13
    7517583 SCREW
    SCREW
  • 14
    7555832 WASHER
    WASHER
  • 15
    5220326-458 ARM, STEERING (BLACK)
    ARM, STEERING (BLACK)
  • 16
    5241569-458 STOP, STEERING, LEFT HAND (BLACK)
    STOP, STEERING, LEFT HAND (BLACK)
  • 16
    5241570-458 STOP, STEERING, RIGHT HAND (BLACK)
    STOP, STEERING, RIGHT HAND (BLACK)
  • 17
    7661130 RIVET
    RIVET
  • 18
    5410872 PIVOT, RUBBER
    PIVOT, RUBBER
  • 19
    7519373 SCREW
    SCREW
  • 20
    7556156 WASHER
    WASHER
  • 21
    5010310 BUSHING
    BUSHING
  • 22
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 23
    1823291-458 ASM., TRAILING ARM, LEFT HAND (BLACK) (INCL. 18,21)
    ASM., TRAILING ARM, LEFT HAND (BLACK) (INCL. 18,21)
  • 23
    1823292-458 ASM., TRAILING ARM, RIGHT HAND (BLACK) (INCL. 18,21)
    ASM., TRAILING ARM, RIGHT HAND (BLACK) (INCL. 18,21)
  • 24
    7556509 BUSHING
    BUSHING
  • 25
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 26
    6230102-458 SHAFT, SPINDLE, TRAILING (BLACK)
    SHAFT, SPINDLE, TRAILING (BLACK)
  • 27
    7080306 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 28
    5010158 BUSHING
    BUSHING
  • 29
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 30
    5010127 BUSHING
    BUSHING
  • 31
    5431486 BUSHING, PIVOT, RADIUS ROD, OUTER
    BUSHING, PIVOT, RADIUS ROD, OUTER
  • 32
    1822444-458 ROD, RADIUS, LOWER (BLACK)
    ROD, RADIUS, LOWER (BLACK)
  • 33
    5411099 BUSHING, RADIUS ROD PIVOT
    BUSHING, RADIUS ROD PIVOT
  • 34
    1822420-458 ASM., ROD, RADIUS, UPPER, FIXED (BLACK) (INCL. 33,35)
    ASM., ROD, RADIUS, UPPER, FIXED (BLACK) (INCL. 33,35)
  • 35
    5411095 BUSHING, PIVOT
    BUSHING, PIVOT
