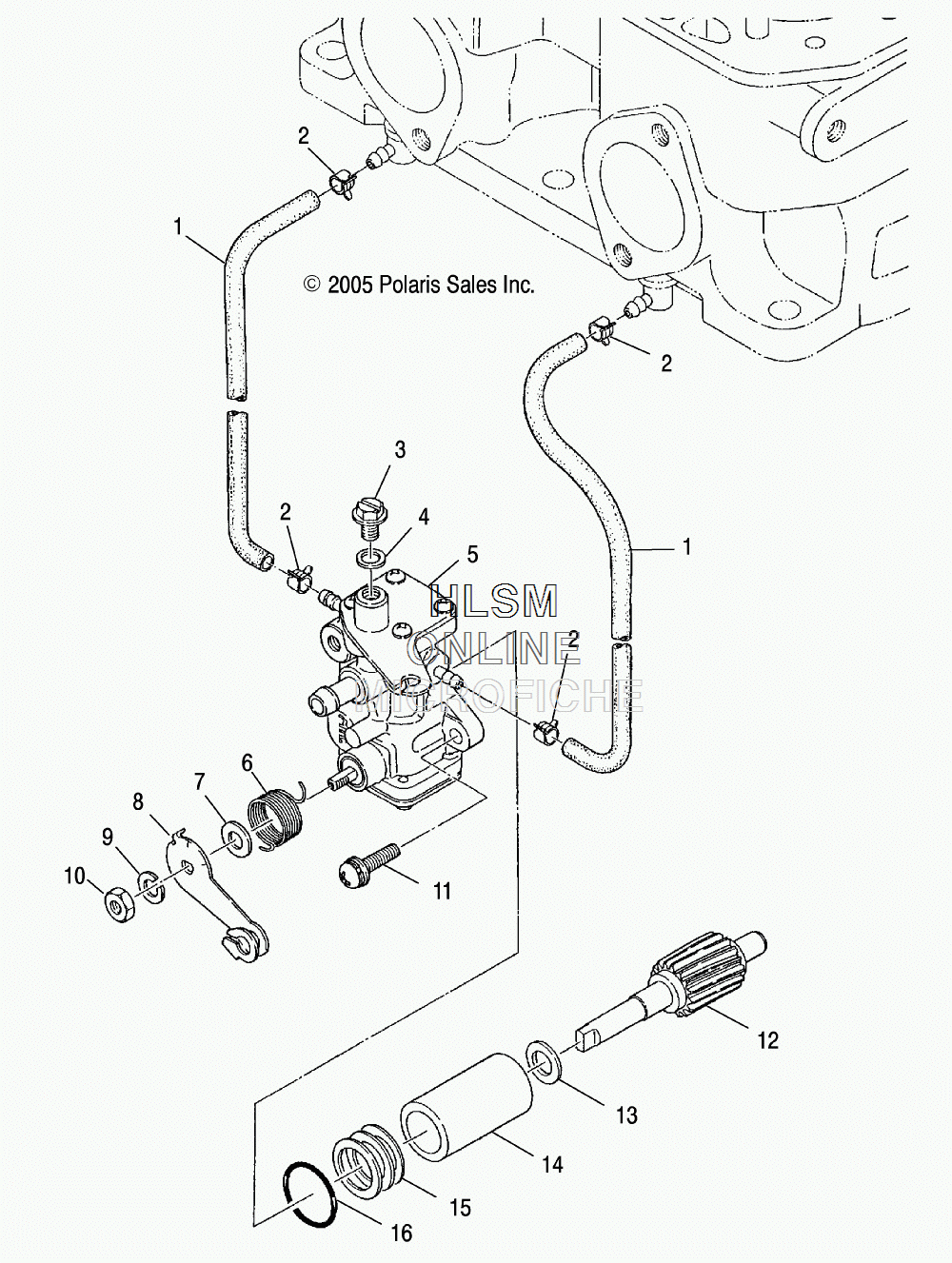

OIL PUMP ASSEMBLY для Polaris WIDETRAK LX INTL [S13SU4BEL] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3085471 VINYL PIPE 2 COMPL.
    VINYL PIPE 2 COMPL.
  • 1
    3085591 VINYL PIPE 2
    VINYL PIPE 2
  • 2
    3083141 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    3083125 SCREW, AIR VENT
    SCREW, AIR VENT
  • 4
    3083126 PACKING
    PACKING
  • 5
    3084013 ASM., OIL PUMP (INCL. 3-10,16)
    ASM., OIL PUMP (INCL. 3-10,16)
  • 6
    3087210 SPRING, RETURN
    SPRING, RETURN
  • 7
    3083445 COLLAR, CAM SHAFT
    COLLAR, CAM SHAFT
  • 8
    3084014 LEVER, CONTROL
    LEVER, CONTROL
  • 9
    3083121 WASHER, SPRING
    WASHER, SPRING
  • 10
    3083120 NUT
    NUT
  • 11
    3083783 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 12
    3090198 GEAR, SMALL
    GEAR, SMALL
  • 13
    3083130 SPACER
    SPACER
  • 14
    3083353 BUSHING, OIL PUMP
    BUSHING, OIL PUMP
  • 15
    3083671 SPACER 1 (.15MM)
    SPACER 1 (.15MM)
  • 15
    3083672 SPACER 2 (.3MM)
    SPACER 2 (.3MM)
  • 15
    3083673 SPACER 3 (.6MM)
    SPACER 3 (.6MM)
  • 16
    3083127 O-RING
    O-RING
