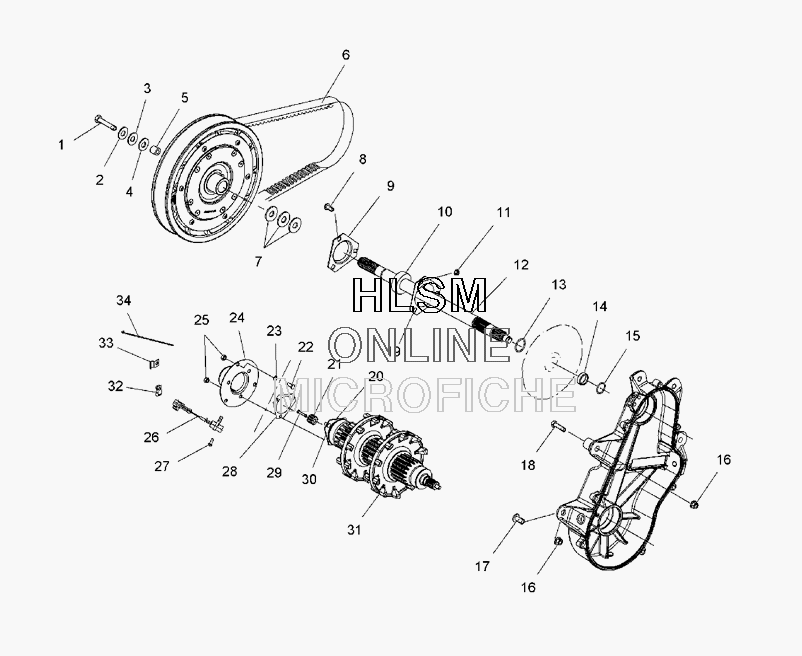

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 IQ (S08PB8ES) - 2008 года выпуска`
-
№АртикулНазвание
-
17517581 SCREWSCREW
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55135611 SPACER-INPUT SHAFT, .875 OD ALSPACER-INPUT SHAFT, .875 OD AL
-
63211115 BELT-DRIVE, 11.5CD, CVTBELT-DRIVE, 11.5CD, CVT
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
95247680 FLANGETTE-.100 OFFSETFLANGETTE-.100 OFFSET
-
103514617 BEARING-1XM52XM15, SPHBEARING-1XM52XM15, SPH
-
117542343 NUT, FLANGENUT, FLANGE
-
121332336 JACKSHAFT ASM, 15/21 SPL W/BRG (INCL. 10, 13)JACKSHAFT ASM, 15/21 SPL W/BRG (INCL. 10, 13)
-
137710422 RING, RETAININGRING, RETAINING
-
145135231 SLEEVE-SEAL, 45 DEGREE CHAMFERSLEEVE-SEAL, 45 DEGREE CHAMFER
-
155410613 O RINGO RING
-
167547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
177518494 BOLT-CARR 3/8-16X1.00 GR5-YBOLT-CARR 3/8-16X1.00 GR5-Y
-
187518268 BOLT-CARRIAGE, 3/8-16X1.75-YBOLT-CARRIAGE, 3/8-16X1.75-Y
-
195222751 FLANGETTEFLANGETTE
-
203514448 BEARING-25MM SPH OD LUBEBEARING-25MM SPH OD LUBE
-
215240013 WHEEL-PICKUP, SPEEDO, 9 TOOTHWHEEL-PICKUP, SPEEDO, 9 TOOTH
-
227518049 BOLT-CARR 5/16-18X5/8 GR5-YBOLT-CARR 5/16-18X5/8 GR5-Y
-
237547030 PALNUTPALNUT
-
245246960 HOUSING-DRIVE PICKUPHOUSING-DRIVE PICKUP
-
257542324 NUT, NYLOKNUT, NYLOK
-
262410376 SENSOR-SPEED PICKUPSENSOR-SPEED PICKUP
-
277512232 BOLTBOLT
-
285811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
297516733 SCREWSCREW
-
301014299 ASM-FLANGETTE W/SCREWSASM-FLANGETTE W/SCREWS
-
311590411 ASM-DRVSHAFT TUBULAR 9T REINFASM-DRVSHAFT TUBULAR 9T REINF
-
327080367 CLAMP, CABLECLAMP, CABLE
-
337080963 RETAINER-''J''CLPRETAINER-''J''CLP
-
347080138 CABLE TIECABLE TIE
