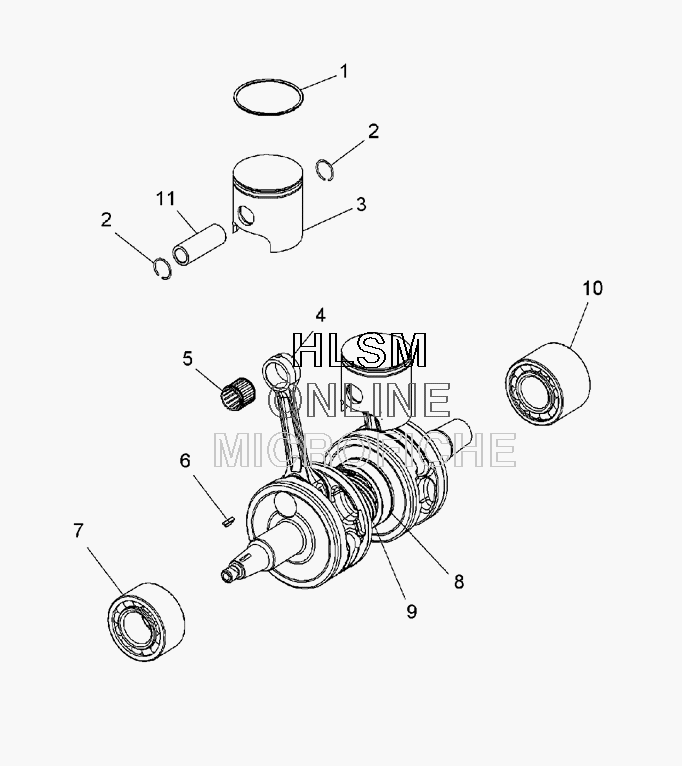

CRANKSHAFT ASSY. W/ PISTON для Polaris 800 IQ (S08PB8ES) - 2008 года выпуска
-
№АртикулНазвание
-
-2203717 KIT-CRANKSHAFT (INC 4,5,7-10)KIT-CRANKSHAFT (INC 4,5,7-10)
-
12203607 KIT-PISTON RINGS 85MM 1/2KEYKIT-PISTON RINGS 85MM 1/2KEY
-
23021840 CIRCLIP-PISTON 22MM X 1.5CIRCLIP-PISTON 22MM X 1.5
-
32203605 KIT-PISTON 3021839 (INC 1,2,11)KIT-PISTON 3021839 (INC 1,2,11)
-
42203584 KIT-CON ROD ASM, 5135789KIT-CON ROD ASM, 5135789
-
55135892 BEARING-20NDL, 29X36X18, CRKPINBEARING-20NDL, 29X36X18, CRKPIN
-
67721117 KEY, WOODRUFFKEY, WOODRUFF
-
73514499 BEARING-BALL, DBLROW 35X72X36.5BEARING-BALL, DBLROW 35X72X36.5
-
83514363 BEARING-BALL, 35X72X20, SL, KOYOBEARING-BALL, 35X72X20, SL, KOYO
-
95133689 GEAR-PUMP DRIVE 10 STARTGEAR-PUMP DRIVE 10 START
-
103514587 BEARING-BALL, 35X72X48BEARING-BALL, 35X72X48
Все узлы модели:
- AIR BOX ASSEMBLY
- BRAKE ASSEMBLY
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS - FRONT - UPPER
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- • CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL COMPONENTS MOUNTING
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK ASSEMBLY
- RECOIL STARTER
- SEAT
- SKI ASSEMBLY
- STATOR - FLYWHEEL
- STEERING - LOWER
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD
- WIRING HARNESS
