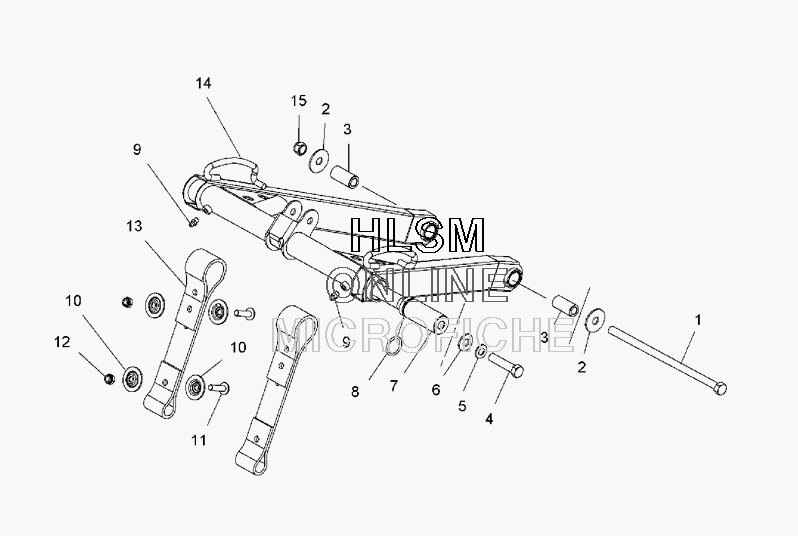

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 IQ (S08PB8ES) - 2008 года выпуска
-
№АртикулНазвание
-
17518339 SCR-7/16-20X9.875 HXHD GR5-YSCR-7/16-20X9.875 HXHD GR5-Y
-
27556156 WASHER, .483X1.37X.083WASHER, .483X1.37X.083
-
35133365 SHAFT-.750X.453X1.550SHAFT-.750X.453X1.550
-
47518261 SCR-7/16-14X2.00 HXCP-P80-GR5YSCR-7/16-14X2.00 HXCP-P80-GR5Y
-
57552614 WASHER, LOCKWASHER, LOCK
-
67555984 WASHER, FLATWASHER, FLAT
-
75133892 SHAFT-FTA, UPPER, SCIONSHAFT-FTA, UPPER, SCION
-
85411411 O-RINGO-RING
-
97080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
105220646 WASHER, DOMEDWASHER, DOMED
-
117518070 SCR-5/16-18X1, TRX, GR5, YSCR-5/16-18X1, TRX, GR5, Y
-
127542344 NUT, NYLOKNUT, NYLOK
-
135412818 STRAP-LIMITERSTRAP-LIMITER
-
141541948-067 ASM-FTA, SCION, BLACKASM-FTA, SCION, BLACK
-
157542503 NUT, FLEXLOCK,NUT, FLEXLOCK,
