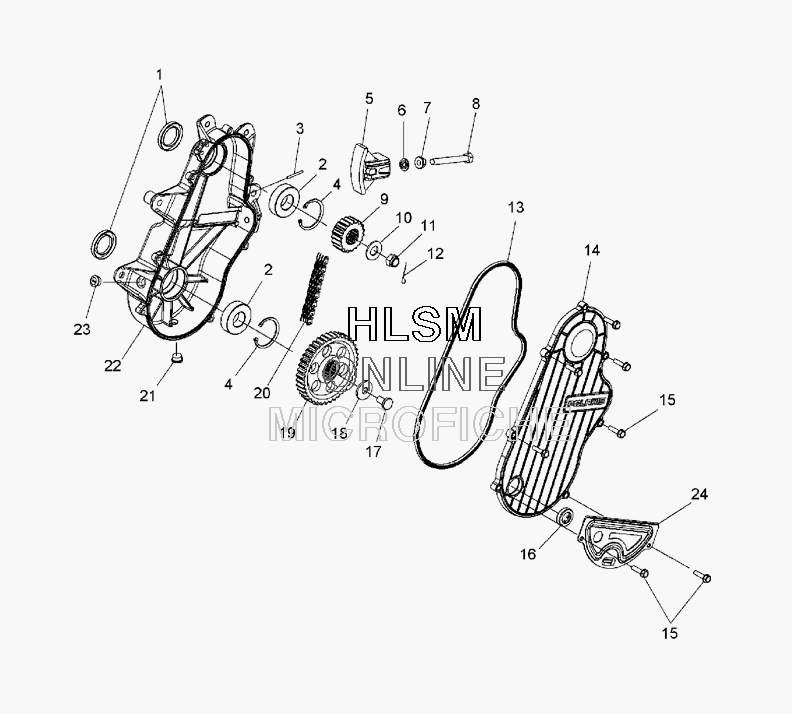

CHAINCASE ASSEMBLY для Polaris 800 IQ (S08PB8ES) - 2008 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
23514309 BEARING, BALL #6205BEARING, BALL #6205
-
37661867 PIN-ROLL, 125''X1.25''PIN-ROLL, 125''X1.25''
-
47718406 RING, RETAININGRING, RETAINING
-
51332427 ASM-TIGHTENER, CHAIN, VESPELASM-TIGHTENER, CHAIN, VESPEL
-
67556340 WASHER-THREAD SEAL, 3/8-16-UNCWASHER-THREAD SEAL, 3/8-16-UNC
-
77547304 NUT-3/8-16 HX FLG GRF ZYNUT-3/8-16 HX FLG GRF ZY
-
87515551 SCREWSCREW
-
93221102 SPKT, 25T, 3/4W, 15 SPL, HV, PMSPKT, 25T, 3/4W, 15 SPL, HV, PM
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117547202 NUT-5/8-18 THIN, NYL INSERT-YNUT-5/8-18 THIN, NYL INSERT-Y
-
127661203 PIN, COTTERPIN, COTTER
-
135812755 GASKET-CHAINCASE COVER, 8.373GASKET-CHAINCASE COVER, 8.373
-
141332354 ASM-COVER, 8.373 W/SIGHT GLASSASM-COVER, 8.373 W/SIGHT GLASS
-
157512225 SCREWSCREW
-
163610126 OIL CHECK-SIGHT GLASSOIL CHECK-SIGHT GLASS
-
177518717 SCR-3/8-24X.75 HXHD/NYL GR8SCR-3/8-24X.75 HXHD/NYL GR8
-
187556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
193222099 SPKT, 40T, 15T SPL, HYVO, PMSPKT, 40T, 15T SPL, HYVO, PM
-
203221110 CHAIN, HYVO 72P, 3/4WCHAIN, HYVO 72P, 3/4W
-
217052394 PLUG-MAGNETICPLUG-MAGNETIC
-
225134817 CHAINCASE-8.373 CD, MACHCHAINCASE-8.373 CD, MACH
-
237052382 PLUG-9/16-20-UN2A, MAGNETIZEDPLUG-9/16-20-UN2A, MAGNETIZED
-
245251316-329 KIT-COVER CHAINCASE BRACKETKIT-COVER CHAINCASE BRACKET
