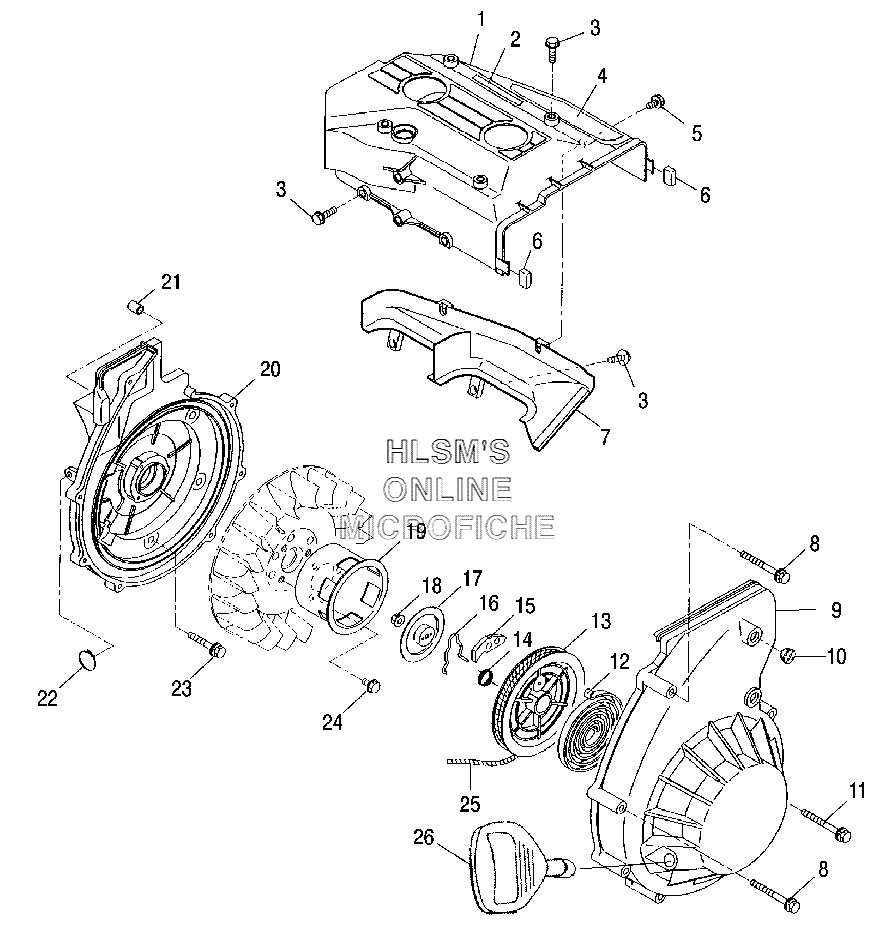

BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска`
-
№АртикулНазвание
-
13086991 BAFFLE ASSY 1 CYLINDERBAFFLE ASSY 1 CYLINDER
-
27079511 DECAL ''POLARIS'', ENGINE SHROUDDECAL ''POLARIS'', ENGINE SHROUD
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
47079510 DECAL ''550'', ENGINE SHROUDDECAL ''550'', ENGINE SHROUD
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
73085691 BAFFLE #2, CYLINDERBAFFLE #2, CYLINDER
-
83083550 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93087206 STARTER RECOIL ASSY (INCL. 12 18, 25)STARTER RECOIL ASSY (INCL. 12 18, 25)
-
93087180 STARTER CASE COMP.STARTER CASE COMP.
-
103086792 PLUG, RUBBERPLUG, RUBBER
-
113082030 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
123083376 SPRING, SPIRALSPRING, SPIRAL
-
133083377 REELREEL
-
143083463 SPRING, RETURNSPRING, RETURN
-
153087207 RATCHETRATCHET
-
163083379 SPRING, FRICTIONSPRING, FRICTION
-
173083464 PLATE, FRICTIONPLATE, FRICTION
-
183083381 NUT, FLANGENUT, FLANGE
-
193087181 PULLEY, STARTERPULLEY, STARTER
-
203087020 HOUSING BLOWERHOUSING BLOWER
-
213084857 KNOCK, PIPEKNOCK, PIPE
-
223084823 BAND, WIREBAND, WIRE
-
233084225 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
243085688 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
252870621 ROPE, STARTER (100 FT.)ROPE, STARTER (100 FT.)
-
265431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
