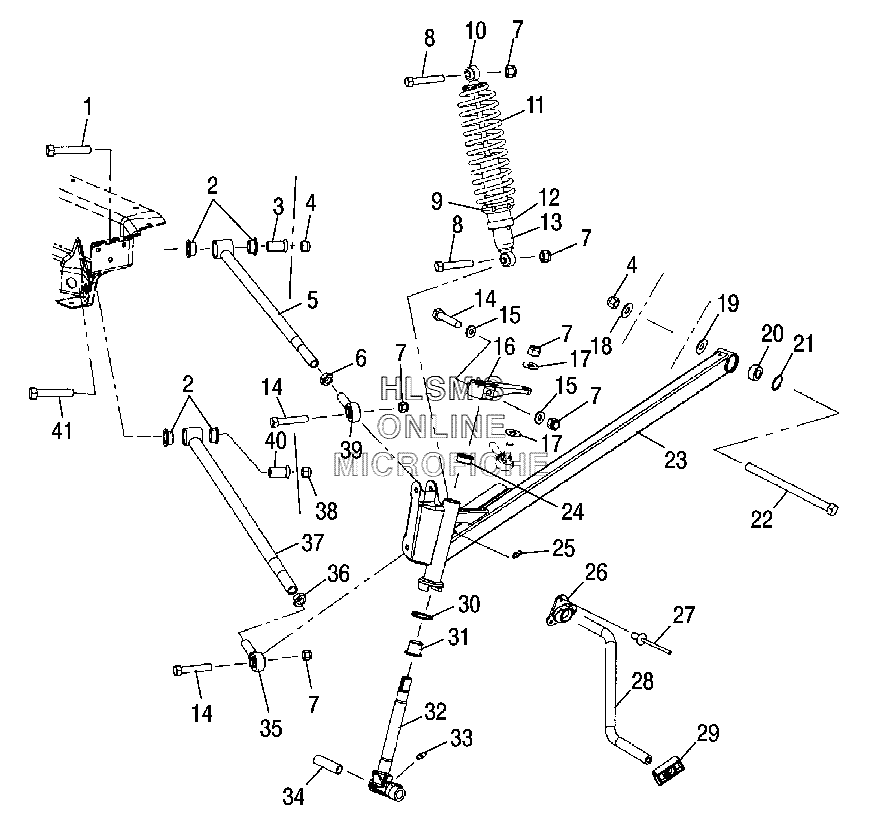

SUSPENSION - FRONT для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDER (.443X.750X1.215)BUSHING SHOULDER (.443X.750X1.215)
-
47547066 NUT NYLOKNUT NYLOK
-
51820679-385 WELD RADIUS ROD (UPPER/CLOUD SILVER)WELD RADIUS ROD (UPPER/CLOUD SILVER)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041551-067 SPRING COMPRESSION, IFS (10.75/100) (BLACK)SPRING COMPRESSION, IFS (10.75/100) (BLACK)
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041932 SHOCK IFS, NITREX (11.09X16.35)SHOCK IFS, NITREX (11.09X16.35)
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
165132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
187555820 WASHER, FLATWASHER, FLAT
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING SPHERICAL, PLASTIC (7/16)BEARING SPHERICAL, PLASTIC (7/16)
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 SCREWSCREW
-
231821165-385 TRAILING ARM ASSY (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM ASSY (CLOUD SILVER) (INCL. 20, 21)
-
231821166-385 TRAILING ARM ASSY (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM ASSY (CLOUD SILVER) (INCL. 20, 21)
-
243573909 BUSHING FLANGEBUSHING FLANGE
-
257080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
265433234 BUSHING TORSION BARBUSHING TORSION BAR
-
277621452 RIVETRIVET
-
285244415-067 BAR, TORSION (1/2) (42.5) (BLACK)BAR, TORSION (1/2) (42.5) (BLACK)
-
295434369 SLIDE TORSION BARSLIDE TORSION BAR
-
307556509 BUSHINGBUSHING
-
313574208 BUSHING, FLANGEDBUSHING, FLANGED
-
326230225-067 SHAFT SPINDLE WITH STEER STOP (BLACK)SHAFT SPINDLE WITH STEER STOP (BLACK)
-
337080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
345010158 BUSHING, PIVOTBUSHING, PIVOT
-
357061060 ROD END, RADIUS (1/2)ROD END, RADIUS (1/2)
-
367542711 NUT JAMNUT JAM
-
371820677-385 WELD RADIUS ROD (LOWER/CLOUD SLVER)WELD RADIUS ROD (LOWER/CLOUD SLVER)
-
387547065 NUT NYLOKNUT NYLOK
-
397061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
405132780 BUSHING SHOULDERBUSHING SHOULDER
-
417512684 BOLTBOLT
