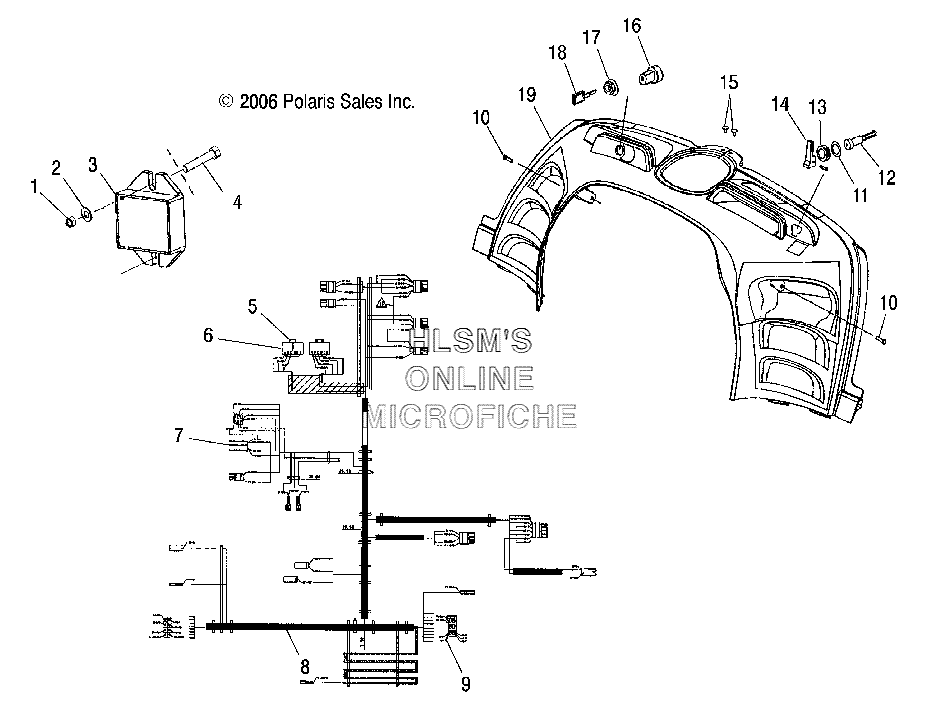

CONSOLE для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
17541925 NUT, NYLOKNUT, NYLOK
-
27555746 WASHERWASHER
-
34010794 REGULATOR AC/DC (14.3V)REGULATOR AC/DC (14.3V)
-
47517263 SCREW, HX/SEMSSCREW, HX/SEMS
-
54010193 HOUSING CONNECTOR, PAC#12186213HOUSING CONNECTOR, PAC#12186213
-
64010192 SOCKET PACKARD #12047767SOCKET PACKARD #12047767
-
74020063 HOUSING, PACKHOUSING, PACK
-
82461148 HARNESS MAINHARNESS MAIN
-
94020057 HOUSINGHOUSING
-
107515199 SCREWSCREW
-
117571610 WASHER LOCKWASHER LOCK
-
127080290 CABLE, CHOKE (INCL. 14)CABLE, CHOKE (INCL. 14)
-
137080229 NUTNUT
-
142200188 CHOKE CONTROL KIT (INCL. PIN, FLIPPER)CHOKE CONTROL KIT (INCL. PIN, FLIPPER)
-
157670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
162200358 IGN.SWITCHKITIGN.SWITCHKIT
-
177547035 NUT, IGNITIONNUT, IGNITION
-
185410611 N/A SEE NOTE:N/A SEE NOTE:
-
195434134 CONSOLECONSOLE
