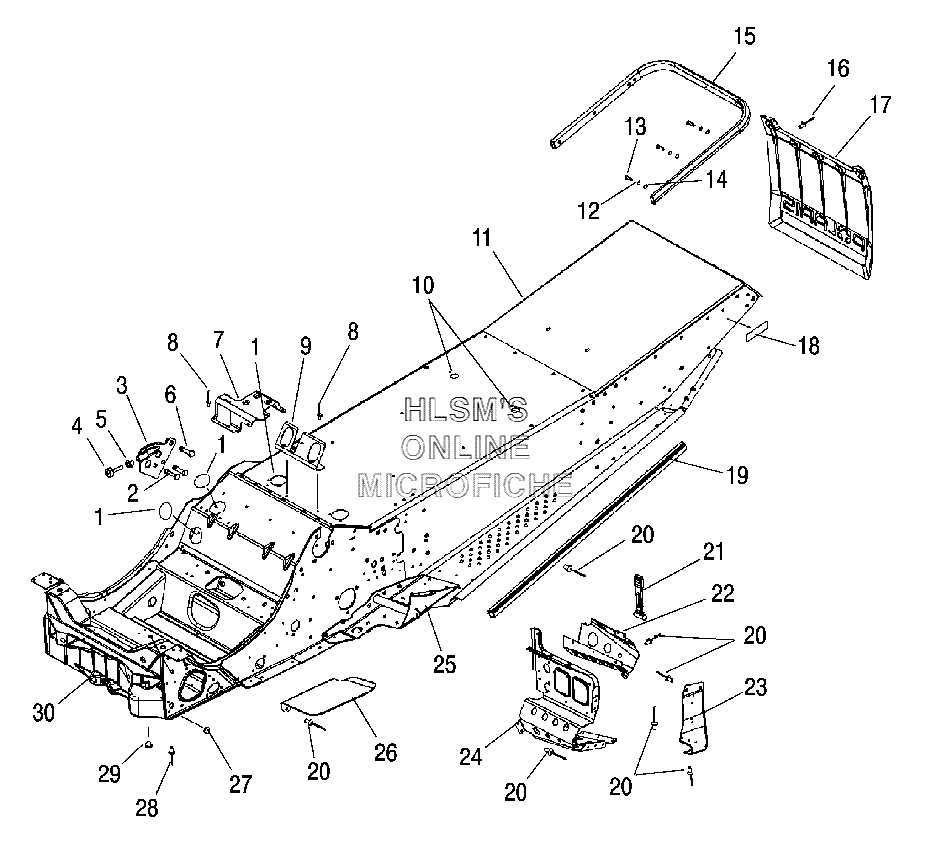

FRAME - CHASSIS для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7080934 CAPLUG 1 (5/8'')
    CAPLUG 1 (5/8'')
  • 2
    7517854 SCREW
    SCREW
  • 3
    1013399 WELD TORQUE STOP
    WELD TORQUE STOP
  • 4
    3021104 STOP, TORQUE COURSE 3/8 16
    STOP, TORQUE COURSE 3/8 16
  • 5
    7542404 NUT
    NUT
  • 6
    7517632 SCREW
    SCREW
  • 7
    5246330 BRACKET OIL TANK/HOSE SUPPORT
    BRACKET OIL TANK/HOSE SUPPORT
  • 8
    7621432 RIVET
    RIVET
  • 9
    5246177 BRKT AIRBOX
    BRKT AIRBOX
  • 10
    7080592 CAPLUG (3/4'')
    CAPLUG (3/4'')
  • 11
    1015493-309 CHASSIS ASSY, (INCL. 25, 30)
    CHASSIS ASSY, (INCL. 25, 30)
  • 12
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 13
    7512232 BOLT
    BOLT
  • 14
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 15
    2632165-309 BUMPER ASSY (REAR)
    BUMPER ASSY (REAR)
  • 16
    7621472 RIVET
    RIVET
  • 17
    5433961-1038 FLAP SNOW, SHORT (BLACK/WHITE)
    FLAP SNOW, SHORT (BLACK/WHITE)
  • 18
    2670133 REFLECTOR ASSY (RED)
    REFLECTOR ASSY (RED)
  • 19
    5245118 BRACE TUNNEL ROLL
    BRACE TUNNEL ROLL
  • 20
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 21
    5433150 STRAP
    STRAP
  • 22
    5245457 MOUNT CONSOLE, TOE CLIP (LEFT)
    MOUNT CONSOLE, TOE CLIP (LEFT)
  • 22
    5245458 MOUNT CONSOLE, TOE CLIP (RIGHT)
    MOUNT CONSOLE, TOE CLIP (RIGHT)
  • 23
    5246310 SUPPORT FOOTREST (LEFT)
    SUPPORT FOOTREST (LEFT)
  • 23
    5246311 SUPPORT FOOTREST (RIGHT)
    SUPPORT FOOTREST (RIGHT)
  • 24
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 24
    5247205 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 25
    2202059 MOUNT KIT, TRAILING ARM (LEFT)
    MOUNT KIT, TRAILING ARM (LEFT)
  • 25
    2202598 MOUNT KIT, TRAILING ARM (RIGHT)
    MOUNT KIT, TRAILING ARM (RIGHT)
  • 26
    5246066 GUARD BELT
    GUARD BELT
  • 27
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 28
    7661130 RIVET
    RIVET
  • 29
    7081076 PLUG HOLE (1.25)
    PLUG HOLE (1.25)
  • 30
    5132292 BULKHEAD (FRONT)
    BULKHEAD (FRONT)
