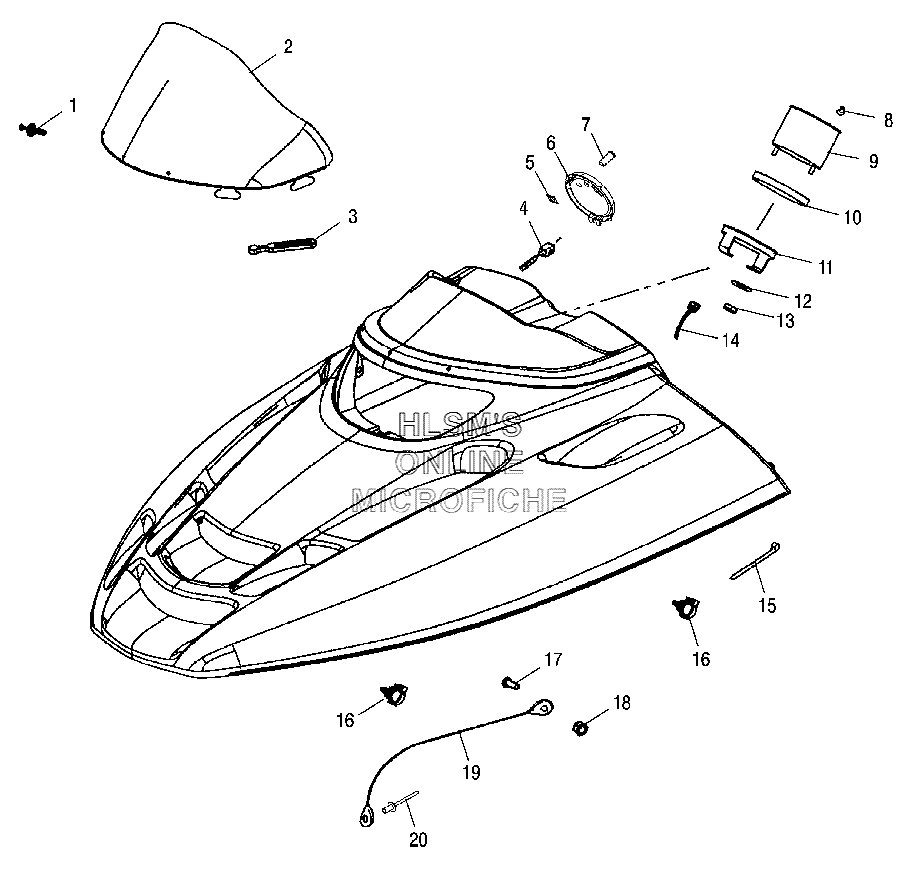

HOOD ASSEMBLY W/ WINDSHIELD для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25436558 WINDSHIELDWINDSHIELD
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42461031 HARNESS JUMPER, REVERSE LIGHTHARNESS JUMPER, REVERSE LIGHT
-
57670133 RETAINER 1/2'' BOLT/LAMPRETAINER 1/2'' BOLT/LAMP
-
65434081 PLUG DASH, 5'' WITH SINGLE 1/2'' HOLEPLUG DASH, 5'' WITH SINGLE 1/2'' HOLE
-
74010687 INDICATOR REVERSE (1/2 DIA)INDICATOR REVERSE (1/2 DIA)
-
83280186 KNOB, TRIP ODOMETER, THD (LEFT)KNOB, TRIP ODOMETER, THD (LEFT)
-
93280411 SPEED ASSY, 5'', 120MPH, W/O AN (WHITE/BLACK)SPEED ASSY, 5'', 120MPH, W/O AN (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
113280210 BRACKET, TACHOMETER/SPEEDOMETER (5'')BRACKET, TACHOMETER/SPEEDOMETER (5'')
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
164010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
177512018 SCREWSCREW
-
187541925 NUT, NYLOKNUT, NYLOK
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCKRIVET, INTERLOCK
