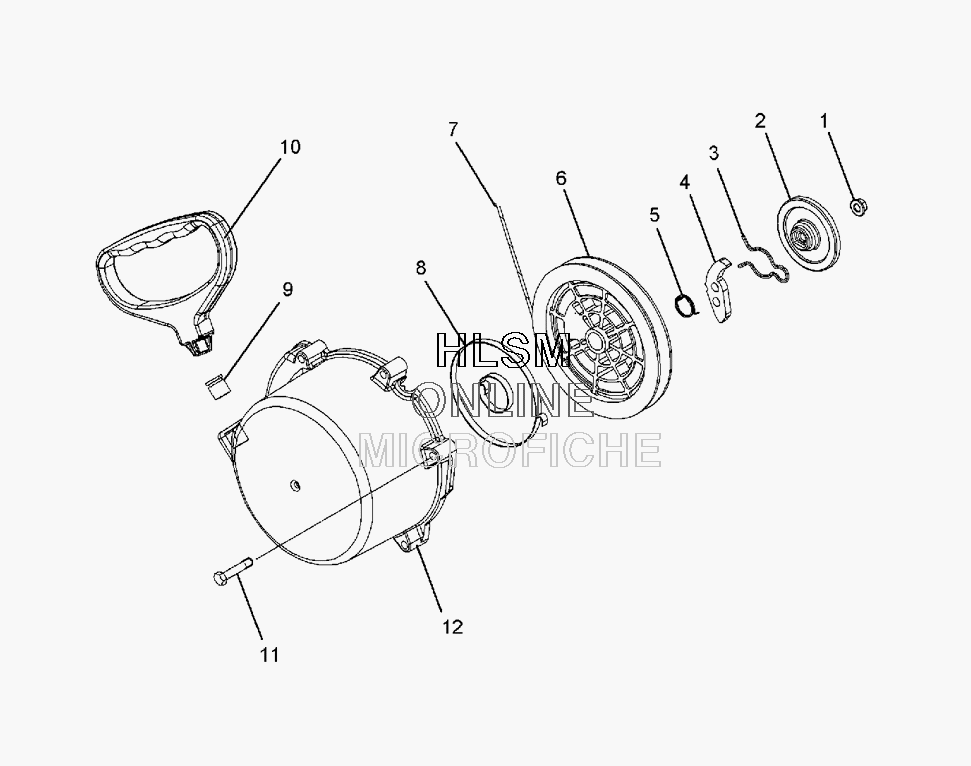

STARTER - RECOIL ASSEMBLY для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска`
-
№АртикулНазвание
-
-1202298 ASM-RECOIL ELECTRIC REV [INCL. 1-8, 12]ASM-RECOIL ELECTRIC REV [INCL. 1-8, 12]
-
13083381 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33083379 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040169 ROPE, STARTERROPE, STARTER
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE-ROPEGUIDE-ROPE
-
105435154-070 HANDLE-RECOIL, BLACKHANDLE-RECOIL, BLACK
-
117516827 SCREWSCREW
-
125630645 ASM-RECOIL ELECTRIC REVASM-RECOIL ELECTRIC REV
