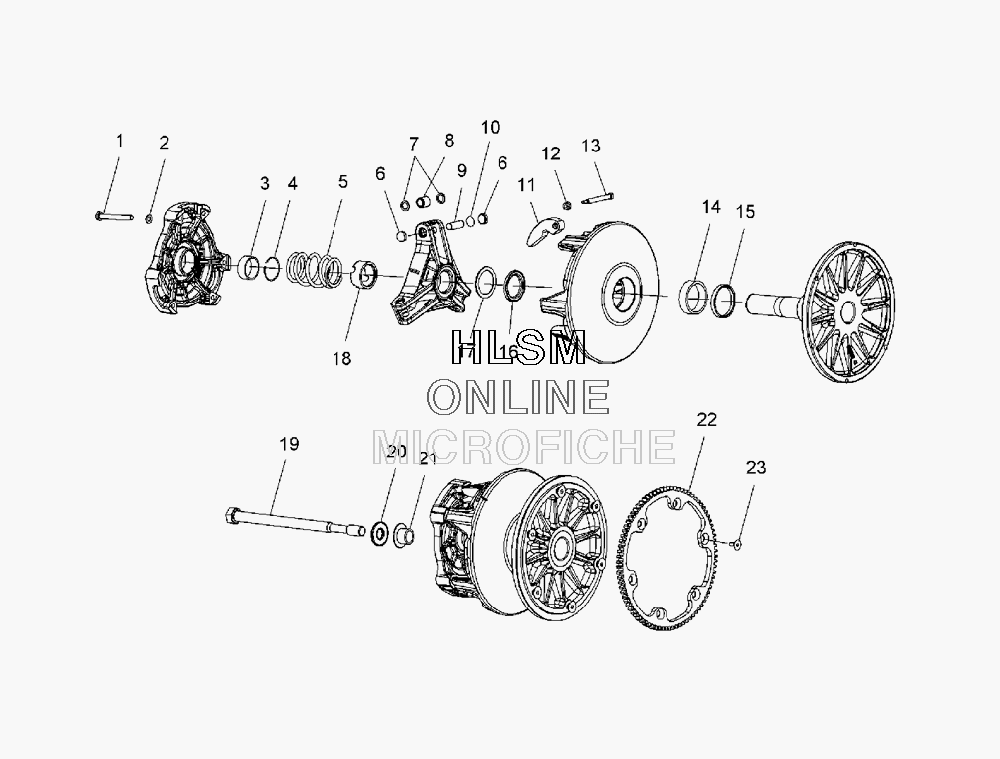

CLUTCH - DRIVE для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1321928 ASM-DRIVE CLUTCH, BASIC, 225 W/B [INCL. 1-4, 6-10, 12-15]
    ASM-DRIVE CLUTCH, BASIC, 225 W/B [INCL. 1-4, 6-10, 12-15]
  • -
    1322661 ASM-DRV CLTCH, BASIC, W/B, ES [INCL. 1-4, 6-10, 12-15, 21, 22]
    ASM-DRV CLTCH, BASIC, W/B, ES [INCL. 1-4, 6-10, 12-15, 21, 22]
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    3576516 BEARING, COVER
    BEARING, COVER
  • 4
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 5
    7042083 SPRING-CLUTCH, BLACK/GREEN
    SPRING-CLUTCH, BLACK/GREEN
  • 6
    5430445 BUTTON, GUIDE, .245''
    BUTTON, GUIDE, .245''
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ASM., ROLLER AND BUSHING(3)
    ASM., ROLLER AND BUSHING(3)
  • 9
    5133079 PIN-ROLLER, 1'', SBN
    PIN-ROLLER, 1'', SBN
  • 10
    2200387 KIT, SHIM, DRIVE CLUTCH
    KIT, SHIM, DRIVE CLUTCH
  • 11
    1321586 WT/BUSH.ASM, 10-62(3)
    WT/BUSH.ASM, 10-62(3)
  • 12
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 13
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 14
    3576502 BEARING, SLEEVE
    BEARING, SLEEVE
  • 15
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 16
    5134018 SPACER, .130, PM
    SPACER, .130, PM
  • 17
    5210754 SPACER, .050
    SPACER, .050
  • 17
    5210753 SPACER, .032
    SPACER, .032
  • 17
    5242981 SPACER, .025
    SPACER, .025
  • 17
    5210752 SPACER, .020
    SPACER, .020
  • 18
    5020425 NUT, JAM
    NUT, JAM
  • 19
    7517501 SCR-M14X1.5X215, HX, 10.9, Y35, R
    SCR-M14X1.5X215, HX, 10.9, Y35, R
  • 20
    7556003 WASHER
    WASHER
  • 21
    5132441 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 22
    2870002 KIT-GEAR, STARTER, RING, CLTCHHCR
    KIT-GEAR, STARTER, RING, CLTCHHCR
  • 23
    7515351 BOLT
    BOLT
