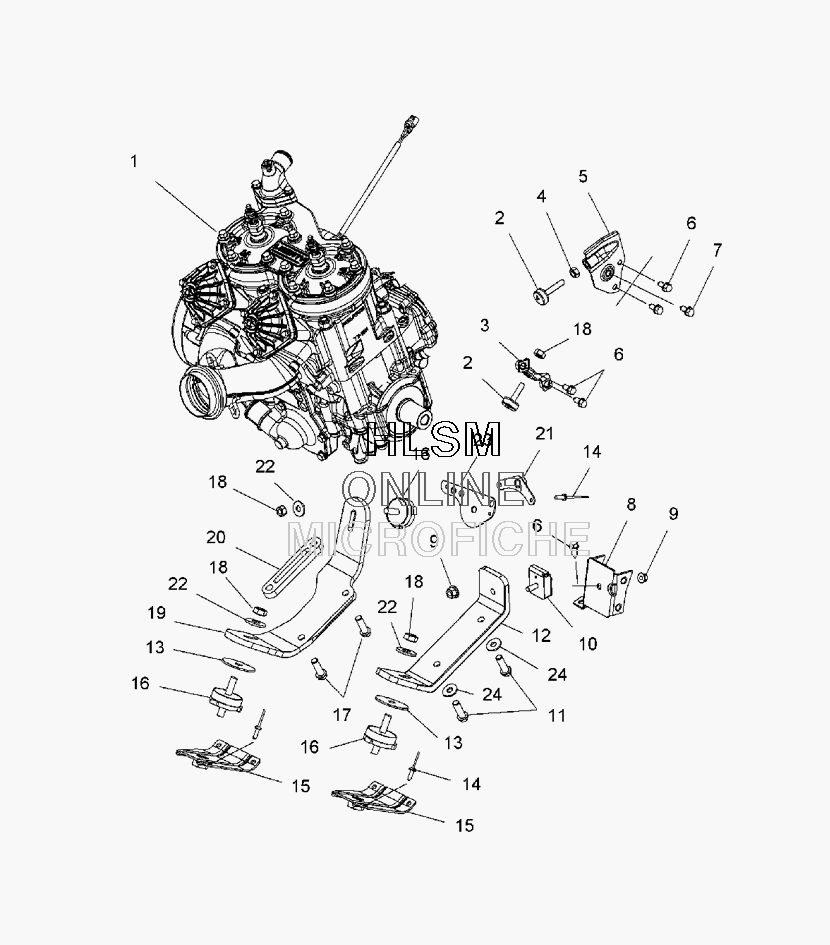

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2203285 ENGINE, SHORT BLOCK ASSY.
    ENGINE, SHORT BLOCK ASSY.
  • 2
    3021354 STOP-TORQUE, COURSE, 3/8-16 1.50
    STOP-TORQUE, COURSE, 3/8-16 1.50
  • 3
    1015728 WELD-TORQUE STOP
    WELD-TORQUE STOP
  • 4
    7542404 NUT
    NUT
  • 5
    1015749 WELD-TORQUE STOP
    WELD-TORQUE STOP
  • 6
    7517854 SCR-3/8-16X1-P30-SPEC-Y
    SCR-3/8-16X1-P30-SPEC-Y
  • 7
    7517632 SCREW
    SCREW
  • 8
    1015228 WELD-BRKT ENG MNT
    WELD-BRKT ENG MNT
  • 9
    7547180 NUT-FLANGED, 3/8-16 NYLON-Z
    NUT-FLANGED, 3/8-16 NYLON-Z
  • 10
    3021206 MOUNT-ENGINE, 3/8-16, RECT
    MOUNT-ENGINE, 3/8-16, RECT
  • 11
    7512539 BOLT
    BOLT
  • 12
    5135200 STRAP-ENGINE MOUNT, LEFT HAND
    STRAP-ENGINE MOUNT, LEFT HAND
  • 13
    7555915 WASHER, FLAT
    WASHER, FLAT
  • 14
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 15
    1015235 WELD-NUT PLATE, FRONT
    WELD-NUT PLATE, FRONT
  • 16
    3021717 ISOLATOR-RUBBER
    ISOLATOR-RUBBER
  • 17
    7518521 SCR-7/16-14X1-3/4, HX/FL, Y
    SCR-7/16-14X1-3/4, HX/FL, Y
  • 18
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 19
    5135518 MOUNT-ENGINE, RIGHT HAND, MACH
    MOUNT-ENGINE, RIGHT HAND, MACH
  • 20
    5135153 SPACER-ENGINE MOUNT .50
    SPACER-ENGINE MOUNT .50
  • 21
    1015202 WELD-NUT PLATE, REAR
    WELD-NUT PLATE, REAR
  • 22
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 23
    5250173 SUPPORT-ENG MNT RR, MAG
    SUPPORT-ENG MNT RR, MAG
  • 24
    7553101 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
