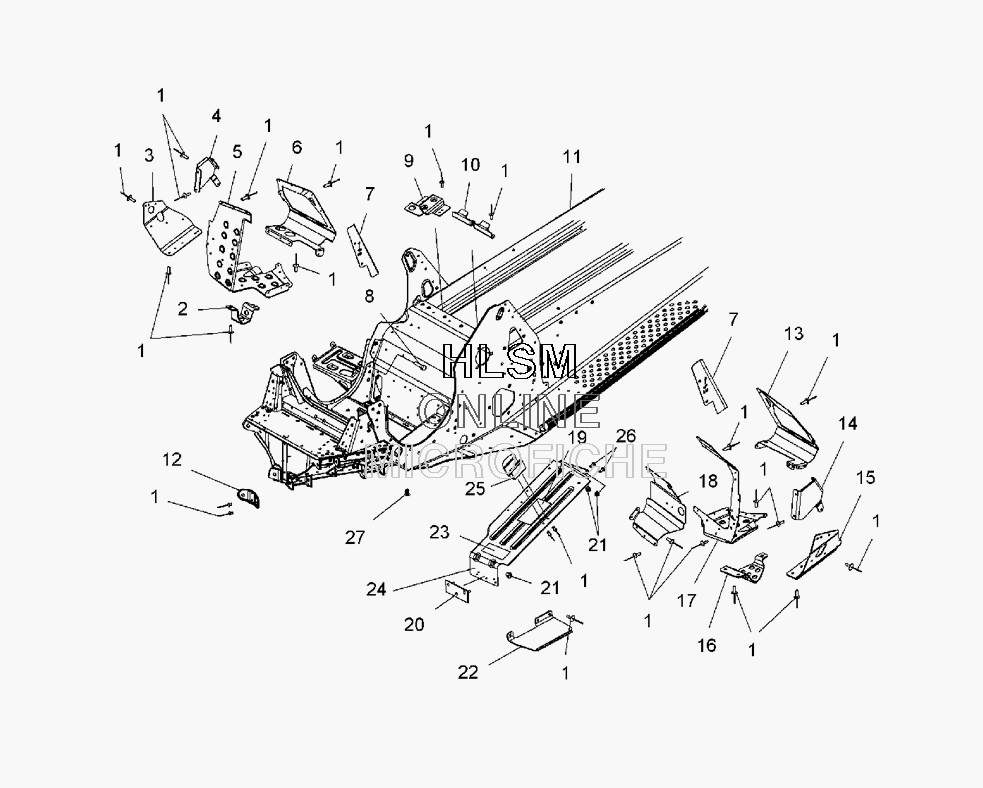

CHASSIS - FOOTRESTS для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5248945 LEG-SUPPORT, RIGHT HAND
    LEG-SUPPORT, RIGHT HAND
  • 3
    5248808 SUPPORT-FOOTREST, LOWER, RIGHT HAND
    SUPPORT-FOOTREST, LOWER, RIGHT HAND
  • 4
    5248402 SUPPORT-FOOTREST, BUMPER, RIGHT HAND
    SUPPORT-FOOTREST, BUMPER, RIGHT HAND
  • 5
    1015670 ASM-FOOTREST W/STUD, RIGHT HAND
    ASM-FOOTREST W/STUD, RIGHT HAND
  • 6
    5248477 TOECLIP-RIGHT HAND
    TOECLIP-RIGHT HAND
  • 7
    5249677 CLIP-BULKHEAD SIDE, LEFT HAND
    CLIP-BULKHEAD SIDE, LEFT HAND
  • 7
    5250044 CLIP-BULKHEAD SIDE, RIGHT HAND
    CLIP-BULKHEAD SIDE, RIGHT HAND
  • 8
    7517810 SCR, 5/16X24X3/4 TRXPNHD
    SCR, 5/16X24X3/4 TRXPNHD
  • 9
    5249094 BRKT-OIL BOTTLE, LOWER
    BRKT-OIL BOTTLE, LOWER
  • 10
    5249666 BRKT-AIRBOX, LOWER
    BRKT-AIRBOX, LOWER
  • 11
    1015528-309 ASM-CHASSIS RC 6, 144, NAT
    ASM-CHASSIS RC 6, 144, NAT
  • 12
    5247372 BRACE-FRT LOWER A-ARM
    BRACE-FRT LOWER A-ARM
  • 13
    5248476 TOECLIP-LEFT HAND
    TOECLIP-LEFT HAND
  • 14
    5248401 SUPPORT-FOOTREST, BUMPER, LEFT HAND
    SUPPORT-FOOTREST, BUMPER, LEFT HAND
  • 15
    5248807 SUPPORT-FOOTREST, LOWER, LEFT HAND
    SUPPORT-FOOTREST, LOWER, LEFT HAND
  • 16
    5248403 LEG-SUPPORT, LEFT HAND
    LEG-SUPPORT, LEFT HAND
  • 17
    1015583 ASM-FOOTREST W/STUD, LEFT HAND
    ASM-FOOTREST W/STUD, LEFT HAND
  • 18
    5247420 BRACKET, CLUTCH-GUARD
    BRACKET, CLUTCH-GUARD
  • 19
    7173298 DECAL-BELT REMOVAL
    DECAL-BELT REMOVAL
  • 20
    1015587 ASM-BACKER, CLUTCH GUARD W/STUD
    ASM-BACKER, CLUTCH GUARD W/STUD
  • 21
    7518287 NUT-#10-24 NYLOK INSERT
    NUT-#10-24 NYLOK INSERT
  • 22
    5249757 GUARD-BELT
    GUARD-BELT
  • 23
    7172672 DECAL-ENGINE AND CLUTCH
    DECAL-ENGINE AND CLUTCH
  • 24
    1015659 ASM-CLUTCH GUARD/CLIP/DECALS
    ASM-CLUTCH GUARD/CLIP/DECALS
  • 25
    5222769 CLIP, BELT RETAINER
    CLIP, BELT RETAINER
  • 26
    7518281 SCR-10-24X5/8 TORX TH MS STL Y
    SCR-10-24X5/8 TORX TH MS STL Y
  • 27
    7670067 CLIP, DART
    CLIP, DART
