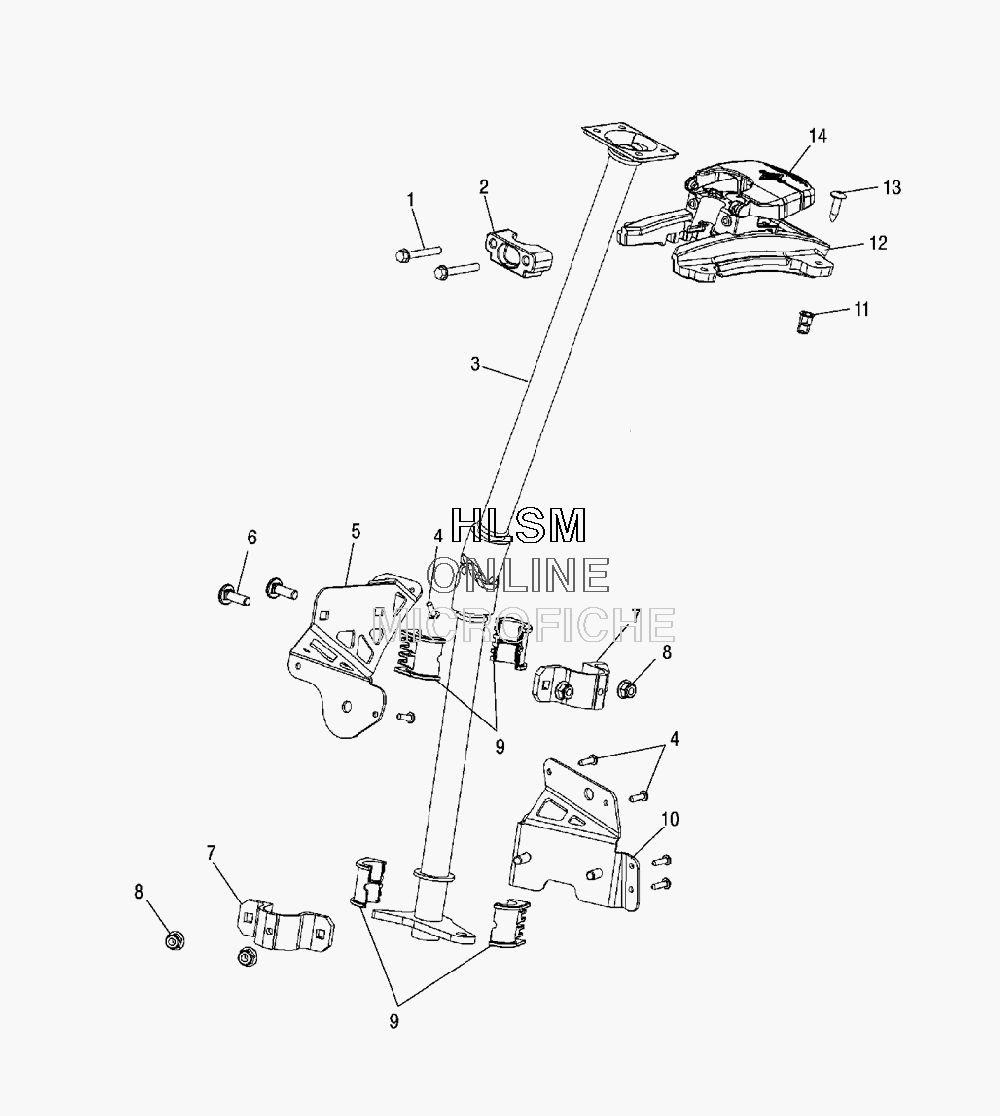

STEERING POST ASSEMBLY для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7512093 SCREW
    SCREW
  • 2
    5435952 BLOCK-STEERING POST, FRT HALF
    BLOCK-STEERING POST, FRT HALF
  • 3
    1822850-067 WELD-STEERING POST, BLACK
    WELD-STEERING POST, BLACK
  • 4
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 5
    5250476 BRACKET-MID STEERING POST
    BRACKET-MID STEERING POST
  • 6
    7517579 BOLT-CARR 5/16-X1''GR5 Y LO
    BOLT-CARR 5/16-X1''GR5 Y LO
  • 7
    5133648 BRKT-STEERING POST, MOD
    BRKT-STEERING POST, MOD
  • 8
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 9
    5432785 BUSHING
    BUSHING
  • 10
    1822856 WELD-BRACKET, LOWER STEER POST
    WELD-BRACKET, LOWER STEER POST
  • 11
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 12
    1822863 ASM-BLOCK, STEERING ADJ [INCL. 14]
    ASM-BLOCK, STEERING ADJ [INCL. 14]
  • 13
    7518520 SCR-1/4-20X1.0 TR/TX, P80, GR5, Y
    SCR-1/4-20X1.0 TR/TX, P80, GR5, Y
  • 14
    5435955 LEVER-ADJ STEERING
    LEVER-ADJ STEERING
