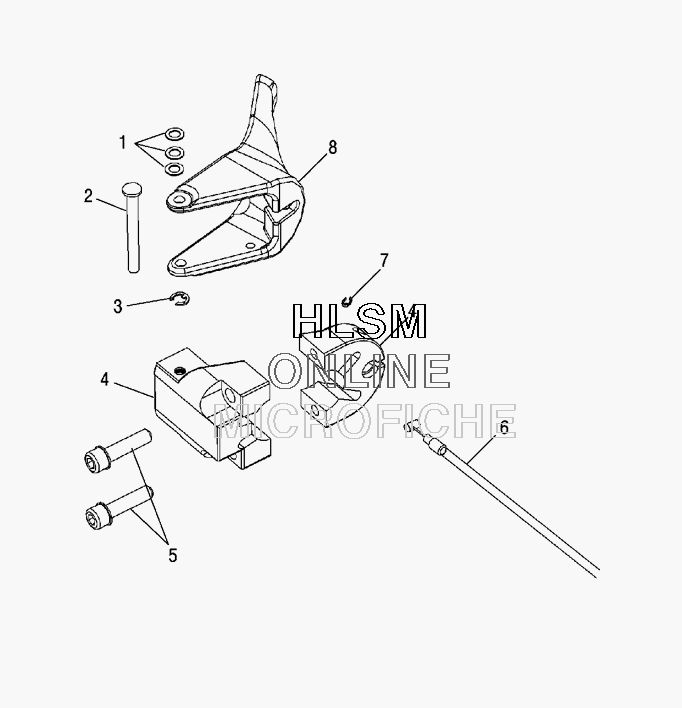

THROTTLE ASSEMBLY для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7555730 WASHER
    WASHER
  • 2
    7661624 PIN-RETAINING
    PIN-RETAINING
  • 3
    7710401 RING, RETAINING
    RING, RETAINING
  • 4
    5133636 BLOCK-THROTTLE, REAR
    BLOCK-THROTTLE, REAR
  • 4
    5133639 BLOCK-THROTTLE, FRONT
    BLOCK-THROTTLE, FRONT
  • 5
    7512290 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 6
    7081199 CABLE-THROTTLE
    CABLE-THROTTLE
  • 7
    7710503 RING, RETAINING
    RING, RETAINING
  • 8
    5432970 THROTTLE, LEVER, 35.5MM
    THROTTLE, LEVER, 35.5MM
  • 8
    2010171 ASM., LEVER, HTR, HI/LO 35.5MM
    ASM., LEVER, HTR, HI/LO 35.5MM
  • 8
    2010220 ASM-THROTTLE CONTROL, 34MM, ALUM
    ASM-THROTTLE CONTROL, 34MM, ALUM
