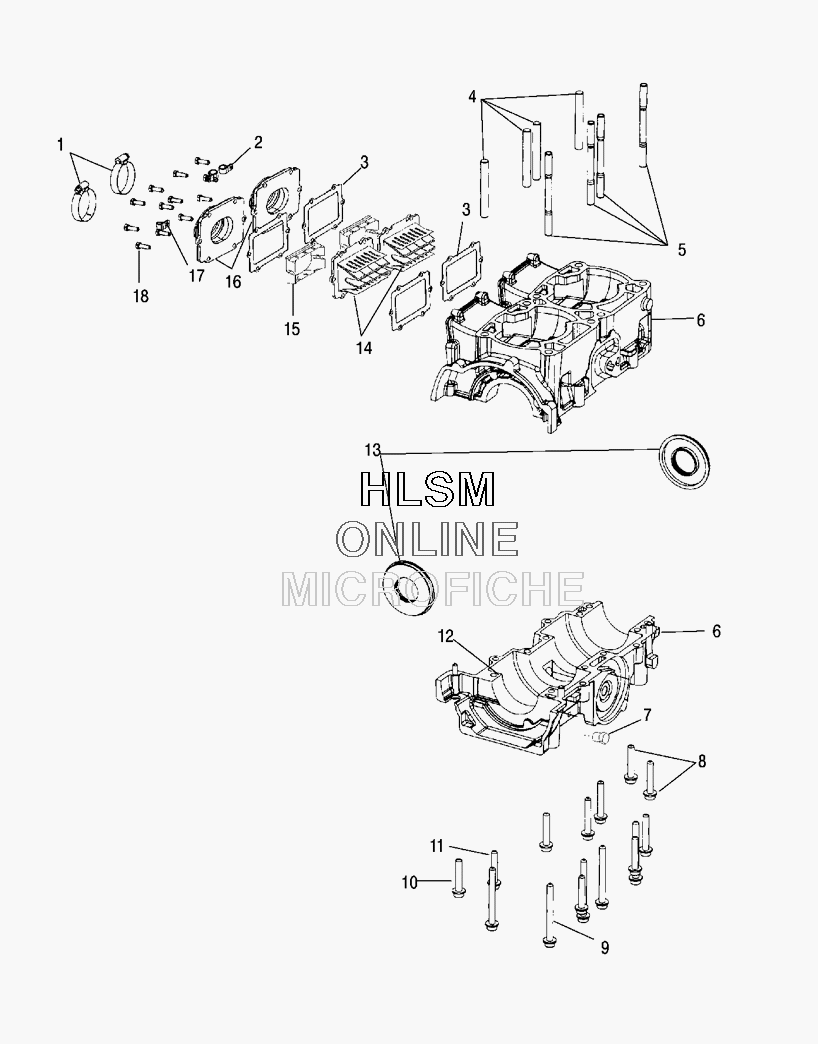

CRANKCASE ASSEMBLY для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS,
    CLAMP, HOSE, SS,
  • 2
    7080717 CLAMP, WIRE/TUBE
    CLAMP, WIRE/TUBE
  • 3
    5813068 GASKET-REED VALVE
    GASKET-REED VALVE
  • 4
    5132196 STUD, CYL 81MM
    STUD, CYL 81MM
  • 5
    5132197 STUD, CYL 118MM
    STUD, CYL 118MM
  • 6
    2202948 KIT-CRANKCASE SNO 1202963 (INCL. 4, 5, 7-12)
    KIT-CRANKCASE SNO 1202963 (INCL. 4, 5, 7-12)
  • 7
    7051529 PLUG
    PLUG
  • 8
    7517785 BOLT, M8X1.25X55
    BOLT, M8X1.25X55
  • 9
    7517784 BOLT, M8X1.25X80
    BOLT, M8X1.25X80
  • 10
    7516825 SCREW
    SCREW
  • 11
    7517786 BOLT, M8X1.25X45
    BOLT, M8X1.25X45
  • 12
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 13
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 14
    1203314 ASM-REED VALVE, 4-PEDAL, LRG
    ASM-REED VALVE, 4-PEDAL, LRG
  • 14
    2203177 KIT-REED PETAL RELACE LG REED
    KIT-REED PETAL RELACE LG REED
  • 15
    5436599 STUFFER-REED, V-FORCE, LRG
    STUFFER-REED, V-FORCE, LRG
  • 16
    1203217 ADAPTER-CARB
    ADAPTER-CARB
  • 17
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    7517398 SCREW,
    SCREW,
