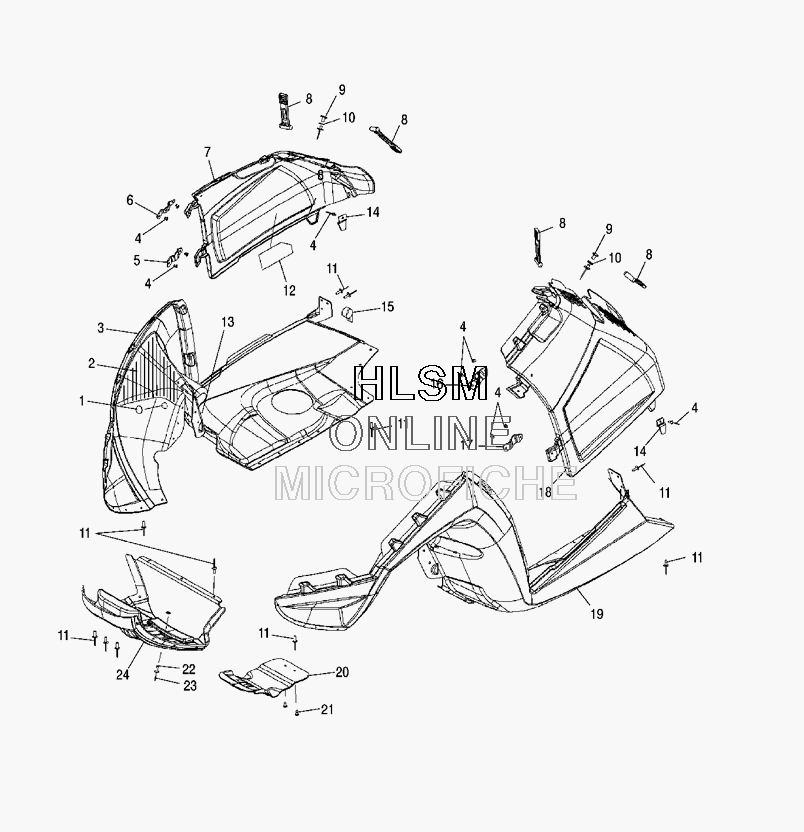

NOSEPAN AND SIDEPANELS для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска
-
№АртикулНазвание
-
15410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
25812838 FOIL-FENDER, LOWER, RIGHT HANDFOIL-FENDER, LOWER, RIGHT HAND
-
32633319-070 ASM-FENDER, W/FOIL, RIGHT HAND, BLACK (INCL. 4-6, 8-12)ASM-FENDER, W/FOIL, RIGHT HAND, BLACK (INCL. 4-6, 8-12)
-
47621472 RIVETRIVET
-
55248923 SUPPORT-SIDE PANEL, LOWER, RIGHT HANDSUPPORT-SIDE PANEL, LOWER, RIGHT HAND
-
65249036 SUPPORT-SIDE PANEL, UPPER, RIGHT HANDSUPPORT-SIDE PANEL, UPPER, RIGHT HAND
-
72633288-070 ASM-SIDE PANEL, RIGHT HAND, BLACKASM-SIDE PANEL, RIGHT HAND, BLACK
-
85433150 STRAPSTRAP
-
91015421 ASM-RIVET/RETAINERASM-RIVET/RETAINER
-
107555904 WASHERWASHER
-
117621467 RIVET, BLINDRIVET, BLIND
-
125812839 FOIL-SIDE PANEL, RIGHT HANDFOIL-SIDE PANEL, RIGHT HAND
-
135812837 FOIL-FENDER, UPPER, RIGHT HANDFOIL-FENDER, UPPER, RIGHT HAND
-
145249245 BRKT-SIDE PANEL TABBRKT-SIDE PANEL TAB
-
157080372 CLAMP, RETAINERCLAMP, RETAINER
-
165249035 SUPPORT-SIDE PANEL, UPPER, LEFT HANDSUPPORT-SIDE PANEL, UPPER, LEFT HAND
-
175248922 SUPPORT-SIDE PANEL, LOWER, LEFT HANDSUPPORT-SIDE PANEL, LOWER, LEFT HAND
-
182633287-070 ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 8, 9, 16, 17, 18)ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 8, 9, 16, 17, 18)
-
195436889-070 FENDER-LEFT HAND, BLACKFENDER-LEFT HAND, BLACK
-
205436882-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
217518352 SCR-1/4X20X3/4, TR/TX, NYLONSCR-1/4X20X3/4, TR/TX, NYLON
-
227555904 WASHERWASHER
-
237621418 RIVET, POPRIVET, POP
-
245436358-070 NOSEPAN-BSC, RACE, BLACKNOSEPAN-BSC, RACE, BLACK
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/FOOTRESTS
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ELECTRICAL COMPONENTS MOUNTING
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY
- HARNESS W/ ACCESSORIES
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD MOUNTING W/ FRONT BUMPER
- • NOSEPAN AND SIDEPANELS
- PISTON AND CRANKSHAFT
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK
- SUSPENSION - WALKER EVANS - REAR TRACK SHOCK
- SUSPENSION - WALKER EVANS - SHOCK IFS
- THROTTLE ASSEMBLY
- TOOL KIT
- WATER PUMP/OIL PUMP
